Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea
Tianjin port, China
10-15 days after receiving the advanced payment

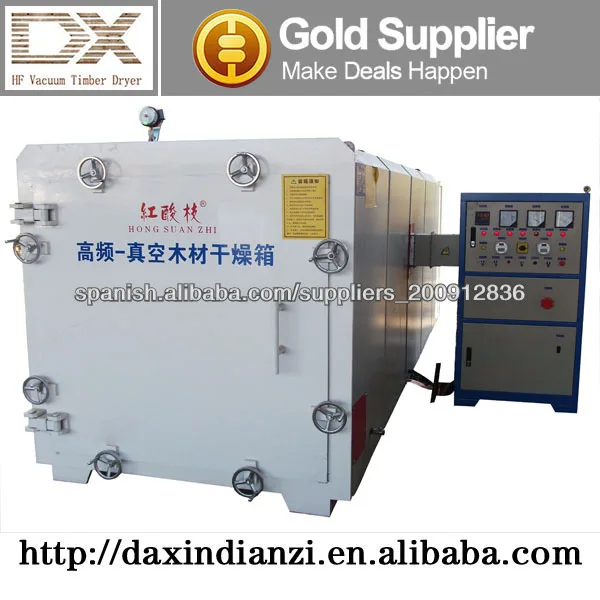

HIGH FREQUENCY VACUUM WOOD DRYER SYSTEM (GZ-10.0-Ⅲ-DX)
1 High frequency generator heating principle
HF generator is the core of dielectric heating equipment. It applies three phase alternating current to form frequency oscillation electric field .
Under this high frequency electric field, the molecules like water .glue or PVC will be polarized and form two poles.
The electric field will change pole rapidly meanwhile all the molecules will also move in very high speed.
The friction and impact among molecules can make material get heated in short time. Then the water will be vaporized, glue becomes solid and PVC gets softened rapidly.
High frequency heating advantage:
1) Fast speed and high efficiency.
High frequency heating is 3-5 times faster than hot steam. So it can save the power and improve the efficiency. 2) Uniform heating. High frequency heating is dielectric heating.it forms electric filed with positive and negative pole. HF power can penetrate material deeply.
The water or glue molecules in the material will get heated themselves by friction among molecules. In this way, they get heated from the core material, much more uniformly. 3) Good applicability.High frequency heating can heating can heat kinds of thickness material, such as 2-3 mm veneer surface lamination.1000mm thick engineered wood gluing. And different frequency can meet different material requirement. 4) Strong controllability. High frequency heating is easy control and suitable for automatic production. 5) Environment friendly.HF heating does not need boiler;no dust,no fog,no pollution.
2 High frequency vacuum wood dryer specification
Out Dimension (mm)
Inside dimension (mm)

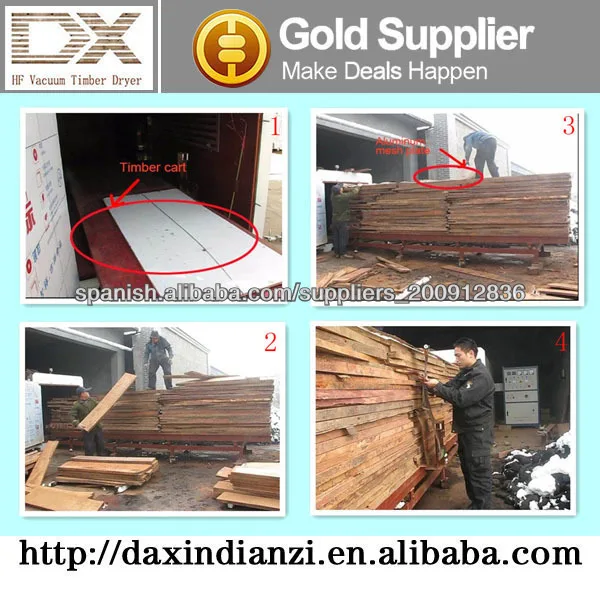

Timber cart (mm)
Max Length of Wood
Vacuum kiln Drying temperature: ≤90°C
From 90% to 6% ,could be setting as per-request
Apply for all hardwood species
We have 3-12 CBM dryer, If you are interested in other sizes, pls click the link below:
