Quick Details

  • Condition: New
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: DX
  • Model Number: GZ-8.0III-DX
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Type:: Wood drying machinery
  • Working principle:: hf heating and vacuum dehydrating
  • Power:: 30 KW
  • Heating mode:: Elelctrical medium
  • Capacity:: 8 m3. optional:3,4,6,10m3
  • Control:: Full automatic
  • Advantages:: no cracking,no bending,high frequency,etc
  • Features:: Evenly heating,cost effective, full automatic
  • Certificate:: ISO 9001:2000
  • Guarantee:: One year

Packaging & Delivery

Packaging Details plastic and foam packing,fixed by wood pallet, shipped in container by sea for wood dryer
Delivery Time within 20 days for wood dryer

Specifications

Wood / Lumber / Timber Dry Kiln Machine(GZ-8.0-III-DX)
1.high outturn percentage 2.Full-automatic

Wood / Lumber / Timber Dry Kiln Machine(GZ-8.0-III-DX)



GZ-8.0-III-DX HIGH FREQUENCY-VACUUM WOOD DRYER is a new generation wood drying equipment. This machine is the result of design combining high frequency medium heating technology and vacuum cryogenic dehydration technology, greatly reduced drying time. This equipment adopts PLC programming control, drying chamber equipped with 80mm thick thermal insulating layer and inside & outside two sets stainless steel condensation system, it is more convenient to choose lumber drying procedure and applicable for drying all kinds of wood. The main control valve adopts pneumatic valve technology, this technology have advantages like steady, long serve life and low failure rate. The main advantage of our wood drying equipment: short drying cycle, super quality, cost effective and eco-friendly.

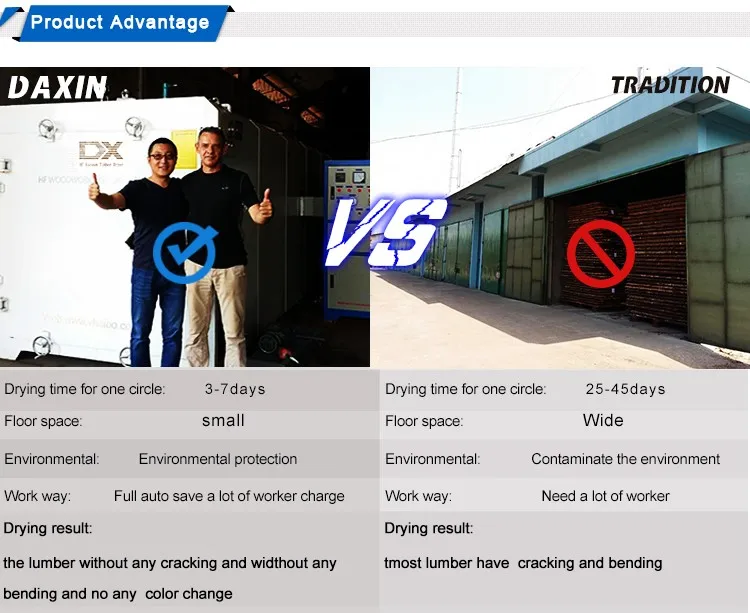

Advantages of high frequency vacuum wood machines:



1: Short drying cycle--- HF kiln dryer greatly reduced drying time It does not require heat conduction,  inside and outside of wood timber is heated at same time; During the heating process, there is staged temprature difference between inside and outside of wood timber, The vapor pressure difference caused by this surface and the interior temperature difference makes the interior moisture to move towards the surface.  for this reason, the drying time is much more shorter than traditional ways



2: Good drying effect--- hence the wood is drying under vacuum condition, this will decrease the drying tempreture. Wood drying at low temperature highly humid environment enable complete free from cracks & distortions as well as retain its hue & luster. Under connstant evenly heating there is not any cracking or bendind appeared. The moisture content of wood will be maintain a certain percent steadily after drying by hf kiln.



3: Easy Operation--- HF kiln dryer is fully automatic, you just push the cart loaded with wood into the tank, close the tank, and press the start button. Operation is automatically performed in accordance to the preset program



4: Energy Saving--- The input power is much lower than other drying machine



5: Cost-Effective---  Low input and high out put



Specification of high frequency vacuum wood machines:



operating principle: HF medium heating plus vacuum dewatering
Size: 7605*2016*2006mm

Power input40 kw
Drying medium: direct heating
Heating mode: electrical medium
Application: drying all kinds of wood
Temperature range: subject to request
Water evaporation: 220kg/24hours (according to follow conditions: density of wood 0.75, output power 30KW, temperature of condenser:30 °C , vacuum degree— 0.08MPa)

Types: manual, automatic
Capacity8 m3,  ----------optional: 3 m3, 4 m3, 6 m3, 10 m



ModelPowerEffective VolumeApplicationsMax Length of WoodOuter Size
GZ-3.0III-DX10KW3m3all kinds of wood3m4330*1716*1806mm
GZ-4.0III-DX10KW4m3all kinds of wood4m5330*1716*1806mm
GZ-6.0III-DX20KW6m3all kinds of wood5m6465*1916*2006mm
GZ-8.0III-DX30KW8m3all kinds of wood6m7605*2016*2006mm
GZ-10.0III-DX40KW10m3all kinds of wood6m7605*2116*2106mm



Contact with us today for more details!!!










Product Description

We have 3-12 CBM dryer, If you are interested in other sizes, pls click the link below:

HF vacuum dryer 3CBM          HF vacuum dryer 4CBM              HF vacuum dryer 6CBM



HF vacuum dryer 8CBM         HF vacuum dryer 10CBM             HF vacuum dryer 12CBM



Besides, the other best-selling product High Frequency Generator
