Quick Details

  • Condition: New
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: DX
  • Model Number: GZ-10.0III-DX
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Specification: 3-10cbm
  • application: woodoworking drying machine
  • vacuum kiln volume: 10.8 cubic meter
  • kiln size: 7500*2140*2240 mm
  • high frequency power: 40-50 KW
  • Advantage: new drying method,high frequency heating
  • weight: 9500 KGS
  • Payment: T\T,L\C at sight

Packaging & Delivery

Packaging Details plastic foam
Delivery Time 15-20days

Specifications

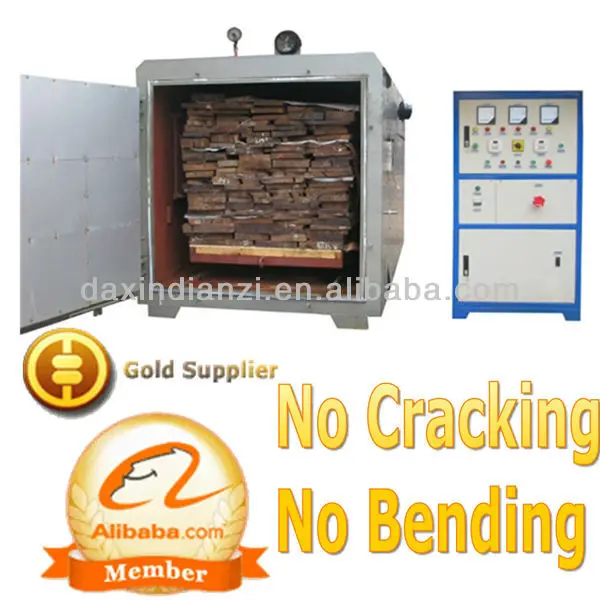

Pterocarpus santalinus wood dryer
1)Effective capacity: 3-10cbm
2)No cracking, no bending
3)for hard wood

woodworking machinery  Pterocarpus santalinus wood dryer
1. It is new drying method. (Dielectric heating)
Steam and normal vacuum dryer(hot plate) is conductive heating.
They dry the wood little by little from outside to inside.
High frequency is dielectric heating. HF wave can penetrate the thick wood
And dry it uniformly. Even the core of wood temperature is heater than surface.
Vacuum condition: It is minus pressure, safe.
The wood moisture can vaporized in low temperature.
Then vapor will be pump out automatically.
So HF vacuum dryer is faster, more uniform, no bending and no crack caused by non-uniform.
2. No need boiler; No need hot plate (no hot water)
The power supply of HF vacuum dryer is electricity.
It does not need boiler, save the human resource and protect the Environment.
3. Worm killing.
High frequency can kill the worm and bacteria.
It does not need special chemical treatment.



Model

GZ-3.0III-DX

GZ-4.0III-DX

GZ-6.0III-DX

GZ-8.0III-DX

GZ-10.0III-DX

GZ-12.0III-DX

Capacity

3.3 CBM

4.4 CBM

6.6 CBM

8.64 CBM

10.08 CBM

12.48 CBM

Out Dimension (mm)

L4400

W1716

H1806

L5400

W1716

H1806

L6500

W1916

H2006

L7600

W2000

H2090

L8600

W2000

H2090

L9600

W2000

H2090

Inside dimension (mm)

L3600

W1500

H1500

L4600

W1500

H1500

L5700

W1700

H1700

L6800

W1750

H1750

L7800

W1750

H1750

L8800

W1750

H1750

Timber cart (mm)

L3000

W1100

H1000

L4000

W1000

H1000

L5000

W1200

H1000

L6000

W1200

H1200

L7000

W1200

H1200

L8000

W1300

H1200

Max Length of Wood

3m

4m

5m

6m

7m

8m

High Frequency

6.78MHz

6.78MHz

6.78MHz

6.78MHz

6.78MHz

6.78MHz

Input Power

15KVA

15KVA

30KVA

40KVA

50KVA

50KVA

Oscillation power

10KW

10KW

20KW

30KW

40KW

40KW

Actual application power

6KW

6KW

10KW

20KW

25KW

30KW

Vacuum pressure

-0.093MPa

-0.093MPa

-0.093MPa

-0.093MPa

-0.093MPa

-0.093MPa

Weight(kg)

4000

5000

7000

9000

11000

13000

Packing

20GP

40GP

40HQ

40HQ

40HQ

40HQ

Kiln Temp

Vacuum kiln Drying temperature: 90°C

Moisture

From 90% to 6% ,could be setting as per-request

Drying time

2-7 days

Application

Apply for all hardwood species
