Hardwood Firewood lumber drying machine/drying kiln(DX-10.0III-DX)

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 51 - 100 People
  • Factory Size: 1,000-3,000 square meters
  • No. of Production Lines: 3
Research & Design >
  • No.of R&D Engineer: 5 - 10 People
  • Production Certification: 1
  • Trademark: 1
Trade Capacity >
  • Export Mode: Using an agent
  • Export Percentage: 41% - 50%
  • No. of Employees inTrade Department: 3-5 People
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hebei, China (Mainland)
Brand Name:
DaXin
Model Number:
DX-10.0III-DX
Capacity:
10.08 cubic meter
Timber Cart:
7000*1200*1200mm
Inside dimension:
7800*1750*1750mm
outside dimension:
8600*2000*2090mm
Total input power:
50KVA
Output power:
40KW
Drying medium:
Direct heat
Heating mode:
Dielectric type
Applicable materials:
All kinds of wood
Temperature range:
Depending on the technology needs
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
7 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea for wood dryer
Port
Tianjin port, China
Lead Time :
10-15 days after receiving the advanced payment for wood dryer

Specifications

Hardwood Firewood lumber drying machine/drying kiln(DX-10.0III-DX)1.high outturn percentage 2.Full automatic

 Hardwood Firewood lumber drying machine/drying kiln(DX-10.0III-DX)



Two main parts of the machine

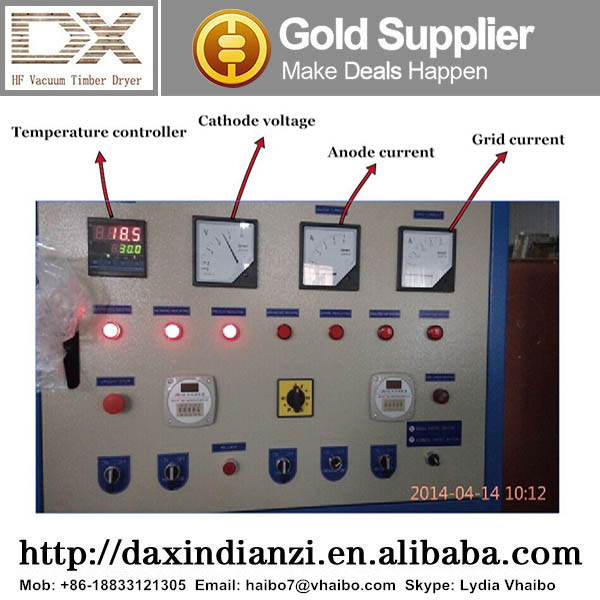

1) HIGH FREQUENCY GENERATOR



1- Power: ~480 50HZ Three-phase four-wire system

2-Input power: 50KVA

3-Power adjustment: manual Five grade power to adjustable

4-Filament voltage: 10V

5-Electronic tube: FU924

6-Central oscillation frequency: 6.78 MHZ

7-Oscillation power: 40 KW

8-Overall efficiency: under a good match state ≥50%

9-Load form: flat capacitance

10-Output adjustment mode: manual vacuum variable capacitive

11-Output form : unilateral output

12Safety protection: high pressure over current protection,main transformer overload protection, loop short circuit and spark protection

13Range of application: board jointing,wood bending,wood floor,integrated timber,science and technology wood ,wood drying etc

14-Technical conditions: GB5959·1-86 GB5959·9-86 GB/T10067·5-93 prescribed technical conditions

15-Electromagnetic radiation and protection: GB8702-88 standard

16-Work environment: humidity≤85% temperature+10~35°C

17-Equipment Size: L1050mm×W1450mm×H1700mm   Weight: 550 KGS

18Note:Keep high frequency generator away from dust environment, flammable, explosive&corrosive gases, and sources of quake and impact.

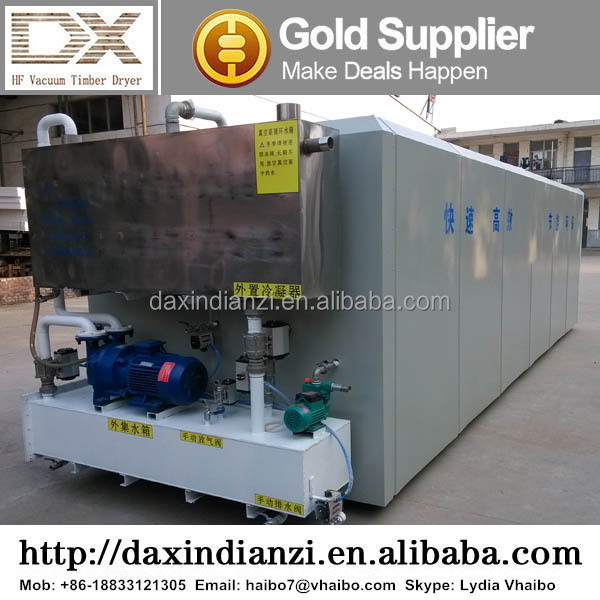

 2) VACUUM WOODDRYING OVEN



1.Efficient volume of vacuum dryer: 10 M3

2.Timber cart: 6.0 M long, 1.5M wide

3.Outer orbit: 5.5 M long

4.Pile height :0.5~1.1M

5.Vacuum degree: 0~-0.093MPa

6.Vacuum pump power: 4KW

7.Circle pump parameter: input power: 370W flow: 3 cubic per hour

8-Initial moisture content of wood requirement: less than 30%

9Maximum dehydration rate: 310 KGS /24hour (condition: density of wood 0.75, output power 40KW, temperature of condenser:30°C, vacuum degree- 0.08MPa)

10Temperature check: main and deputy even numbers show temperature display, can meet the specials need of wood drying technology.

 11- Safety protection: vacuum pump overload protection

12- Drainage control: automatic/ manual

13- Temperature control: manual set, automatic operation

14- Vacuum degree control: manual set, automatic operation

15- Main control valve: pneumatic

16- Material pile of pressure device: hydraulic or pneumatic

17- Pressure device is maximum pressure :9500KG

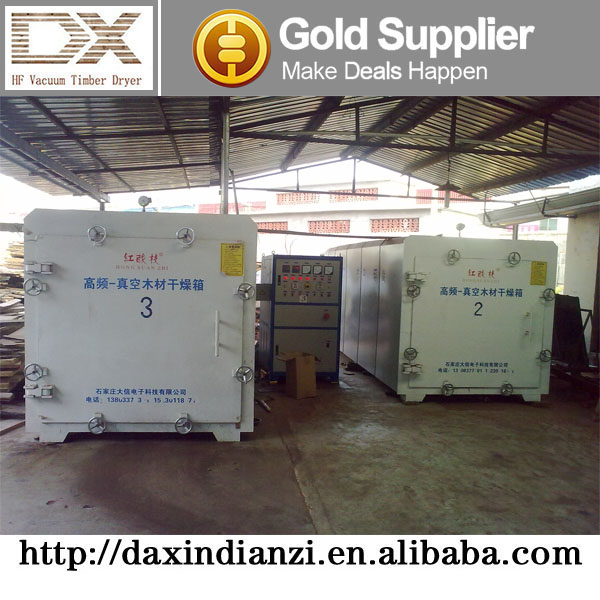

High frequency vacuum wood dryer specification:

Model

GZ-3.0III-DX

GZ-4.0III-DX

GZ-6.0III-DX

GZ-8.0III-DX

GZ-10.0III-DX

Capacity(CBM)

3.3

4.4

6

8

10.8

Out Dimension

4400*1716

*1806mm

5400*1716

*1806mm

6500*1916

*2006mm

7600*2000

*2090mm

8600*2000

*2090mm

Inside dimension

3600*1500

*1500mm

4600*1500*1500mm

5700*1700

*1700mm

6800*1750

*1750mm

7800*1750

*1750mm

Timber cart (mm)

3000*1100

*1000

4000*1000*1000

5000*1200

*1100

6000*1200

*1200

7000*1200

*1200

Max Length of Wood

3m

4m

5m

6m

7m

High Frequency

6.78MHz

6.78MHz

6.78MHz

6.78MHz

6.78MHz

Input Power

11KW

11KW

30KW

40KW

50KW

output power

10KW

10KW

20KW

30KW

40KW

Vacuum pressure

- 0.092MPa

- 0.092MPa

- 0.092MPa

- 0.092MPa

- 0.092MPa

Weight(kg)

4000

5000

7000

9000

11

Application

Apply for all wood species



Product Description

Related products list



HF vacuum dryer 3CBM          HF vacuum dryer 4CBM              HF vacuum dryer 6CBM



HF vacuum dryer 8CBM         HF vacuum dryer 10CBM             HF vacuum dryer 12CBM



High Frequency Generator
