Quick Details

  • Condition: New
  • Type: Vacuum Drying Equipment
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: DAXIN
  • Model Number: DX-3.0III-DX
  • Voltage: 15KVA
  • Power(W): 10KW
  • Dimension(L*W*H): 3000*1100*1000
  • Weight: 4000KG
  • Certification: ISO, Patent, CE
  • Warranty: 1year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Drying medium: Direct heat
  • Heating mode: Dielectric type
  • Applicable materials: All kinds of wood
  • Temperature range: Depending on the technology needs
  • capacity: 3.3CBM
  • out dimension: 4400*1716*1806mm
  • inside dimension: 3600*1500*1500mm
  • timber cart: 3000*1100*1000
  • max length of wood: 3m
  • High Frequency: 6.78HZ

Packaging & Delivery

Packaging Details Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea for wood dryer
Delivery Time 10-15 days after receiving the advanced payment for wood dryer

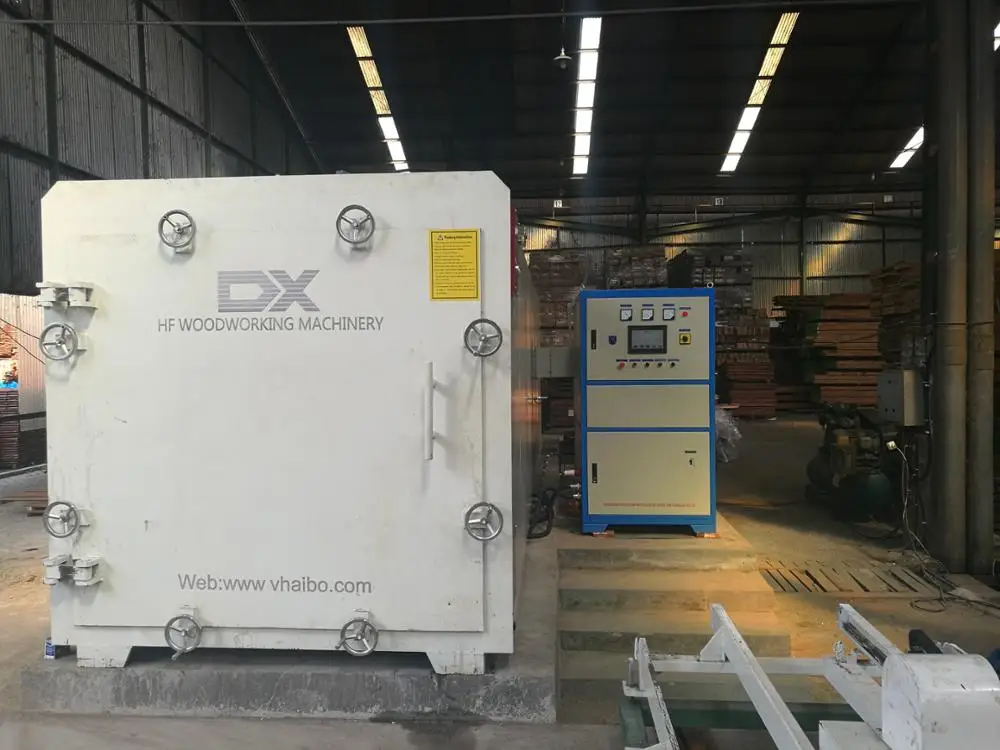

(DX-3.0III-DX) 3CBM wood dryer /timber kiln /lumber drying oven
1.high outturn percentage 2. Full Automatic

  (DX-3.0III-DX) 3CBM wood dryer /timber kiln /lumber drying oven

Product Description


High vacuum timber dryer adopts high frequency drying, inside and outside of wood timber is heated at same time, uniform heating, high speed drying, short time and good quality, which can keep the timber nature color, meanwhile, the timber is aerated under the vacuum environment, non-cracking, especially applied for the thick and hard precious wood, wet wood.


  The dryer machine component

1. Wood dryer oven

2. High frequency generator

3. Timber cart

4. Outer orbit

5. Aluminum mesh plate


1.It is new drying method. (Dielectric heating)


Steam and normal vacuum dryer (hot plate) is conductive heating. They dry the wood little by little from outside to inside.

High frequency is dielectric heating. HF wave can penetrate the thick wood and dry it uniformly. Even the core of wood temperature is heater than surface.

Vacuum condition: It is minus pressure, safe.

The wood moisture can vaporized in low temperature.

Then vapor will be pump out automatically. So HF vacuum dryer is faster, more uniform, no bending and no crack caused by non-uniform.


2. No need boiler; No need hot plate (no hot water)

The power supply of HF vacuum dryer is electricity. It does not need boiler, save the human resource and protect the Environment.


3. Worm killing.

High frequency can kill the worm and bacteria. It does not need special chemical treatment.


Package: Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea.






  High frequency vacuum wood dryer specification:

  Picture Show



Packaging & Shipping




Our Services


 Export Market

United States, Uganda, Thai, Vietnam, New Zealand, Japan, Bulgaria and so on.


Our service

Sample: we can provide free brochures to cutomers.

Warrenty: all kinds of machines can be ensured 1 year.

Cutsomer service: If there were something wrong during this warrenty, our engineer would be available to oversea to repair it freely.


 Related products list


HF vacuum dryer 3CBM          HF vacuum dryer 4CBM              HF vacuum dryer 6CBM


HF vacuum dryer 8CBM         HF vacuum dryer 10CBM             HF vacuum dryer 12CBM


High Frequency Generator






High frequency vacuum

Microwave vacuum

Heating method

High frequency


Heating speed



Diathermy way

through heating

The internal and external heating

Heating area


Outside high, inside low temperature

Technology process



Drying temperature

Can be high to low


Drying quality


Maybe some damage




comprehensive evaluation
