Quick Details

  • Condition: New
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: DX
  • Model Number: GPB-2500-DX
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: high-frequency finger board jointing machine
  • Application: Apply for all kinds wood
  • Out Dimension: 9600x2000x2090mm
  • Inside Dimension: 8800x1750x1750mm
  • Max Length of Wood: 8m
  • Packing: particular container
  • High Frequency: 6.78MHz
  • Oscillation Power: 40KW
  • Weight: 13000kg
  • Timber Cart: 8000x1300x1200

Packaging & Delivery

Packaging Details Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea
Delivery Time Shipped in 20 days after payment

high-frequency finger board jointing machine

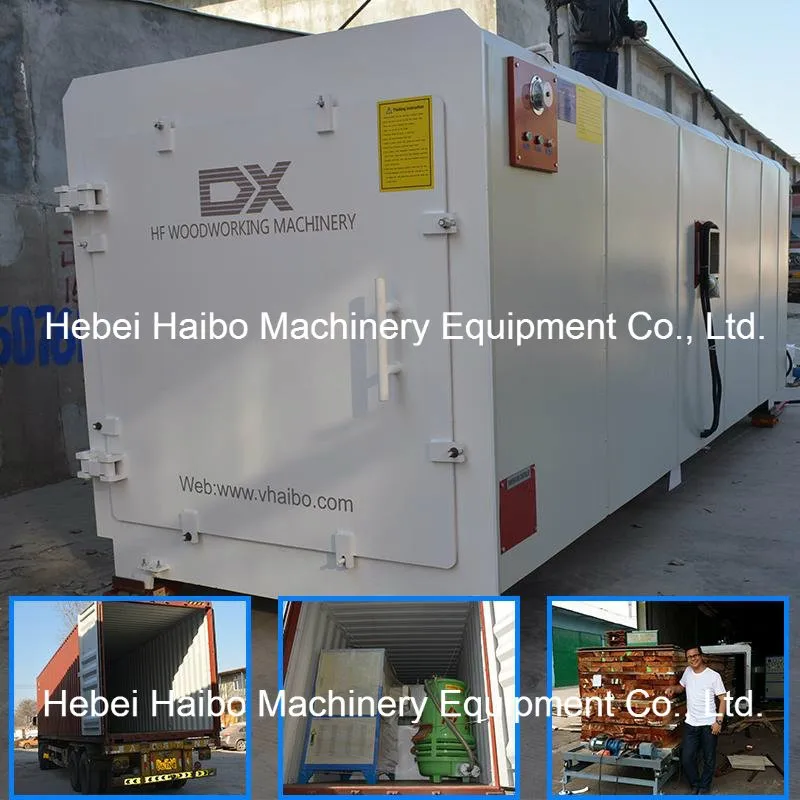

DX-12.0-DX HF frequency vacuum wood dryer machine from HaiBo

HF Vacuum Timber Drying Equipment are many times faster than traditional kiln dryers. The drying process can range from within 36 hours for thinner, softer woods to several days for thicker, harder woods.
The DX-8.0III-DX features an automatic feeder and a quick, automated drying cycle. It has a 30KW high frequency generator, 4T hydraulic /air pressure and 8.64m3 capacity. It is an ideal dryer for thick hard woods typically used in the furniture and flooring industry.

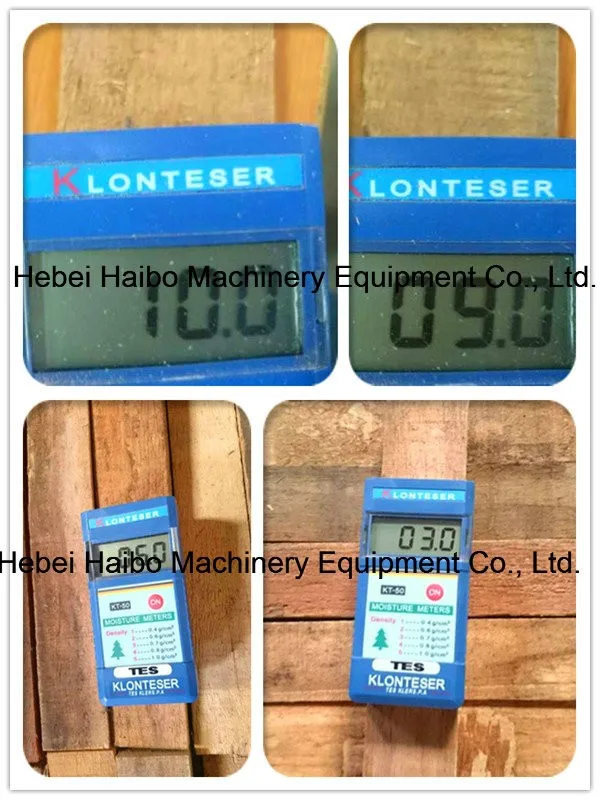

All models include high-tech Programmable Logic Controllers. The PLC comes with common hardwood presets ready for use. The PLC automates the drying process by starting the hydraulic pump, HF generator, vacuum pump and water system. The water control system pulls the moisture to an external water tank which can then be drained. The weight system calculates change data to read the moisture content of the wood.
Our engineers can provide overseas installation, training and are available to provide after-sales service and maintenance. We recommend proper training for safe and prolonged use of the machinery.



Advantages of high frequency vacuum dryers

1: Short drying cycle

2: Good drying effect

3: Easy Operation

4: Energy Saving

5: Cost-Effective


Specification

Model NoPackingOscillation PowerMax Length
of Wood
Effictive CapacityOuter Dimension (mm)Timber cart (mm)
DX-3.0III-DX20GP10KW3m3.30 M³4400*1716*18063000*1100*1000
DX-4.0III-DX40GP10KW4m4.40 M³5400*1716*18064000*1100*1000
DX-5.0III-DX40HQ10KW4.6m5.60 M³5600*1716*18064600*1100*1000
DX-6.0III-DX40HQ20KW5m6.60 M³6500*1916*20065000*1200*1100
DX-8.0III-DX40HQ30KW6m8.64 M³7600*2000*20906000*1200*1200
DX-10.0III-DX40HQ40KW7m10.08 M³8600*2000*20907000*1200*1200
DX-12.0III-DX40HQ40KW8m12.48 M³9600*2000*20908000*1300*1200
DX-15.0III-DXparticular container40KW

Mark :Apply for all wood species , also can be customized for capacity .

Working principle



Packing & Delivery

1.Plastic and foam packing, fixed by wood pallet, it is packed in 40 feet container.

2.by sea transport





Our Company

Hebei Haibo Machinery Equipment Co., Ltd. is one of the leading manufacturer of high frequency woodworking equipment in Hebei Province, China.We have been in this industry for more than 20 years, and we have the National Patent Certificate, ISO Certificate and CE Approval.

Our main machineries cover with :

High Frequency Wood Dryer kiln
High Frequency Generator
High Frequency Frame joining machine
High Frequency Board Joining machine
High Frequency Hot Pressing machine
High Frequency Solid Wood Benging machine.


There are the newest technology in woodworking machinery industry.
In the past years, we successfully exported to the USA (3 sets), Canada (1 set), Indonesia (3 sets), Thailand (2 sets), Vietnam (3 sets), Africa (2 sets), Europe (3 sets), and New Zealand, Australia, Iran etc. Our Professional engineers can provide overseas installation, training and Perfect after-sales service and maintenance.

Our Service
Our engineers can provide overseas installation, training and are available to provide after-sales service and maintenance.
Service Engineers available to service total set of machine overseas for one year.
Every component is free of charge if it is broken because of the machine itself for one year.

Professional worker team at factory,
Professional sale team at office
Professional engineer team at customer's factory .
Professional wood dryer machine;s technology.
Professional after-sales service for customer.
That's why customer choose us. Please choose us we won't let you down.
