(DX-3.0III-DX) Fast drying microwave/vacuum wood dryer for sale

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vacuum Drying Equipment
Place of Origin:
Hebei, China (Mainland)
Brand Name:
DAXIN
Model Number:
DX-3.0III-DX
Voltage:
15KVA
Power(W):
10KW
Dimension(L*W*H):
3000*1100*1000
Weight:
4000KG
Certification:
ISO, Patent, CE
Warranty:
1year
After-sales Service Provided:
Engineers available to service machinery overseas
Drying medium:
Direct heat
Heating mode:
Dielectric type
Applicable materials:
All kinds of wood
Temperature range:
Depending on the technology needs
capacity:
3.3CBM
out dimension:
4400*1716*1806mm
inside dimension:
3600*1500*1500mm
timber cart:
3000*1100*1000
max length of wood:
3m
High Frequency:
6.78HZ
SupplyAbility
SupplyAbility:
7 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea for wood dryer kiln
Port
TIAJIN PORT,CHINA
Lead Time :
10-15 days after receiving the advanced payment for wood dryer

Specifications

(DX-3.0III-DX) Fast drying microwave/vacuum wood dryer for sale
1.high outturn percentage 2. Full Automatic

  (DX-3.0III-DX) Fast drying microwave/vacuum wood dryer for sale

Product Description



High Frequency vacuum wood/ timber/ lumber dryer adopts high frequency drying, inside and outside of wood timber is heated at same time, uniform heating, high speed drying, short time and good quality, which can keep the timber nature color, meanwhile, the timber is aerated under the vacuum environment, non-cracking, especially applied for the thick and hard precious wood, wet wood.



  The dryer machine component

1. Wood dryer oven

2. High frequency generator

3. Timber cart

4. Outer orbit

5. Aluminum mesh plate



1.It is new drying method. (Dielectric heating)



Steam and normal vacuum dryer (hot plate) is conductive heating. They dry the wood little by little from outside to inside.

High frequency is dielectric heating. HF wave can penetrate the thick wood and dry it uniformly. Even the core of wood temperature is heater than surface.

Vacuum condition: It is minus pressure, safe.

The wood moisture can vaporized in low temperature.

Then vapor will be pump out automatically. So HF vacuum dryer is faster, more uniform, no bending and no crack caused by non-uniform.



2. No need boiler; No need hot plate (no hot water)

The power supply of HF vacuum dryer is electricity. It does not need boiler, save the human resource and protect the Environment.



3. Worm killing.

High frequency can kill the worm and bacteria. It does not need special chemical treatment.



Package: Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea.



  Advantages



 3cbm High frequency vacuum wood dryer specification:

  Picture Show





Packaging & Shipping

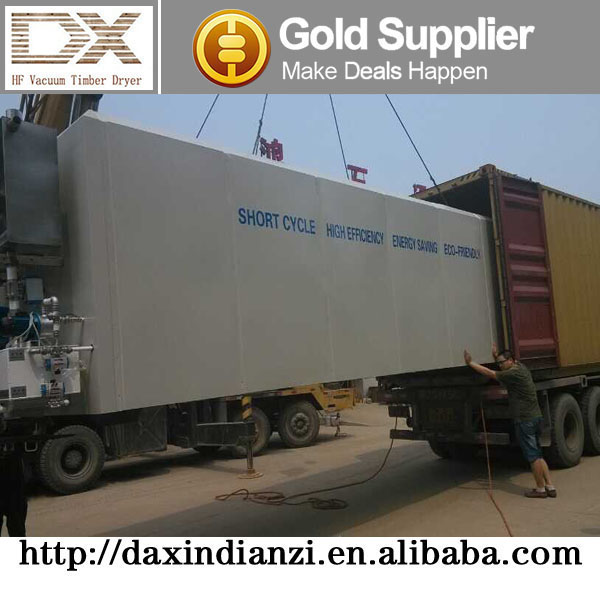

This is one of our HF Vacuum Wood Drying Mchine Exported to the USA, Loaded by 40HQ.

Our Services



Sample: we can provide free brochures to customers.

Warrenty: all kinds of machines can be ensured 1 year.

Customer service: If there were something wrong during this warrenty, our engineer would be available to oversea to repair it freely.



Company Information



Our Company cooperated with Dongbei Forestry University Developed and manufactured this equipment together in 1998, we owned 3 national patents on this equipment. DAXIN is the first producer of this machine in China.

We can supply this machine with capacity from 3 to 20 cubic meter.



 Export Market

United States, Uganda, Thailand, Vietnam, New Zealand, Japan, Bulgaria and so on.



CE, ISO, China patent certificate available



FAQ



 Why we choose HIGH FREQUENCY VACUUM?



High frequency vacuum

Microwave vacuum

Heating method

High frequency

microwave

Heating speed

Fast

fast

Diathermy way

through heating

The internal and external heating

Heating area

uniformity

Outside high, inside low temperature

Technology process

Easy

complex

Drying temperature

Can be high to low

high

Drying quality

Perfect

Maybe some damage

Radiation

Low

high

comprehensive evaluation

Excellent

good
