Quick Details

  • Condition: New
  • Type: Vacuum Drying Equipment
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: DAXIN
  • Model Number: DX-6.0III-DX
  • Voltage: 30KVA
  • Power(W): 20KW
  • Dimension(L*W*H): 5000*1200*1100
  • Weight: 7000KG
  • Certification: ISO, Patent
  • Warranty: 1year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Drying medium: Direct heat
  • Heating mode: Dielectric type
  • Applicable materials: All kinds of wood
  • Temperature range: Depending on the technology needs

Packaging & Delivery

Packaging Details Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea for wood dryer kiln
Delivery Time 10-15 days after receiving the advanced payment for wood kiln
 Fast wood dryer kiln /timber drying machine / Lumber drying oven from factory



Product Description

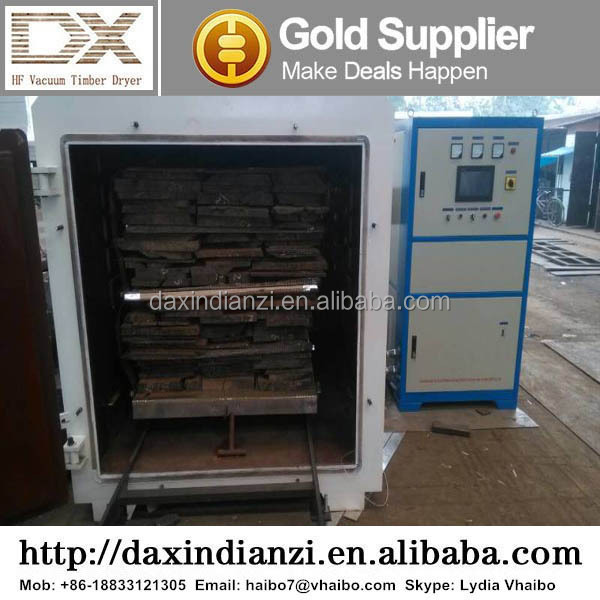

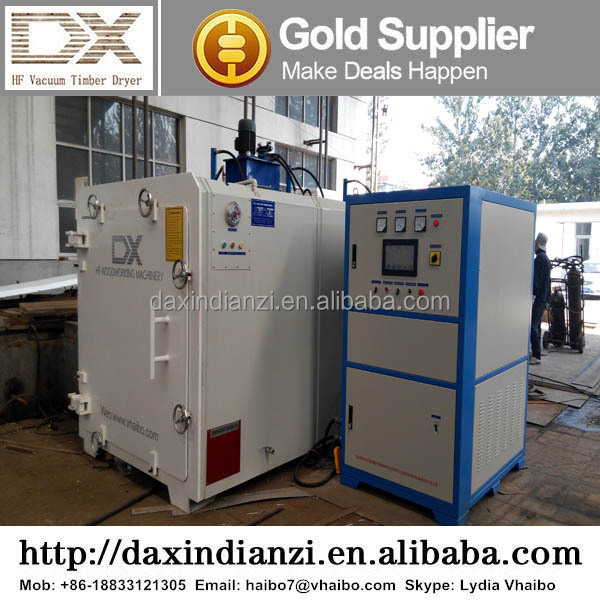

High frequency vacuum wood dryer
High frequency vacuum timber dryer adopts high frequency drying, inside and outside of wood timber is heated at same time, uniform heating, high speed drying, short time and good quality, which can keep the timber nature color, meanwhile, the timber is aerated under the vacuum environment, non-cracking, especially applied for the thick and hard precious wood, wet wood.



Equipment composition

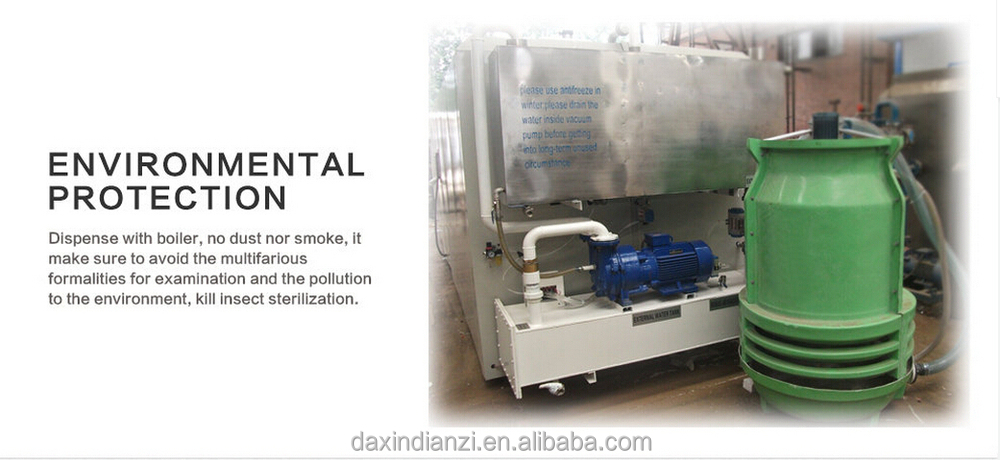

1) High frequency generator    2) Vacuum wood dryer oven    3) Cooling tower

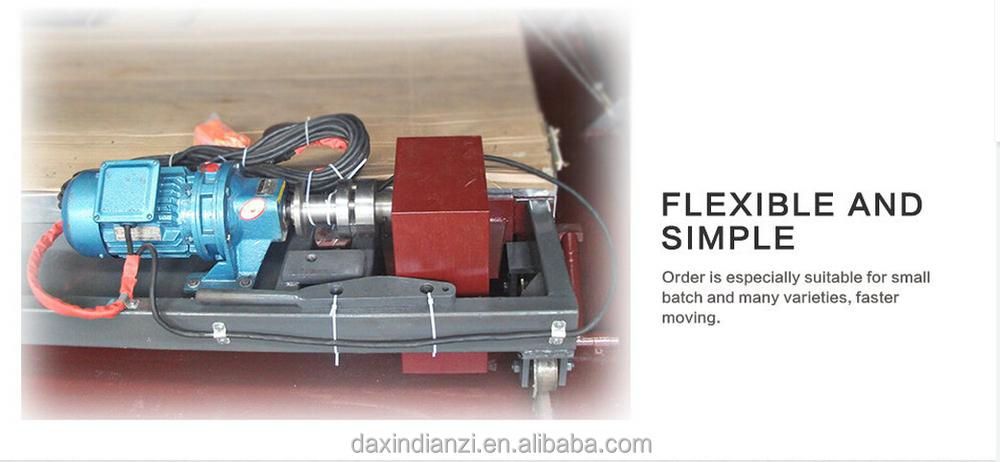

4) Timber cart, external track (outer orbit), aluminum mesh Counter Electrode







  High Frequency vacuum wood dryer advantage
1.It is new drying method. (Dielectric heating)

Steam and normal vacuum dryer (hot plate) is conductive heating. They dry the wood little by little from outside to inside.

High frequency is dielectric heating. HF wave can penetrate the thick wood and dry it uniformly. Even the core of wood temperature is heater than surface.

Vacuum condition: It is minus pressure, safe.

The wood moisture can vaporized in low temperature.

Then vapor will be pump out automatically. So HF vacuum dryer is faster, more uniform, no bending and no crack caused by non-uniform.



2. No need boiler; No need hot plate (no hot water)

The power supply of HF vacuum dryer is electricity. It does not need boiler, save the human resource and protect the Environment.



3. Worm killing.

High frequency can kill the worm and bacteria. It does not need special chemical treatment.



PackageStandard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea



  High frequency vacuum wood dryer specification:







 The Machine schematic diagram

Packaging & Shipping

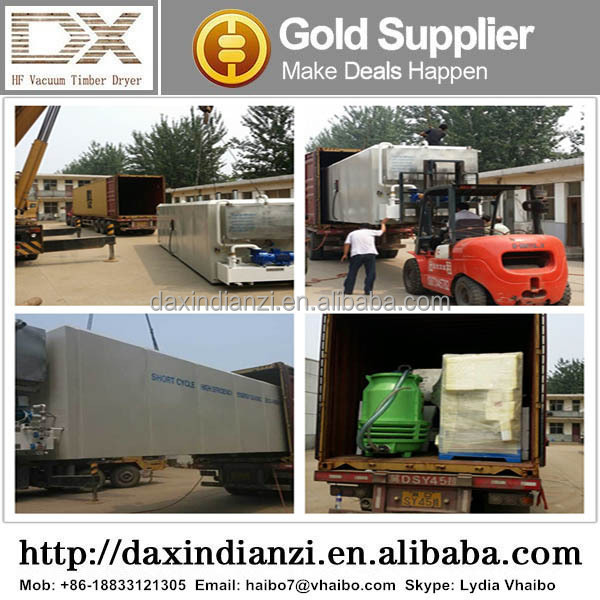

This is one of our HF Vacuum Wood Drying Mchine Exported to the USA, Loaded by 40HQ.

Our Services



Sample: we can provide free brochures to customers.

Warrenty: all kinds of machines can be ensured 1 year.

Customer service: If there were something wrong during this warrenty, our engineer would be available to oversea to repair it freely.

Company Information



Our Company cooperated with Dongbei Forestry University Developed and manufactured this equipment together in 1998, we owned 3 national patents on this equipment. DAXIN is the first producer of this machine in China.

We can supply this machine with capacity from 3 to 20 cubic meter.



 Export Market

United States, Uganda, Thailand, Vietnam, New Zealand, Japan, Bulgaria, Iran, Indonesia and so on.



CE, ISO, China patent certificate available
