hf hard timber drying wood equipment|lumber dryer

FOB Reference Price:Get Latest Price
  • 1 - 2 Sets
    US $40000.00
  • >=3 Sets
    US $35000.00
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hebei, China (Mainland)
Brand Name:
DX
Model Number:
DX-3.0III-DX
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
hf hard timber drying wood equipment|lumber dryer
Usage:
Drying All the Wood
Type:
Automatic
Power:
10KW
Loading Capacity:
3.3cbm
Certification:
CE Certificate
Voltage:
According to customers asked
Model:
DX-3.0III-DX
Vacuum pressure:
-0.093Mpa
Supply Ability
Supply Ability:
360 Set/Sets per Year hf hard timber drying wood equipment|lumber dryer
Packaging & Delivery
Packaging Details
plastic film and foam in 1x20feet container
Port
Tianjin
Lead Time :
30 days after received your payment

Agent wanted hf hard timber drying wood equipment

HF Vacuum Wood Dryer845x400px

Product Description

HF-VACUUM WOOD DRYING EQUIPMENT is a new generation wood drying equipment.

This machine is the result of design combining high frequency medium heating technology and vacuum cryogenic dehydration technology, greatly reduced drying time. This equipment adopts PLC programming control, drying chamber equipped with 80mm thick thermal insulating layer and inside & outside two sets stainless steel condensation system, it is more convenient to choose lumber drying procedure and applicable for drying all kinds of wood.

The main control valve adopts pneumatic valve technology, this technology have advantages like steady, long serve life and low failure rate. The main advantage of our wood drying equipment: short drying cycle, super quality, cost effective and eco-friendly.


Advantages of high frequency vacuum wood dryer



Quick heating--- It does not require heat conduction,  inside and outside of wood timber is heated at same time;
Fast dehydration ---During the heating process, there is staged temprature difference between inside and outside of wood timber this will speed up the water movement from inside wood to outside wood

High quality--- there will be no crackings ,bending and color change by taking control of heatiing speed,relative vacuum degree & condensing rate.
Strong adaptability---High frequency-Vacuum drying can realize not only cold drying but hot drying, help to eliminate stress,solidify resin. This applies to dry all kinds of wood
High-usage--- Square designed drying box supplies more space utilization. it is suitbale for different shaped wood
Cost saving --- Fast tempreture raise and higher sapce utilization takes lower cost than traditional ways.
Eco-friendly --- This machine does not pollute the enviroment
Full-automatic ---UA Unattended Automatic drying process,very easy to handle

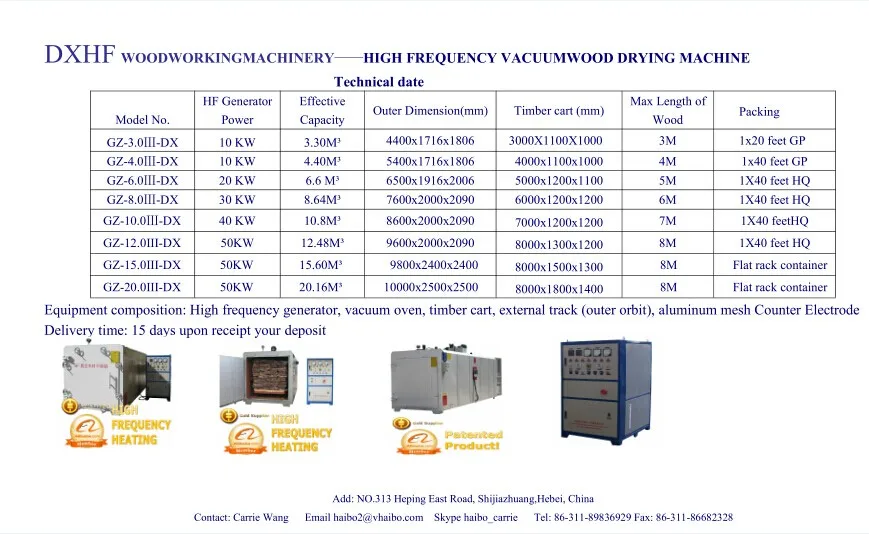

technical date 2.jpg

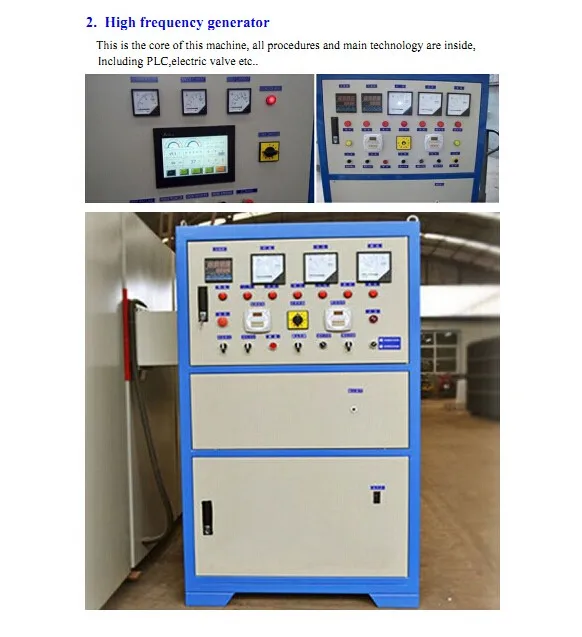

High frequency generator heating principle
HF generator is the core of dielectric heating equipment. It applies three phase alternating current to form frequency oscillation electric field .Under this high frequency electric field, the molecules like water .glue or PVC will be polarized and form two poles. The electric field will change pole rapidly meanwhile all the molecules will also move in very high speed. The friction and impact among molecules can make material get heated in short time. Then the water will be vaporized, glue becomes solid and PVC gets softened rapidly.

Korea HF vacuum wood dryer 10cbm

The drying principle

High vacuum timber dryer adopts high frequency drying, inside and outside of wood timber is heated at same time, uniform heating, high speed drying, short time and good quality, which can keep the timber nature color, meanwhile, the timber is aerated under the vacuum environment, non-cracking, especially applied for the thick and hard precious wood, wet wood.

Automatic type function

Adopts optical fiber testing temperature, accuracy, it is effectively avoid High frequency interfering measuring instrument.

It adopts weight method and Kiln moisture meter, which can test moisture rate online

The container is handled by professional chemical anticorrosion, no rustiness, so that save the container maintenance and avoid pollute the timber

Save labor, automatic feeding and discharging. Built-in cooling system, lower the drying cost.

Company Information

Daxin Electronic Science And Technology Co., Ltd. is one of the leading manufacture factory of

high frequency vacuum wood drying equipment and high frequency generator in Hebei Province,China.In this industry more than 20 years.we have the patent certification and Ce certification .Our productions cover with High Frequency Wood Dryer kiln, High Frequency Generator, High Frequency Vacuum Edge Gluer. High Frequency Curved Plywood Press, High Frequency Hot Press,

It is the newest drying technology in woodworking machinery industry.

We can supply capacity 3cbm,4cbm,6cbm,8cbm,10cbm,12cbm,15cbm,20cbm .

It sold  in Japan,Thailand,Vietnam,USA,Uganda,New Zealand,Bulgaria etc.Now very popular drying technology in China

Export Market

Two set United States, Uganda, Two sets Thailand, Two sets Vietnam, New Zealand, Japan, Bulgaria, Iran, 3 sets Indonesia and so on.

If you want to know more details ,you can visit : www.hfwoodmachineg.com

drying machineTIM20171212095257

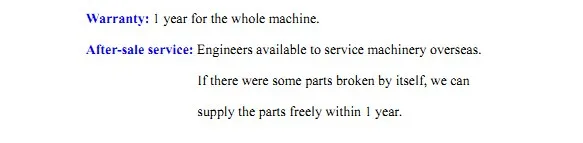

Our Services







Service

Engineers available to service total set of machine overseas for one year.
Every component is free of charge if it is broken because of the machine itself for one year.







Packing  QQ20160811144829.jpg
