Quick Details

  • Condition: New
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: Daxindianzi
  • Model Number: GZ-10.0III-DX
  • After-sales Service Provided: Engineers available to service machinery overseas
  • application: woodworking drying machine
  • Effective volume: 10.8 cubic meter
  • high frequency power: 40 KW
  • kiln size: 7500*2140*2240 mm
  • weight: 9500 KGS
  • Working principle: high frequency heating and vacuum drying
  • vacuum tempreture: 45-95 degree below
  • vacuum pressure: 8-10 KPa
  • payment: T\T and L\C at sight
  • delivery time: 10-20 days

Packaging & Delivery

Packaging Details Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea
Delivery Time within 15 days

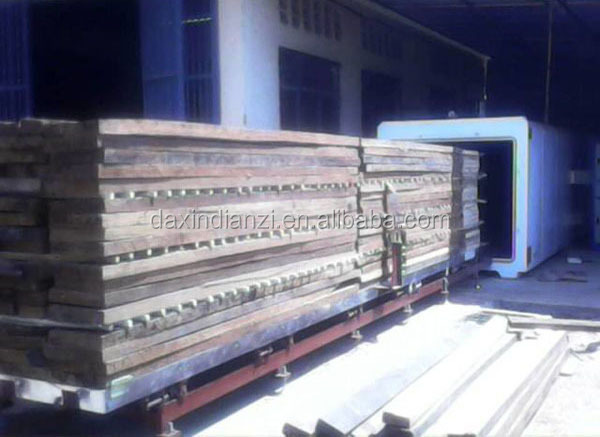

2016 new popular HF Vacuum Wood Drying Machine

Product Description

2016 new popular HF Vacuum Wood Drying Machine

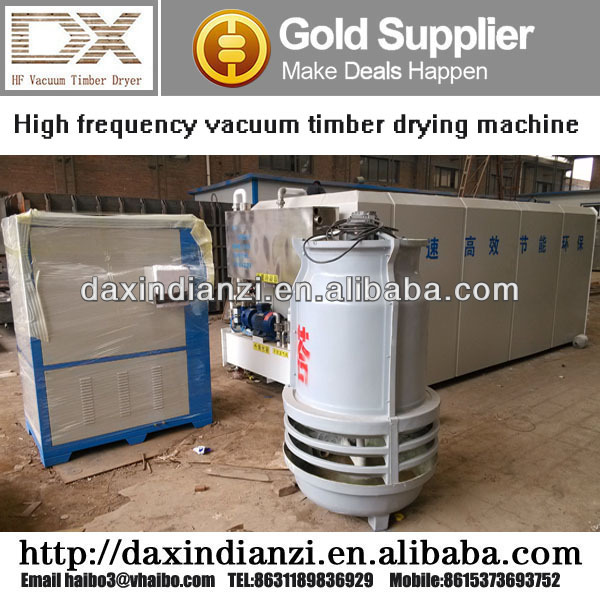

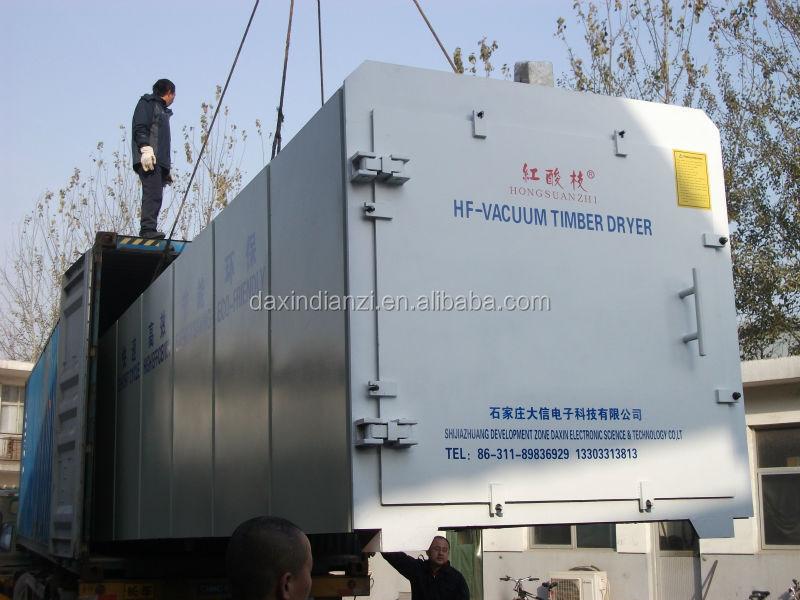

Two main parts of the machine: 1) High frequency generator 2) Vacuum wood dryer oven

To meet the specification of wood with the length 5.5-6m, the width 1-1.2m and height 0.7-1m

High Frequency Vacuum Wood Dryer Machine is the result of design combining High frequency medium heating technology and Vacuum cryogenic dehydration technology. The working principle of HF medium heating: in the high frequency electrical filed, friction of medium molecule generates heat. Keeping the wood in the frequency electrical filed, thus the inside & outside of wood will be rapidly heating. Meanwhile, vaporizing temperature of water will be decreased under vacuum conditions.

Specification

Technology data (3 cubic meters):

1. Capacity of dry oven: 3 cubic meters

2. Vacuum degree: 0——-0.093Pa or according to the need

3. Drying temperature: 90°C

4. Final moisture content of wood: 18%-20% or could be setting as per-request

5. Maximum dehydration rate: 90 KG / 24 hours

6. Power of high frequency machine: 10KW

7. Frequency of high frequency machine: 6.78MHz

8. Power input of vacuum pump: 4KW

9. Maximum input total power: 13KVA

Technology data (8 cubic meters):

1. Capacity of dry oven: 8 cubic meters

2. Vacuum degree: 0——-0.093Pa or according to the need

3. Drying temperature: ≤90°C

4. Final moisture content of wood: 18%-20% or could be setting as per-request

5. Maximum dehydration rate: 220KG / 24 hours

6. Power of high frequency machine: 30KW

7. Frequency of high frequency machine: 4MHz

8. Power input of vacuum pump: 4KW

Maximum input total power: 40KVA

Technology data (10 cubic meters):

1. Capacity of dry oven: 10 cubic meters

2. Vacuum degree: 0——-0.093Pa or according to the need

3. Drying temperature: ≤90°C

4. Final moisture content of wood: setting as per-request

5. Maximum dehydration rate: 310KG / 24 hours

6. Power of high frequency machine: 40KW

7. Frequency of high frequency machine: 4MHz

8. Power input of vacuum pump: 4KW

9. Maximum input total power: 50KVA

Packaging & Shipping

 Package: Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea

2016 new popular HF Vacuum Wood Drying Machine







   container style drying 10cbm timber drying kiln
