Quick Details

  • Condition: New
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: DX
  • Model Number: DX-12.0III-DX
  • After-sales Service Provided: Overseas service center available
  • Capacity: 12.48cbm
  • Certification: ISO9001
  • Warranty: 1 year
  • application: all kinds of wood
  • advantage: saving drying cost
  • structure: squared type drier
  • Dehydration rate: 20-100kg per day based on different kinds of wood
  • Heating mode: electrical medium
  • max length of wood: 7m
  • out dimension: 8600*2000*2090mm

Packaging & Delivery

Packaging Details Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea
Delivery Time within 30 days

discount for high frequency vacuum wood drying machine


We are a company which mainly works on development and manufacture of set of High frequency heating

equipment. heating equipment. We have most advanced technology, exquisite workmanship and solid strength. Truly realized environmental protection, high fficiency and energy saving.The company has

complete team to design, research and manufacture. The equipments are widely used in furniture

manufacturing, wood drying, Integrated Wood, scientific wood and bent wood processing  industry. The

equipments from our company are exported to more than 30 countries and regions around the world. In

2003, our firm successfully passed ISO9001 patent certification, which has greatly improved the general

management level.We believe customer first, service first, leading technology and excellent reputation.

To provide customers with the most advanced machinery and a full efficient customer service.Hope to relate

long business friendship and cooperation.


High Frequency Vacuum Wood Machine

High frequency vacuum timber dryer adopts high frequency drying, inside and outside of wood timber is

heated at same time, uniform heating, high speed drying, short time and good quality, which may keep the

timber nature color, meanwhile, the timber is aerated under the vacuum environment, non-cracking,

especially applied for the thick and hard precious wood, wet wood.



Quick heating-It does not require heat conduction, inside and outside of wood timber is heated at same time;

Fast dehydration-During the heating process, there is staged temperature difference between inside and

outside of wood timber this will speed up the water movement from inside wood to outside wood; Drying

time is 1/5 compare with traditional wood drying method.

High quality-there will be no cracklings, bending or color change by taking control of heating speed, relative

vacuum degree & condensing rate.

Strong adaptability-High frequency-Vacuum drying can realize not only cold drying but hot drying, help

to eliminate stress, solidify resin. This applies to dry all kinds of wood

High usage-Square designed drying box supplies more space utilization. It is suitable for different shaped


Cost saving -Fast temperature raise and higher space utilization takes lower cost than traditional ways.

Eco-friendly-This machine does not pollute the environment

Full-automatic-UA Unattended Automatic drying process, very easy to handle


High frequency vacuum timber dryer


1. It is new drying method. (Dielectric heating)

Steam and normal vacuum dryer (hot plate) is conductive heating. They dry the wood little by little from outside to inside.

High frequency is dielectric heating. HF wave can penetrate the thick wood and dry it uniformly. Even the core of wood temperature is heater than surface.

Vacuum condition: It is minus pressure, safe.

The wood moisture can vaporized in low temperature.

Then vapor will be pump out automatically. So HF vacuum dryer is faster, more uniform, no bending and no crack caused by non-uniform.

2. No need boiler; No need hot plate (no hot water)

The power supply of HF vacuum dryer is electricity. It does not need boiler, save the human resource and protect the Environment.

3. Worm killing.

High frequency can kill the worm and bacteria. It does not need special chemical treatment.


Technology data

More information(CLICK) : 4CBM            6CBM

                                             8CBM           10CBM

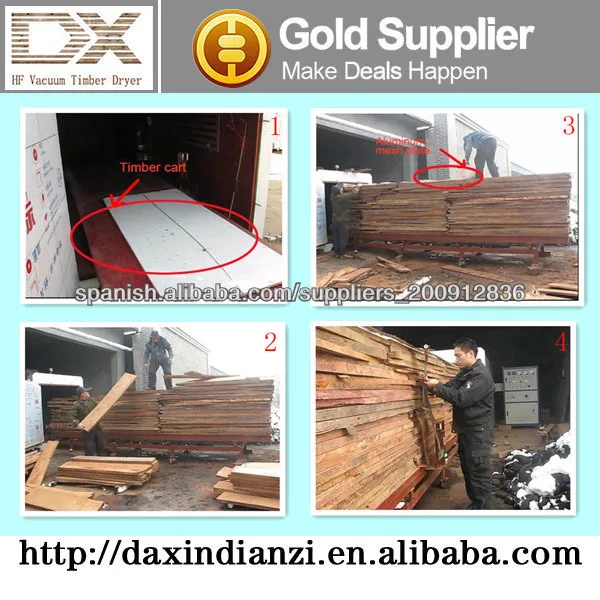

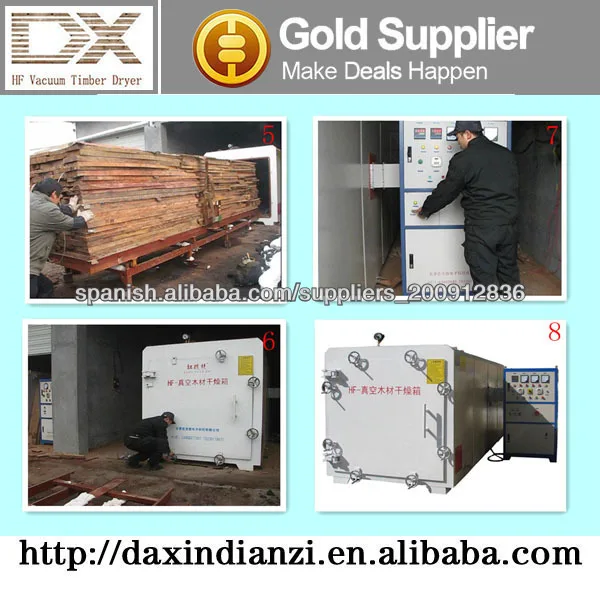

Pictures Show
