Quick Details

  • Condition: New
  • Type: Vacuum Drying Equipment
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: DX
  • Model Number: DX-6.0III-DX
  • Voltage: 380V 50 HZ
  • Power(W): 20KW
  • Dimension(L*W*H): 6500*1916*2006 mm
  • Weight: 7000KGS
  • Certification: ISO
  • Warranty: 1Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Specification: 6.6 cubic meter
  • application: furniture making drying machine
  • Out dimension: 6500*1916*2006 mm
  • timber cart size: 5000*1200*1100 mm
  • wood max length: 5 meter
  • Power: electricity
  • high frequency: 6.78 MHz
  • Vacuum pressure: -0.093 MPa
  • Oscillation Power: 20KW
  • Packing: 40 HQ

Packaging & Delivery

Packaging Details Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea
Delivery Time 30 days
Product Description

High Frequency Vacuum Wood Dryer:

High Frequency Vacuum Wood Machine adopts high frequency drying, inside and outside of wood timber is heated at same time, uniform heating, high speed drying, short time and good quality, which may keep the timber nature color, meanwhile, the timber is aerated under the vacuum environment, non-cracking, especially applied for the thick and hard precious wood, wet wood.

1. To dry all kinds of wood in board type, slab type, cant type, timber type etc..
2. To dry all kinds of wood in veneer type.
3. To dry all kinds of wood in bending type.


Technical Data for different capacity :
Model No.
   Capacity
  CBM
Timber Car
 (mm)
Max Length of    Wood
Oscillation    Power
Weight
(kg)
Packing
DX-3.0III-DX
3.3
3000*1100*1000
3 M
10KW
4000
20GP
DX-4.0III-DX
4.4
4000*1100*1000
4 M
10KW
5000
40GP
DX-5.0III-DX
5.6
4600*1100*1000
4.6 M
10KW
6000
40HQ
DX-6.0III-DX
6.6
5000*1200*1100
5 M
20KW
7000
40HQ
DX-8.0III-DX
8.64
6000*1200*1200
6 M
30KW
9000
40HQ
DX-10.0III-DX
10.08
7000*1200*1200
7 M
40KW
11000
40HQ
DX-12.0III-DX
12.48
8000*1300*1200
8 M
40KW
13000
40HQ
Advantage

1. Heating fast and uniformly, fast drying: more than10 times faster than conventional steam dryer
2. Saving labor, cost and drying time;
3. Full-automatic: easy to control and operate; flexible and simple;
4. High outturn percentage: no cracking, no bending, high outturn percentage
5. Environmental protection
6. New square design tank increase the availability of the inner space
7. Bacteria and worm killing
8. Drying apply for all kinds of wood ,have advantage

Drying time for one circle: 3-7 days
Drying time for one circle: 25-45 days
Floor Space:  small
Floor Space:   wide
Environmental: Environmental protection
Environmental: Contaminate the environment
Work way: Full auto, save a lot of worker charge
Work Way: Need a lot of workers
Drying Result:
The lumber without and bending and cracking, no color change
Drying Rusult:
Most of the lumbers have cracking and bending
Detailed Images

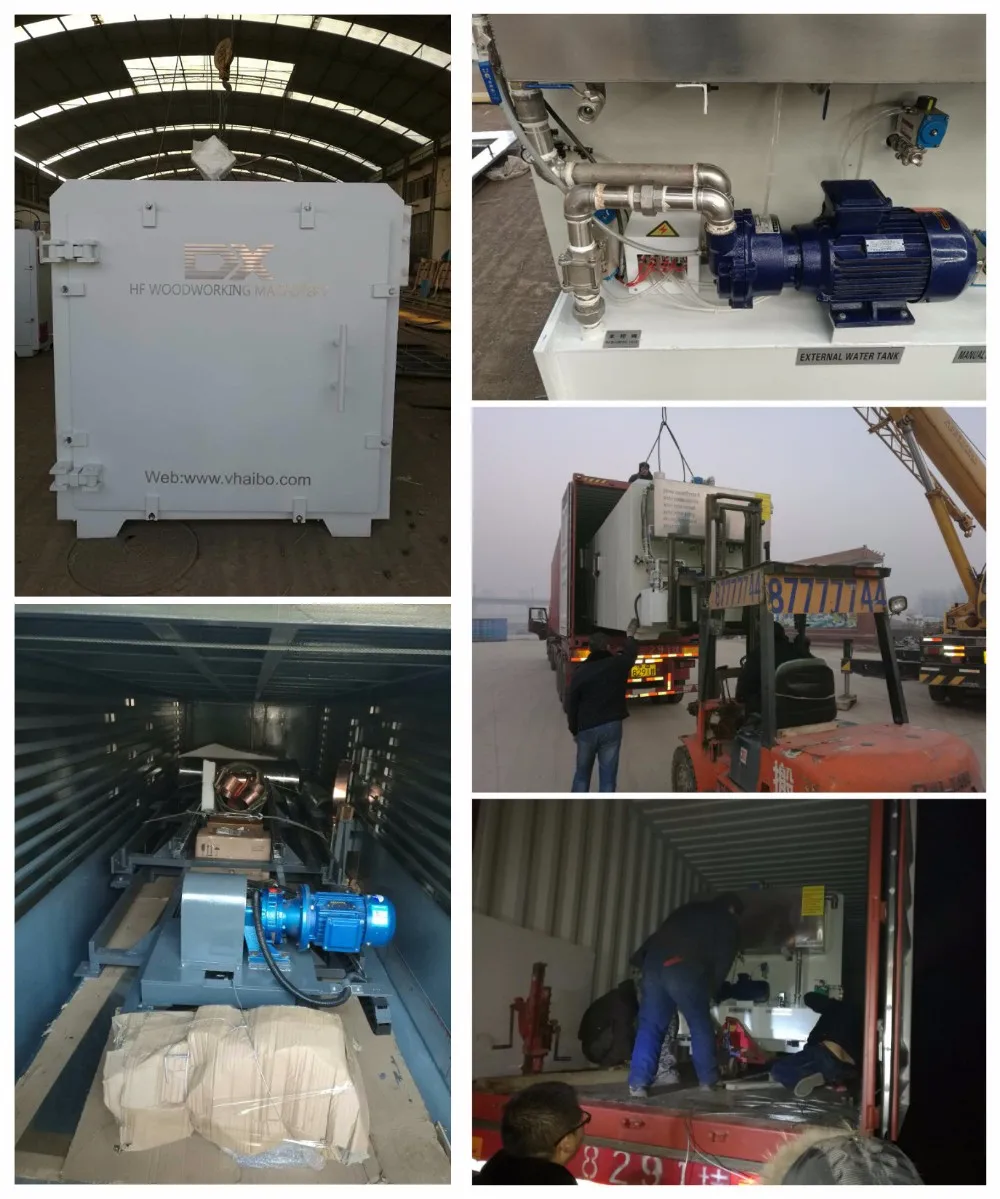

3 Main Parts of the machine:

           *   High Frequency Generator
           *   Vacuum Drying Kiln
           *   Cooling Tower

High frequency generator


This is the brain of the whole machine, smart PLC controlled. Two kinds panels for customers' choice.

Timber Cart


3cbm, 4cbm, 6cbm : manually type timber cart
8cbm, 10cbm, 12cbm : full-auto type timber cart.
Customers can require depend on self-condition.

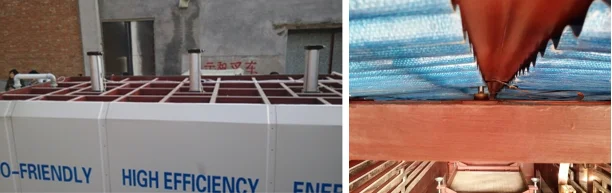

Stainless condenser


The unites which fixed on the wall of oven, to reduce inside temperature, speed up the steam into droplet, fast dehydration, ensure the good drying quality, save much cost.

Pressure system


Advanced hydraulic press system, to avoid wood bending and get the best quality.

Our Service

Pre-Sales Service

Inquiry and consulting support

Visit our factory

After-Sales Service

We can provide overseas installation,training.

Perfect after-sales service and maintenance

Packing & Delivery

Packing: standard export packing with plastic film in one container or as customers' request.
Delivery: within 10-25 days after receipt of prepayment

Our engineer will install the machine for the buyers
Instruction Book is inside with the machine.

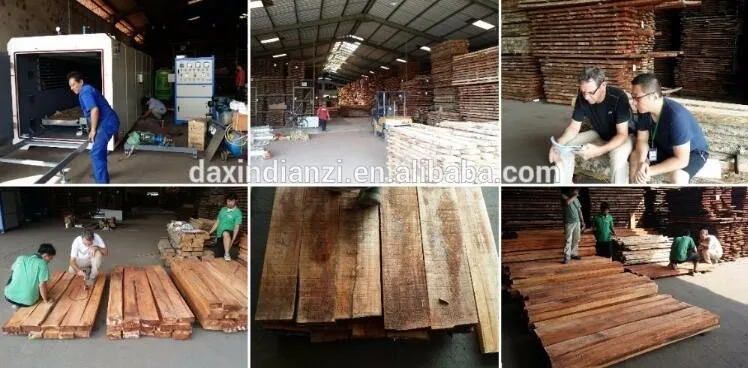

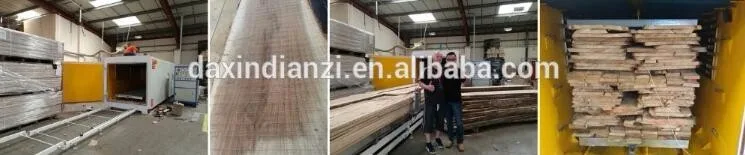

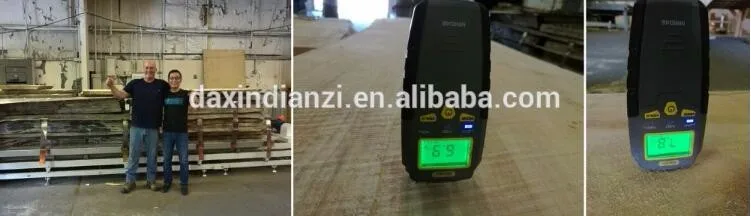

Drying Case

Customer: USA
Wood: Eastern Cottonwood
Moisture: 75% - 8% or lower
Thickness: 70mm
Drying time: 4 days

Customer: Indonesia
Wood: Mahogany
Moisture: 60% - 8% or lower
Thickness: 730mm
Drying time: 5 days

Customer: UK
Wood: oak
Moisture: 70% - 10% or lower
Thickness: 50mm
Drying time: 5 days
