China Supplier wood dryer vacuum Chamber Machine

FOB Reference Price:Get Latest Price
US $40,000-45,000 / Sets | 1 Set/Sets wood drying oven (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Drum Drying Equipment
Place of Origin:
Hebei, China (Mainland)
Brand Name:
DX
Model Number:
DX-4.0III-DX
Voltage:
220V or as your request
Power(W):
10 KW
Dimension(L*W*H):
5400*1716*1806MM
Weight:
5000kg
Certification:
ISO9001 ,CE
Warranty:
1 year
After-sales Service Provided:
Overseas service center available
Capacity:
4.4CBM
Out dimension:
5400*1716*1806mm
Timber cart:
4000*1100*1000mm
Inside dimension:
4600*1500*1500mm
Max length of wood:
4m
Heating mode:
electrical medium
structure:
squared new type drier
Dehydration rate:
20-100kg per day based on different kinds of wood
Advantage:
high outturn percentage and saving drying cost
Application:
all kinds of wood
Supply Ability
Supply Ability:
15 Set/Sets per Month microwave vacuum oven
Packaging & Delivery
Packaging Details
Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea
Port
Tianjin,China
Lead Time :
within 15 days

China Supplier HF wood dryer vacuum Chamber Machine For Sale

Product Description

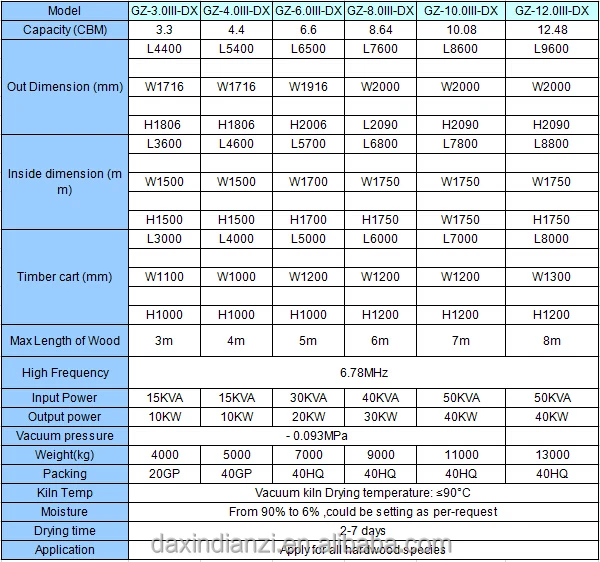

1)Specification of the machine:





 2)Working Principles



The drying principle



High vacuum timber dryer adopts high frequency drying, inside and outside of wood timber is heated

at same time, uniform heating, high speed drying, short time and good quality, which can keep the timber

nature color, meanwhile, the timber is aerated under the vacuum environment, non-cracking, especially

applied for the thick and hard precious wood, wet wood.

Temperature and  accuracy testingadopts optical fiber testing, it is effectively avoid High frequency

interfering measuring instrument.It adopts weight method and Kiln moisture meter, which cantest moisture

 rate online

The container is handled by professional chemical anticorrosion, no rustiness, so that save the container

maintenance and avoid pollute the timber

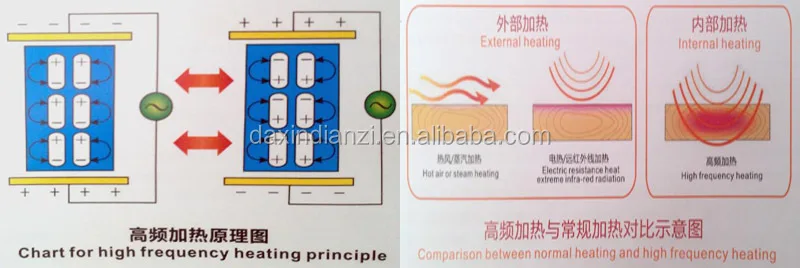

High frequency generator heating principle

HF generator is the core of dielectric heating equipment. It applies three phase alternating current to form

frequency oscillation electric field .Under this high frequency electric field, the molecules like water .glue

or PVC will be polarized and form two poles. The electric field will change pole rapidly meanwhile all the

molecules will also move in very high speed. The friction and impact among molecules can make material

get heated in short . time. Then the water will be vaporized, glue becomes solid and PVC gets softened  rapidly.

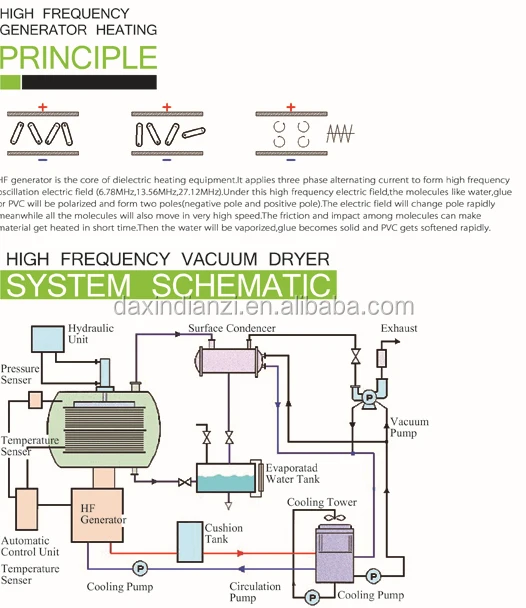

working principle



 vacuum wood dryer principle.jpg



3)Applications of DXHF vacuum dryer

Normal solid wood;

Rose wood,hard wood, verawood,red sandalwood, large square beams etc.;

Thin plane cutting board,peeling veneer floor



4)Advantages of High frequency vacuum wood dryer

1. Heating fast and uniformly, fast drying(:more than10 times faster than conventional steam dryer);

2. Saving labor, cost and drying time;

3. Full-automatic, easy to control and operate; flexible and simple;

4. High outturn percentage, no crack, no deformation;

5. Environmental protection;

6. New square design tank increase the availability of the inner space;

7. Bacteria and worm killing, high outturn percentage ;

8. Drying apply for all kinds of wood

The company has complete team to design, research and manufacture. The equipments are widely used in furniture  manufacturing,  wood drying, Integrated Wood,  scientific wood and bent  wood processing  industry.

The equipments from our company are exported to more than 30 countries and regions around the world. In 2003, our firm successfully passed ISO9001 & patent certification,which has greatly improved the general management  level. We believe customer  first, service first, leading technology and excellent reputation.

To provide customers with the most advanced machinery and a full efficient customer service.Hope to relate long business friendship and cooperation.





Packaging & Shipping

 reinforcement measure03.jpgshipped  by container .jpg



Detailed Images




Certifications

certificate of high frequency vacuum wood dryer machine



Warranty



Engineers available to service total set of machine overseas for one year.
Every component is free of charge if it is broken because of the machine itself for one year.



Get more information(Click) :

Wood dryer specification .jpg









Our Services



We highly appreciate your interest in our machine,so any inquiries ,ideas  or suggestions  will be  considered carefully before we reply and contact you with  more information .



Tel:+86-0311-89836929

Welcome your inquiry .
