Quick Details

  • Condition: New
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: DAXIN
  • Model Number: DX-8.0III-DX
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: PLC Automatic Controlled Wood/Timber Vacuum Drying Machine
  • Capacity: 8.64 cubic meter
  • out dimension: 7600*2000*2090mm
  • inside dimension: 6800*1750*1750mm
  • timber cart: 6000*1200*1200mm
  • max length of wood: 6m
  • high frequency: 6.78Mhz
  • Input power: 40KVA
  • Voltage: 380V 50HZ 3phase or customized
  • Application: all kinds of wood

Packaging & Delivery

Packaging Details Standard export packing, plastic and foam, fixed by wood pallet for Vacuum Drying Machine
Delivery Time 30 working days after deposit for Vacuum Drying Machine
Product Description

PLC Automatic Controlled Wood/Timber Vacuum Drying Machine


DX HIGH FREQUENCY VACUUM WOOD DRYER  is a new generation wood drying equipment.

This machine is the result of design combining high frequency medium heating technology and vacuum cryogenic dehydration technology, greatly reduced drying time.


This equipment adopts PLC programming control, drying chamber equipped with 80mm thick thermal insulating layer and inside & outside two sets stainless steel condensation system,

it is more convenient to choose lumber drying procedure and applicable for drying all kinds of wood.

The Main control valve adopts pneumatic valve technology, this technology have advantages like steady, long service life and low failure rate.

equipped with 80mm thick thermal insulating layer and inside & outside two sets stainless steel condensation system.


The main advantages of our wood drying equipment: short drying cycle, super quality, cost effective and eco-friendly.






Benefit you can count on:

1.Vacuum Drying — 60 starting to vaporize , which can reduce wood cracking and deformation while achieving low temperature drying

2.Warp Deformation Recovering --- Wood clamped by hydraulic system before drying, warping deformation to be recovered when soften , making outturn greatly improving and make easy palletizing

3.Quick Heating --- No need heat conduction, inside and outside of wood timber are heated at the same time

4.Fast Dehydration--- During the heating process, stepped temperature difference between inside and outside of wood can speed up the water movement from inside wood to outside wood

5.High Quality--- Avoid outside & inside cracking and color change, by taking control of heating speed, relative vacuum degree and condensing rate.

6.Good Adaptability---It can achieve both low temperature and high temperature drying, also can eliminate stress , solidify resin and apply to dry almost all kinds of wood

7.Full-automatic & Easy operation --- Automatic feeding and discharging device , drying proceeding under unattended mode

8.Cost Saving--- Low dry shrinkage and material saving Sterilization function & Eco-friendly





Vacuum wood drying kiln to dry all kinds of wood with short time
1.More size 3-12 m3 to be chosen
2.Low power to save cost

Choose High frequency vacuum wood dryer machine , Save your time and money!



Our Services

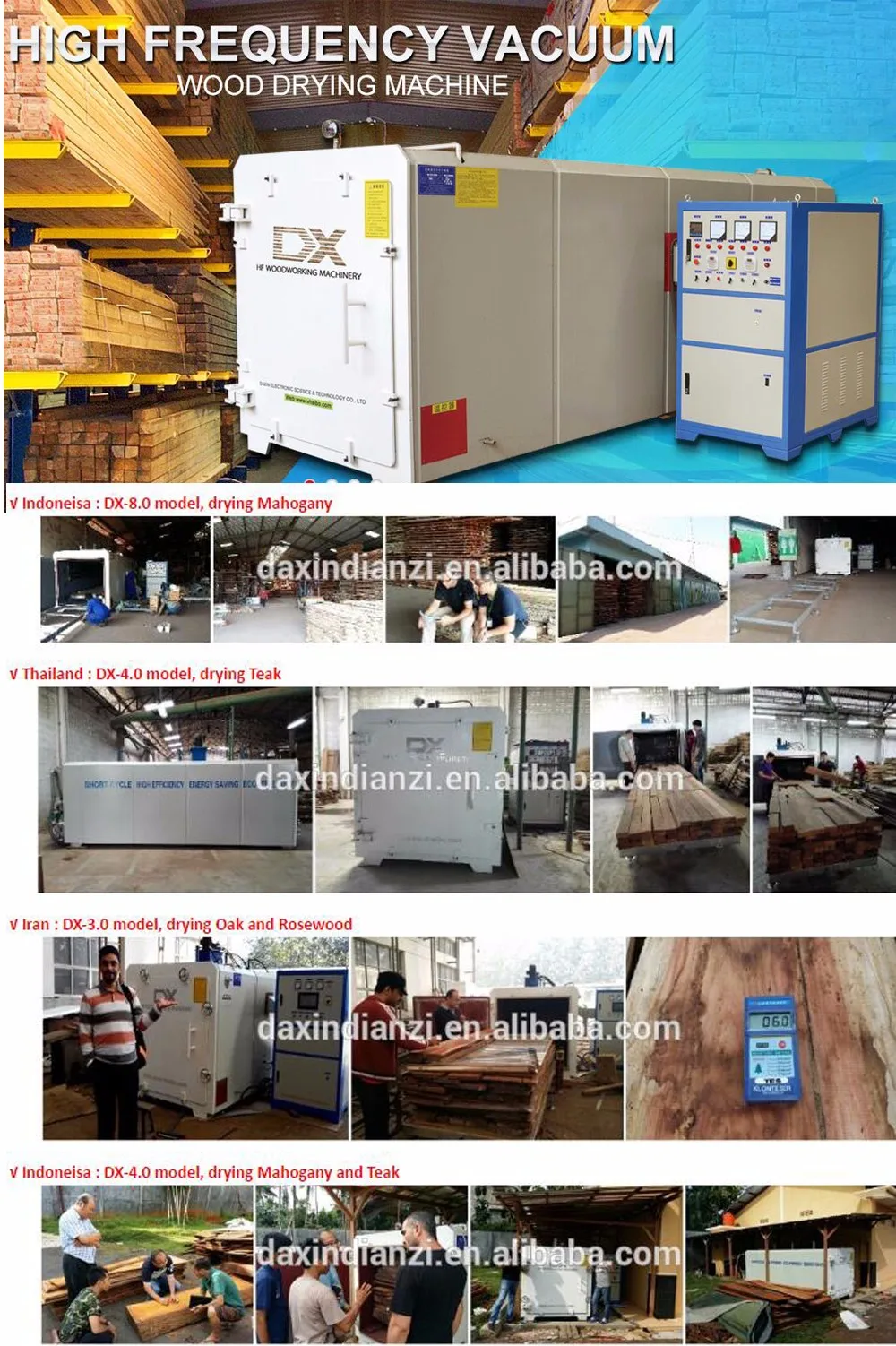

In the past years, we successfully exported to the USA, Canada, UK, Indonesia, Thailand, Vietnam, Africa, Europe, and New Zealand, Australia, Iran etc.
Our Professional engineers can provide overseas installation, training operation and Perfect after-sales service and maintenance.
