Quick Details

  • Condition: New
  • Type: Vacuum Drying Equipment
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: DX
  • Model Number: DX-6.0III-DX
  • Voltage: As your local city
  • Power(W): 20kw
  • Dimension(L*W*H): 6500*1916*2006mm
  • Weight: 7000kg
  • Certification: CE ISO
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

Delivery Time within 30 woking days
Product Description

High Frequency Vacuum Wood Machine

High frequency vacuum timber dryer adopts high frequency drying, inside and outside of wood timber is heated at same time, uniform heating, high speed drying, short time and good quality, which may keep the timber nature color, meanwhile, the timber is aerated under the vacuum environment, non-cracking, especially applied for the thick and hard precious wood, wet wood.


Specifications of DX-6.0III-DX
Capacity(CBM)
6.6
Out Dimension
6500*1916*2006mm
Inside Dimension
5700*1700*1700*mm
Timber Cart
5000*1200*1100mm
Max Length of Wood
5m
High Frequency
6.78MHZ
Weight
7000kg

Main Features

Advantages:

Quick heating-It does not require heat conduction, inside and outside of wood timber is heated at same time;

Fast dehydration-During the heating process, there is staged temperature difference between inside and outside of wood timber this will speed up the water movement from inside wood to outside wood; Drying time is 1/5 compare with traditional wood drying method.

High quality-there will be no cracklings, bending or color change by taking control of heating speed, relative vacuum degree & condensing rate.

Strong adaptability-High frequency-Vacuum drying can realize not only cold drying but hot drying, help to eliminate stress, solidify resin. This applies to dry all kinds of wood

High-usage-Square designed drying box supplies more space utilization. It is suitable for different shaped wood

Cost saving -Fast temperature raise and higher space utilization takes lower cost than traditional ways.

Eco-friendly-This machine does not pollute the environment

Full-automatic-UA Unattended Automatic drying process, very easy to handle

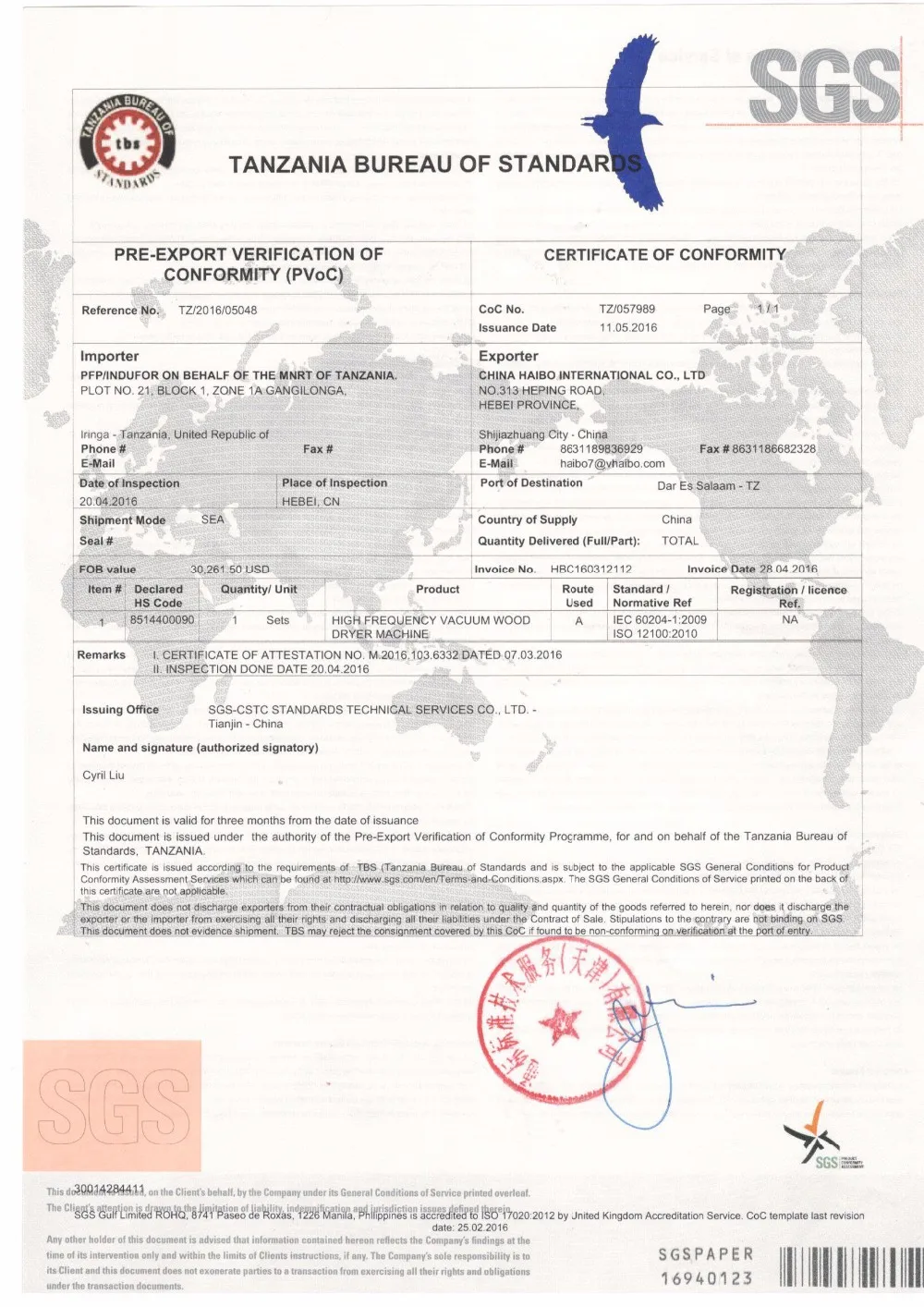

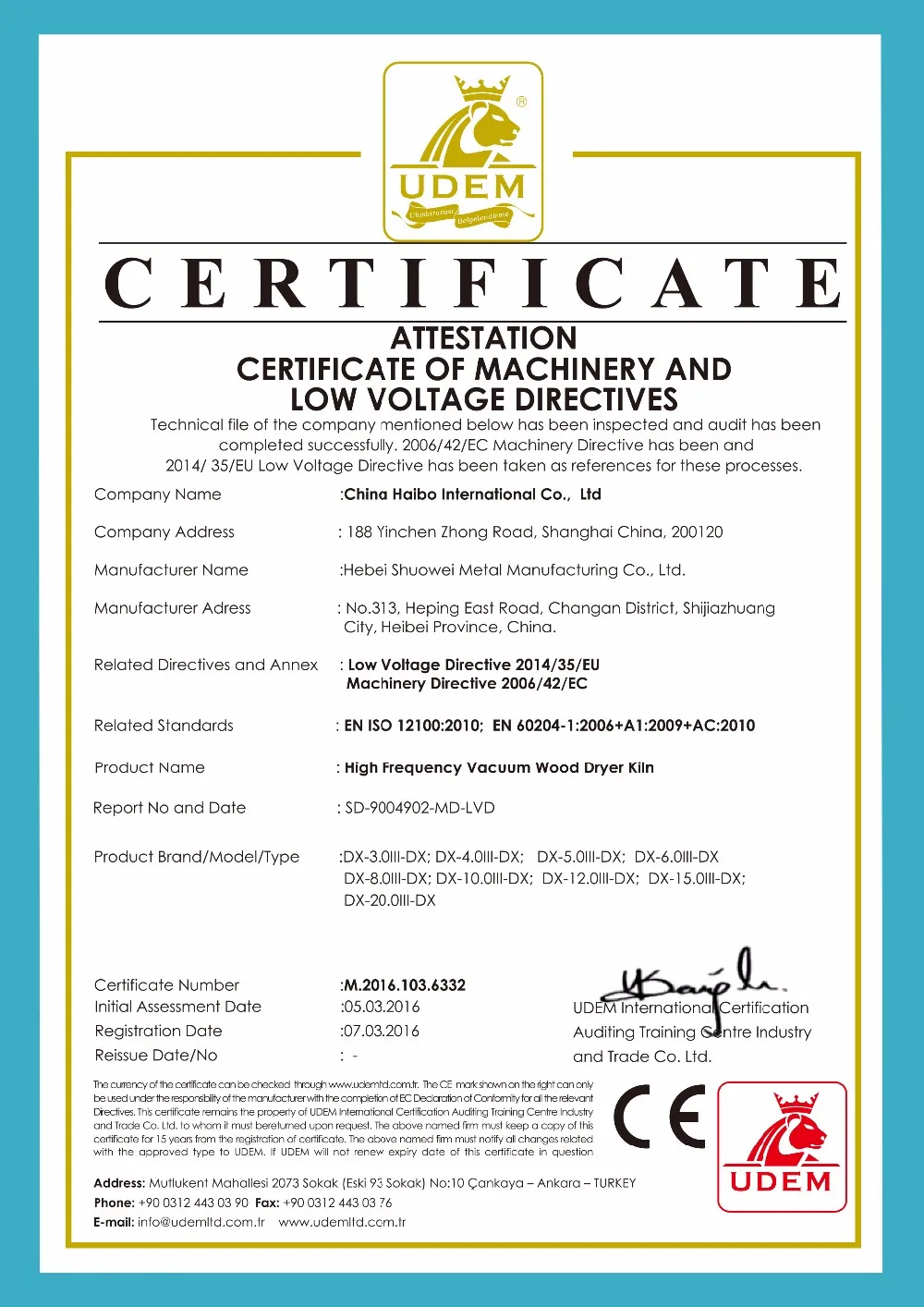

Certifications

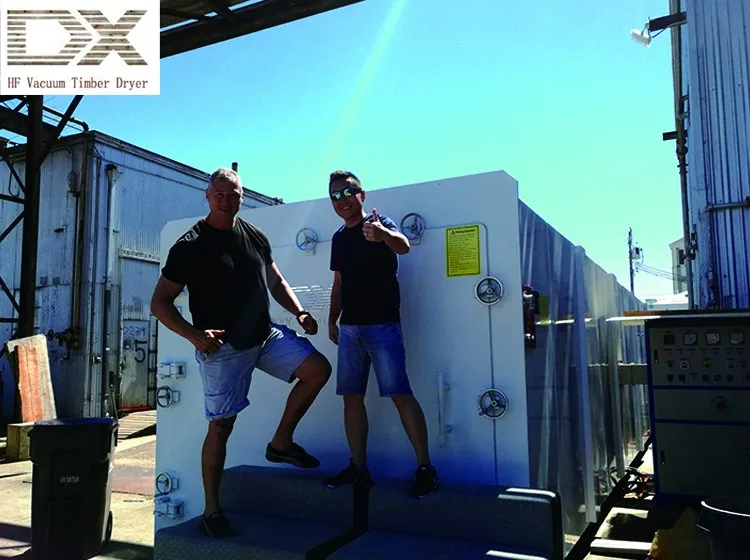

Detailed Images

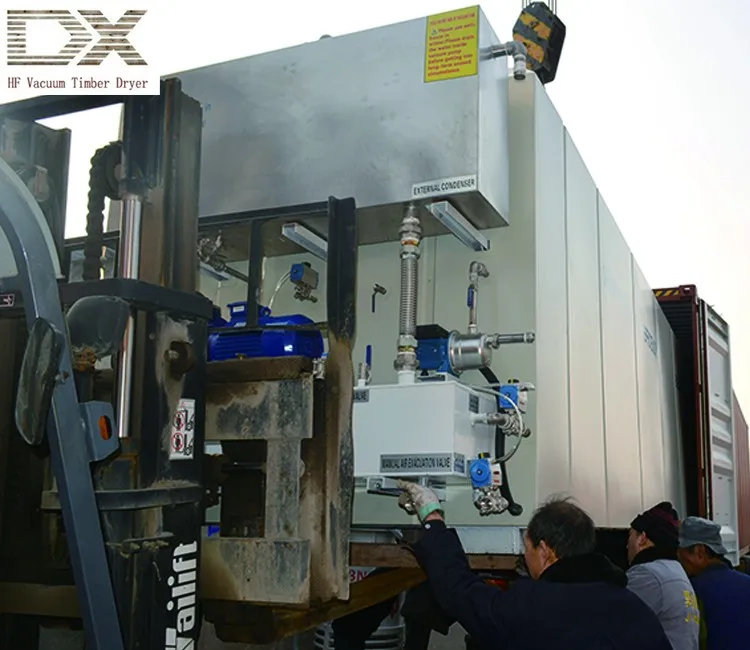

High frequency vacuum drying oven, high strength steel structural square type design, good to keep vacuum and make the best drying quality; this type oven is more stable, and the capacity is much bigger, save space and costs. We have National Patent Approval. Only us can produce Square Drying Oven.

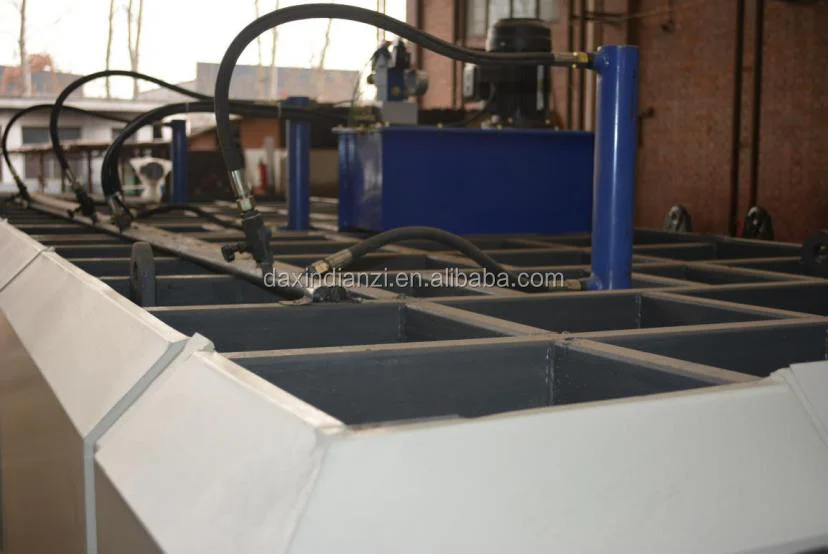

Advanced and high strength press system to avoid any bend and break, and to ensure the drying quality.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

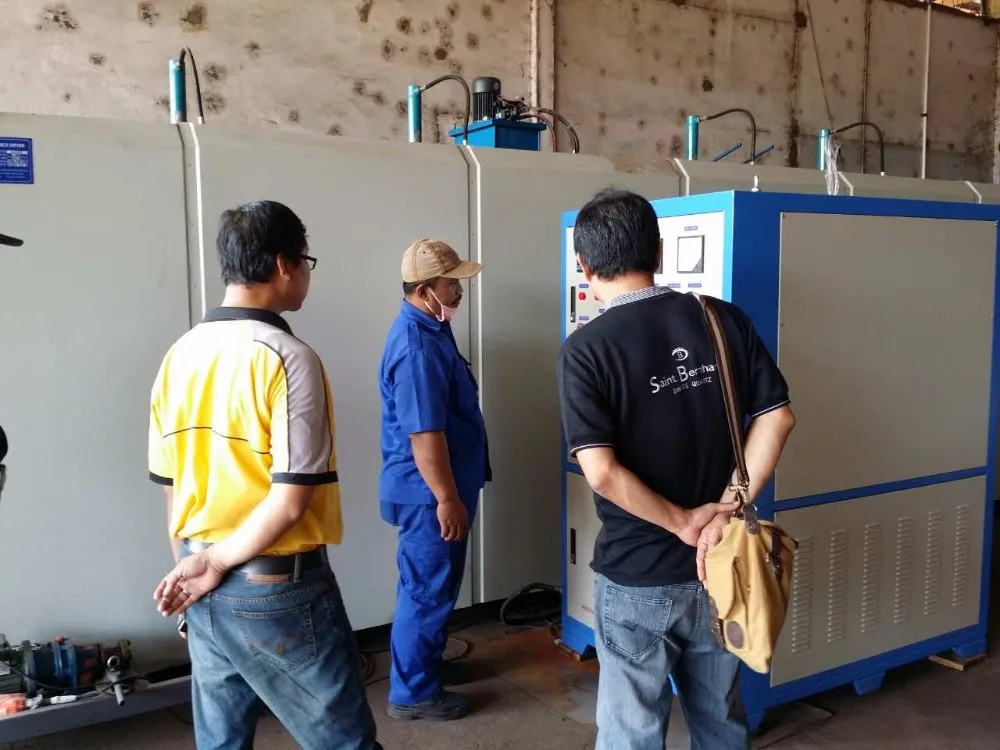

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
