high quality combination woodworking machines wood drying kiln/drying kiln machine

FOB Reference Price:Get Latest Price
US $30,000-70,000 / Sets | 1 Set/Sets timber drying kiln (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hebei, China (Mainland)
Brand Name:
DAXIN
Model Number:
DX-10.0lll-DX
Product name:
Top quality 10CBM timber drying kiln , wood drying kiln for sale
Function:
kiln for Drying timber
Application:
Wood Process-Drying timber
Outside Demension:
8600*2000*2090mm
Timber cart:
7000*1200*1200mm
Max length:
7 M timber
Max width:
1.2M timber
Keywords:
timber drying kiln
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea
Port
XINGANG
Lead Time :
30 days after deposite
Product Description

 Top quality 10CBM timber drying kiln , wood drying kiln for sale





DX HIGH FREQUENCY VACUUM WOOD DRYER  is a new generation wood drying equipment.

This machine is the result of design combining high frequency medium heating technology and vacuum cryogenic dehydration technology, greatly reduced drying time.



Item name Top quality 10CBM timber drying kiln , wood drying kiln for sale
ModelDX-10.0lll-DX
Capacity10.24CBM
Drying period4~8days
high frquency 6.78MHz
Type of drying woodall (hardwood drying ,soft lumber )
custome countryUSA ,Canada,UK and so on
Product parts

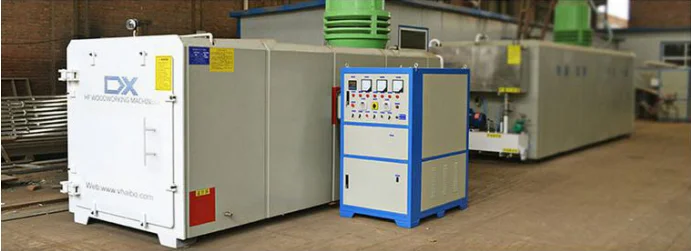

Three main parts of HF vacuum timber drying kiln



 High strength steel structural vacuum square oven



 High frequency generator



 Cooling tower

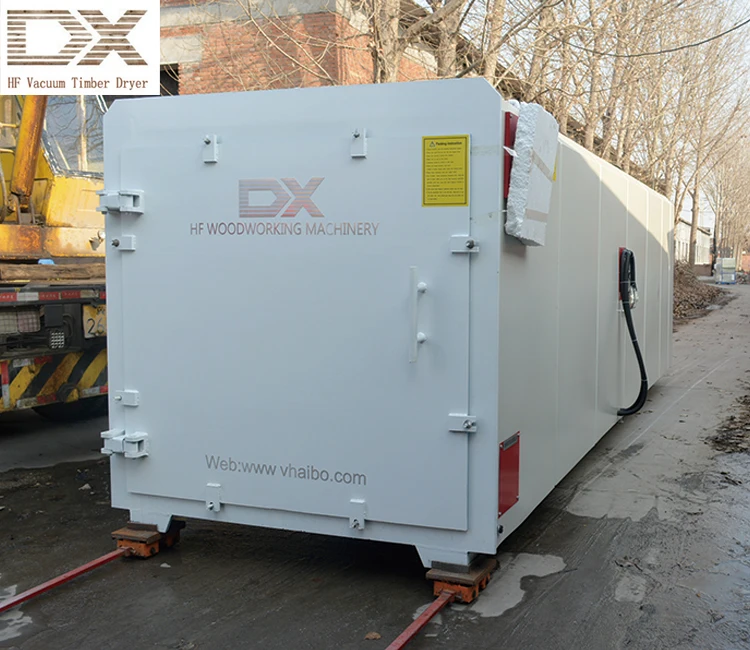

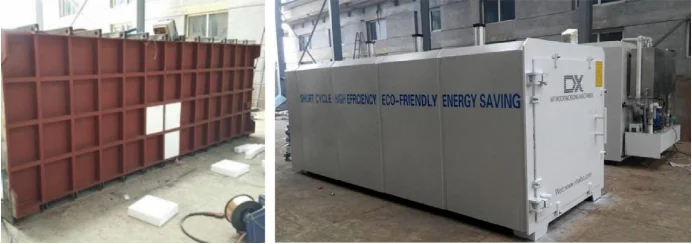

1. High strength steel structural oven body.



This makes the whole machine stronger and more leak-proof of vacuum.

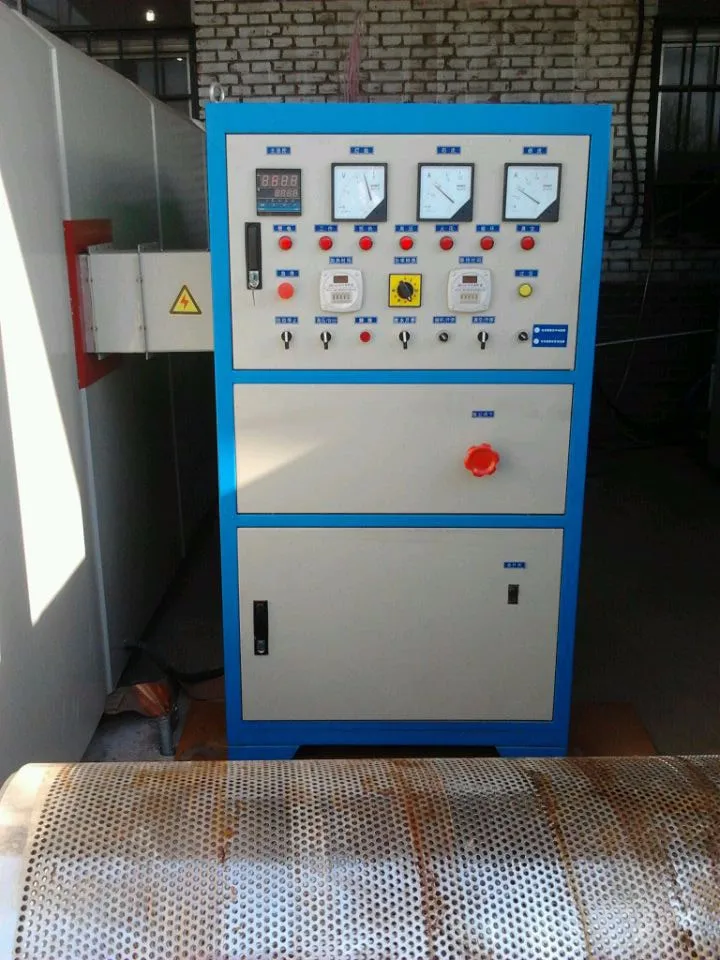

2. High frequency generator



This is the core of this machine, all procedures and main technology are inside, Including PLC,electric valve etc.





3. Cooling tower



This part is mainly used in hot weather, the main usage is to cool the internal temperature, guarantee the drying speed and quality.



4. Timber cart



We have both full-auto feeding mode and manual feeding model, but the full-auto is only used on 8/10/12/15cbm models, because the smaller doesn’t need this, the loading quantity is enough to be push into the oven by workers.



5. Stainless condenser



This parts are also to reduce the internal temperature when drying, it will let the steam change into water droplet, to guarantee the drying speed and quality.



 6. Pressure system



We have both hydraulic and pneumatic, that means common oil pressure system and air pressure system, they are to prevent the wood becoming bend and crack.








Packaging & Shipping



FAQ



Advantages of our wood dryer machine:
1. High frequency heating. A new technology totally different from the traditional conductive heating.Heating wood from inside to outside because HF wave can penetrate thick wood.Where there is moisture,there is high frequency.
2. Vacuum condition. It can create a minus pressure,the moisture will be sucked out fastly. The water will vapor in a more lower temperature.It realize low temperature drying,more suitable to wood easy to spark.
3. PLC control system. The PLC comes with common hardwood drying program ready for use. The dryer can run with set program without person guiding or control, gives you perfect drying result without cracking,bending or color change.
4. Application. It is suitable for all kind of wood,from normal solid wood,like teak, mahogany, beech, oak, pine, walnut, merbau, cypress and so on, to veneer laminate, avoiding shrinking and bending.
