Quick Details

  • Condition: New
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: DX
  • Model Number: DX-10.0III-DX
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: slab drying machine|vacuum wood dryer|timber dryer
  • Model: DX-10III-DX
  • Capacity: 10.08cbm
  • Out dimension: 7600x2000x2090mm
  • Inside dimension: 7800x1750x1750mm
  • Timber cart: 7000x1200x1200mm
  • Max lenght of wood: 7m
  • Weight: 11000kgs
  • Packing: 1x40HQ

Packaging & Delivery

Packaging Details Standard export seaworthy packing
Delivery Time 15-20 days after receiving the deposit

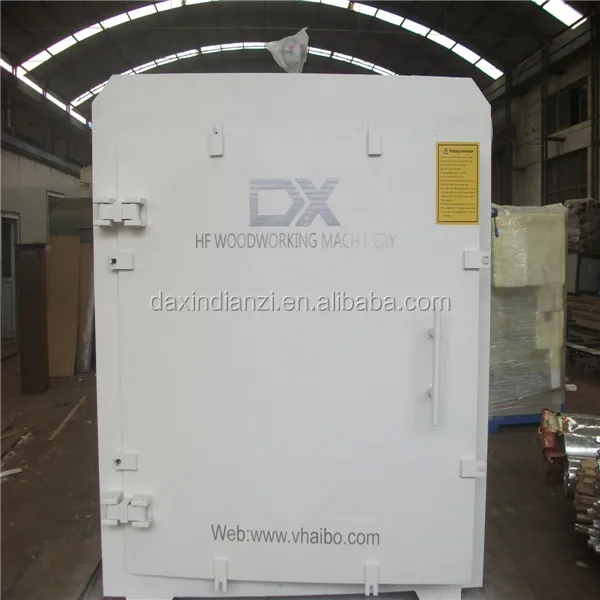

Timber dryer kiln with vacuum heat press

Shijiazhuang Development Zone Daxin Electronic Science And Technology Co.,

Ltd. is a professional firm specialized in the production of High-frequency Medium

Heating Equipment, which is widely used in the areas of furniture, wood drying,

Integrated Wood, scientific wood and bent wood. In 2003, our firm successfully

passed ISO9001 certification, which has greatly improved the general management level.


Main data of High frequency vacuum wood dryer machine

Power:380V 50HZ Three-phase four-wire system
Type of work:high-frequency heating,
vacuum dehydration
External size(m):7.6(L)×2.1(W)×2.2(H)
Inner size(m):6(L)×1.5(W)×1.1(H)
Input power:50 (KW)
Working vacuum:0~-0.09MPa
Heating mode:dielectric type
Applicable materials:all kinds of wood
Temperature range:depending on the technology needs
Dry medium mobile:direct heat
Applicable field:wood drying
Water evaporation
310 KG / 24 hours
(conditions: high frequency power 40 KW,
vacuum degree:-0.08,
condensing temperature: 30 centigrade)

The advantages of the High frequency vacuum wood dryer:

Quick heating: It does not require heat conductioninside and outside of wood timber is

heated at same time.


Fast dehydrationDuring the heating process, there is staged temperature difference between

inside and outside of wood timber, this will speed up the water movement from inside wood

to outside wood (the principle is contrary to the conventional heating).


Good quality: there will be no cracking, bending and color change by taking control of

 heating speed, relative vacuum degree & condensing rate.


Strong adaptability: High frequency vacuum drying can realize not only cold drying but hot

 drying, help to eliminate stress, solidify resin. This applies to dry all kinds of wood.


High usage: Square designed drying box supplies more space utilization.  It is suitable for

different shaped wood.


Cost savingFast temperature raise and higher space utilization takes lower cost than

traditional ways.


Eco-friendlyThis machine does not pollute the environment.


Full-automaticUA Unattended Automatic drying process, very easy to handle.
