Quick Details

  • Condition: New
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: DX
  • Model Number: DX-3.0III-DX
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: timber drying tank for furniture wood
  • Efficient capacity: 3.3CBM
  • Drying principle: High frequency drying
  • Temperature and accuracy testing: Optical fiber testing
  • Moisture rate testing: Weight method and Kiln moisture meter
  • Color change: No color change after drying
  • Diathermy way: Through heating
  • Drying temperature: Can be high to low
  • Drying quality: without bending and broken
  • Application: All kinds of wood

Packaging & Delivery

Packaging Details Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea
Delivery Time within 15 days

mesin pengeringan kayu for furniture wood

DXHF has engaged in HF field for more than 20 years and is the first brand in China.

Cooperation and exchange technology with international HF expert can supply yearly the top quality equipment and quote reasonably.

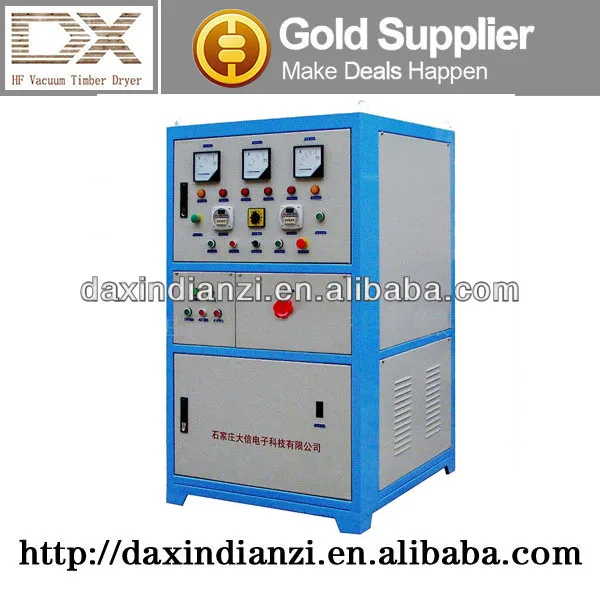

DXHF vacuum dryer has two parts, one part is the high frequency generator and the other part is the vacuum dryer oven.


1)  Working Principles

High frequency generator heating principle
HF generator is the core of dielectric heating equipment. It applies three phase alternating current to form frequency oscillation electric field .Under this high frequency electric field, the molecules like water .glue or PVC will be polarized and form two poles. The electric field will change pole rapidly meanwhile all the molecules will also move in very high speed. The friction and impact among molecules can make material get heated in short time. Then the water will be vaporized, glue becomes solid and PVC gets softened rapidly.


The drying principle

High vacuum timber dryer adopts high frequency drying, inside and outside of wood timber is heated at same time, uniform heating, high speed drying, short time and good quality, which can keep the timber nature color, meanwhile, the timber is aerated under the vacuum environment, non-cracking, especially applied for the thick and hard precious wood, wet wood.

temperature and  accuracy testing adopts optical fiber testing, it is effectively avoid High frequency interfering measuring instrument.

It adopts weight method and Kiln moisture meter, which can test moisture rate online

The container is handled by professional chemical anticorrosion, no rustiness, so that save the container maintenance and avoid pollute the timber


2) Applications of DXHF vacuum dryer

  1. Normal solid wood;
  2. Rose wood,hard wood, verawood,red sandalwood, large square beams etc.;
  3. Thin plane cutting board,peeling veneer floor

3)Advantages of High frequency vacuum wood dryer

1. Heating fast and uniformly, fast drying(more than10 times faster than conventional steam dryer);

2. Saving labor, cost and drying time

3. Full-automatic, easy to control and operate; flexible and simple;

4. High outturn percentage, no crack, no deformation;

5. Environmental protection ;

6. New square design tank increase the availability of the inner space;

7. Bacteria and worm killing, high outturn percentage ;

8. Drying apply for all kinds of wood


High frequency vacuum

Microwave vacuum

Heating method

High frequency


Heating speed



Diathermy way

through heating

The internal and external heating

Heating area


Outside high, inside low temperature

Technology process



Drying temperature

Can be high to low


Drying quality


Maybe some damage




comprehensive evaluation




4)The specifications of 3CBM High frecuency vacuum wood dryer




High Frequency Vacuum Wood Dryer Machine

Type of work:

high-frequency heating, vacuum dehydration


3.3cubic meter

Inside dimension:


Outside dimension:


Timber Cart


Total input power:


Output power:




Drying medium:

Direct heat

Heating mode:

Dielectric type

Applicable materials:

All kinds of wood

Temperature range:

Depending on the technology needs

Max Length of Wood:


Water evaporation capacity

90 KG / 24 hours

Validity of this offer:

30 working days

Delivery time:

30days after receiving advanced payment

Payment item:

T/T 50% in advance +T/T 50% before leaving the factory


20 GP container


and debugging:

Seller installs and debugs most part of machine before delivery.

Buyer should do some easy job before using it depends on detailed instructions

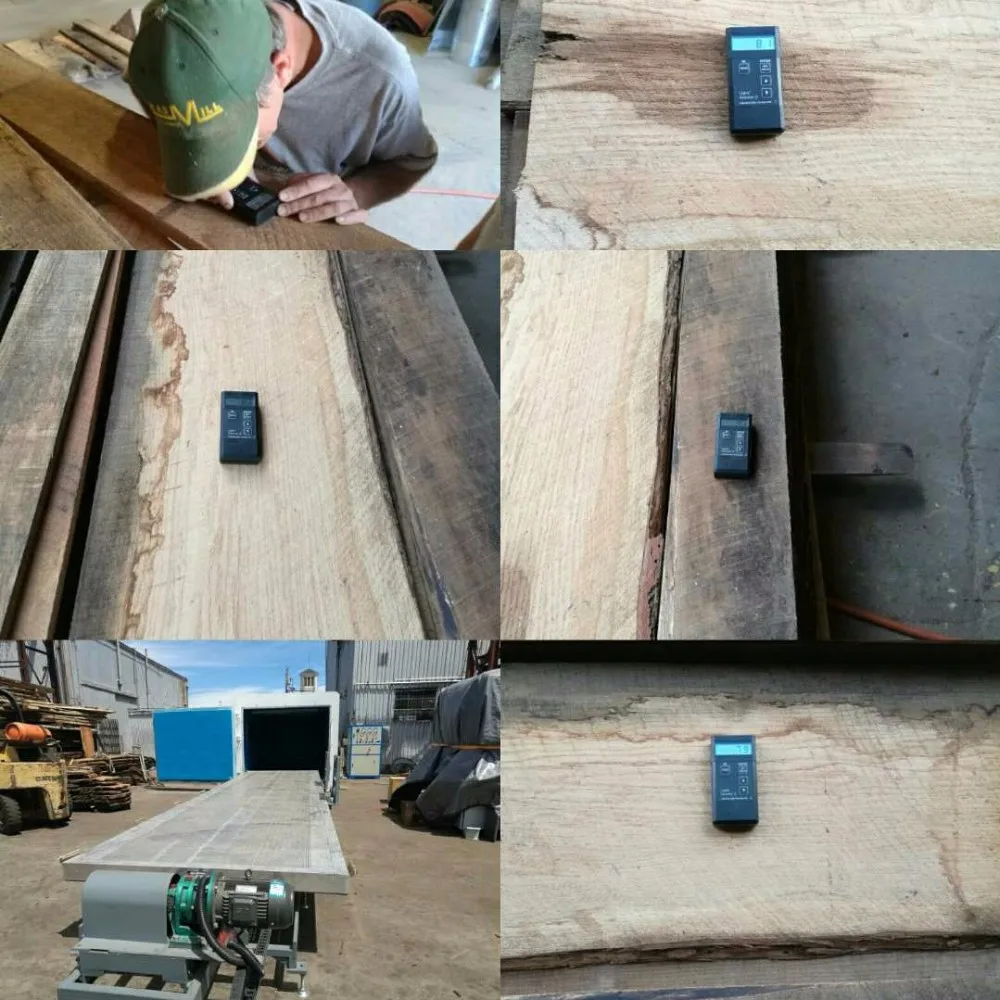

5)Sample pictures show
