Quick Details

  • Condition: New
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: DX
  • Model Number: DX-6.0III-DX
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: hot air dryer machine for wood
  • Energy: Electric
  • Generator: 20KW
  • Dryer oven: 6.60 cubic meter|different oven with different cubics
  • Dehydration rate: 20-100kg per day based on different kinds of wood
  • Patent: The squared appearance design
  • capacity: 6.6cbm
  • Weight: 7000kgs
  • Packing: 1x40HQ
  • Raw material: SS304

Packaging & Delivery

Packaging Details Standard export seaworthy packing
Delivery Time Shipped in 20 days after payment

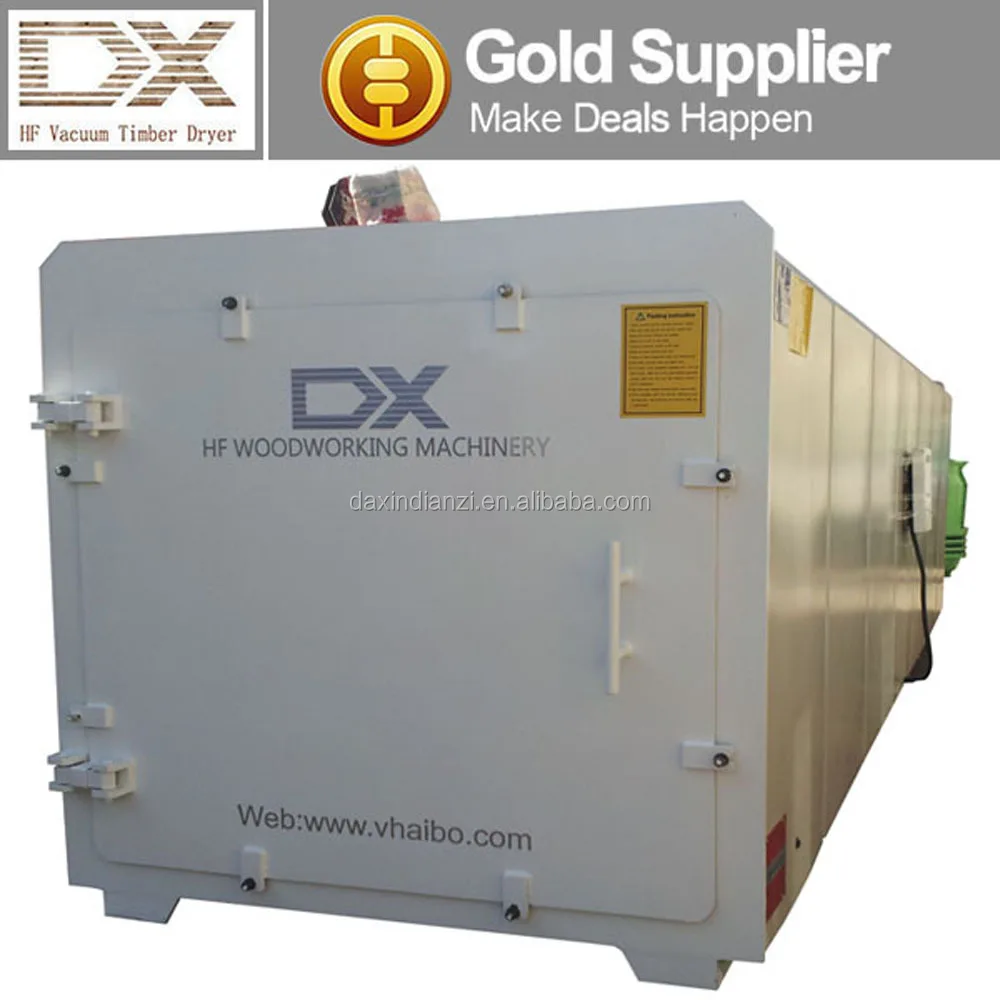

hot air dryer machine for woodyer



Daxin Electronic Science And Technology Co., Ltd. is one of the leading manufacture factory of

high frequency vacuum wood drying equipment and high frequency generator in Hebei Province,China.In this industry more than 20 years.we have the patent certification and Ce certification .



It is the newest drying technology in woodworking machinery industry.

We can supply capacity 3cbm,4cbm,6cbm,8cbm,10cbm,12cbm,15cbm,20cbm .

It sold  in Japan,Thailand,Vietnam,USA,Uganda,New Zealand,Bulgaria etc.Now very popular drying technology in China.

 Fast drying  save electric

1.High outturn percentage: it needs not to insert wooden strips in the middle of the timber; there is no cracking, no distortion, and no shrinkage in lower temperature drying process.

2.Environmental protection: no boiler, no dust, no smog, it avoids applying complex procedure and environmental pollution. Bug killed and sterilization.

3.High efficiency: it is special to dry the large section board and hard dried timber, and hard wood etc. The drying time will be shortening mostly.

4.Flexible and simple: it is suitable for small batch of production, various kinds of products, rapid turnover.

5.Capacity:3cbm,4cbm,6cbm,8cbm,10cbm,12cbm,15cbm ,20cbm .

 If any interest, please contact us immediately.

 Waiting for your reply.



More technology data (for example:a 4.0 cubic meter one)

Main data for High frequency vacuum wood dryer oven ( Model: GZ-4.0II-DX)

Capacity: 4.0 cubic meter

Type of work: high-frequency heating, vacuum dehydration

External size: 5330mm×1716mm×1806mm

Weight: 4300 KG

Input power: 12 KW

Dry medium: direct heat

Heating mode: dielectric type

Applicable materials: all kinds of wood

Temperature range: depending on the technology needs

Dry medium mobile: direct heat

Applications: wood drying

Water evaporation capacity: 90 KG / 24 hours (conditions: high frequency power 10 KW,

vacuum degree-0.08MPa, condensing temperature 25 °C)

Other sizes: 3/6/8/10 cubic meter or larger ones as clientcustomization

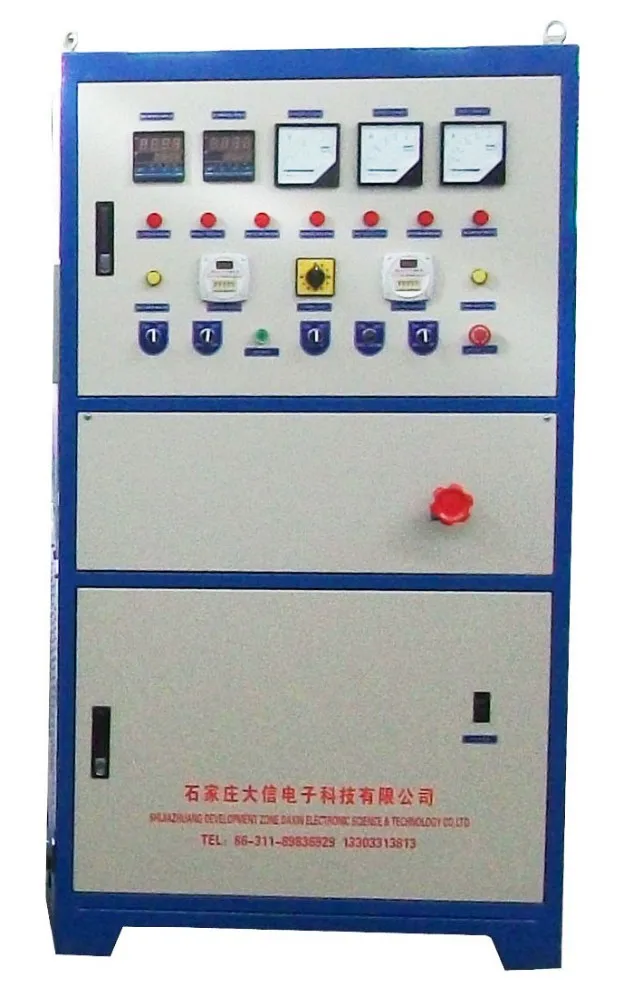

Main data for High frequency generator ( for a 4.0 cubic meter )

Power: 10KW

Operation mode: continuous

Applications: to heat and dry timber

Serviceable material: A variety of available

Area: 1 square meter

External size: 950×1050×1750mm

Weight: 200 KG

Other sizes: GJJ-20-DX(Power:20 KW) , GJJ-30-DX(Power:30 KW),
GJJ-50-DX(Power:50 KW) or others as client
customization



2 High frequency vacuum wood dryer specification:

The most important advantages:

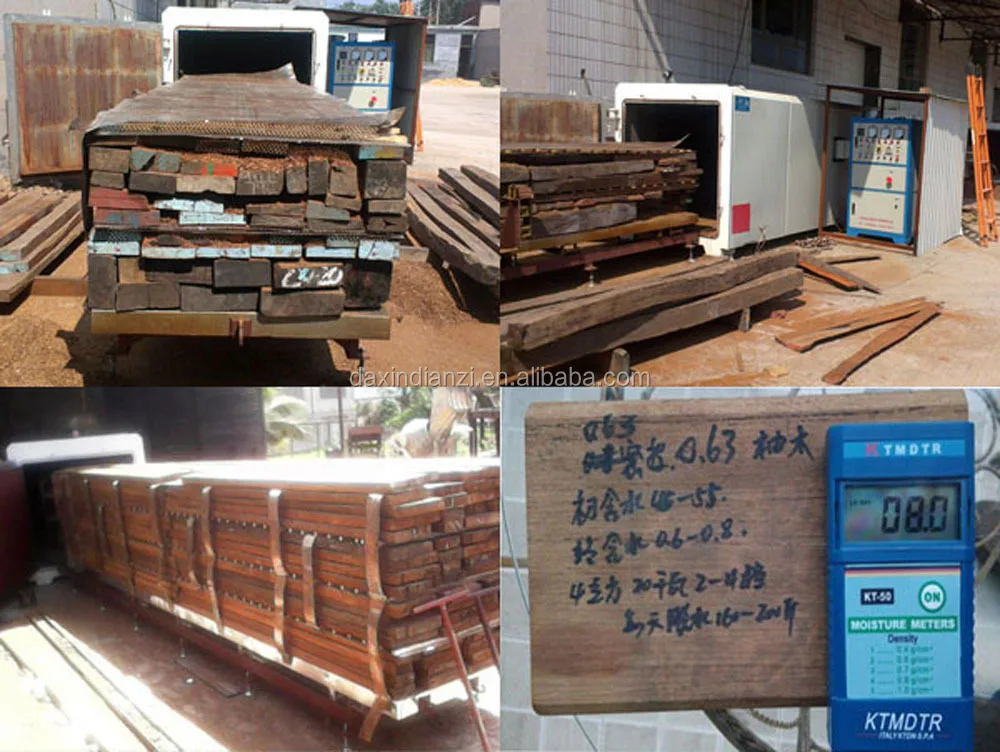

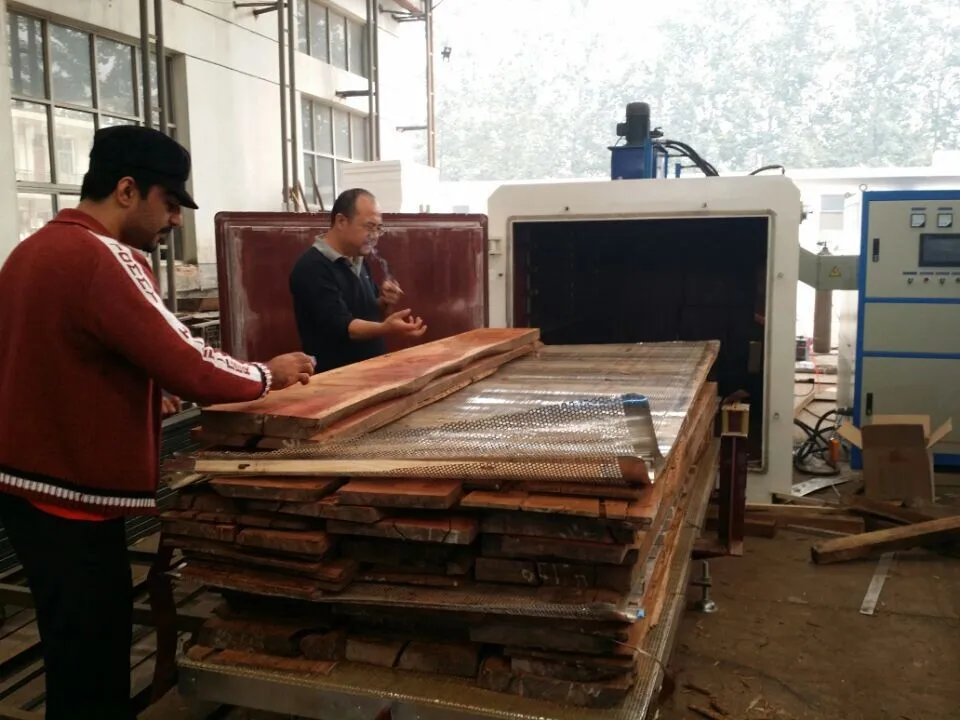

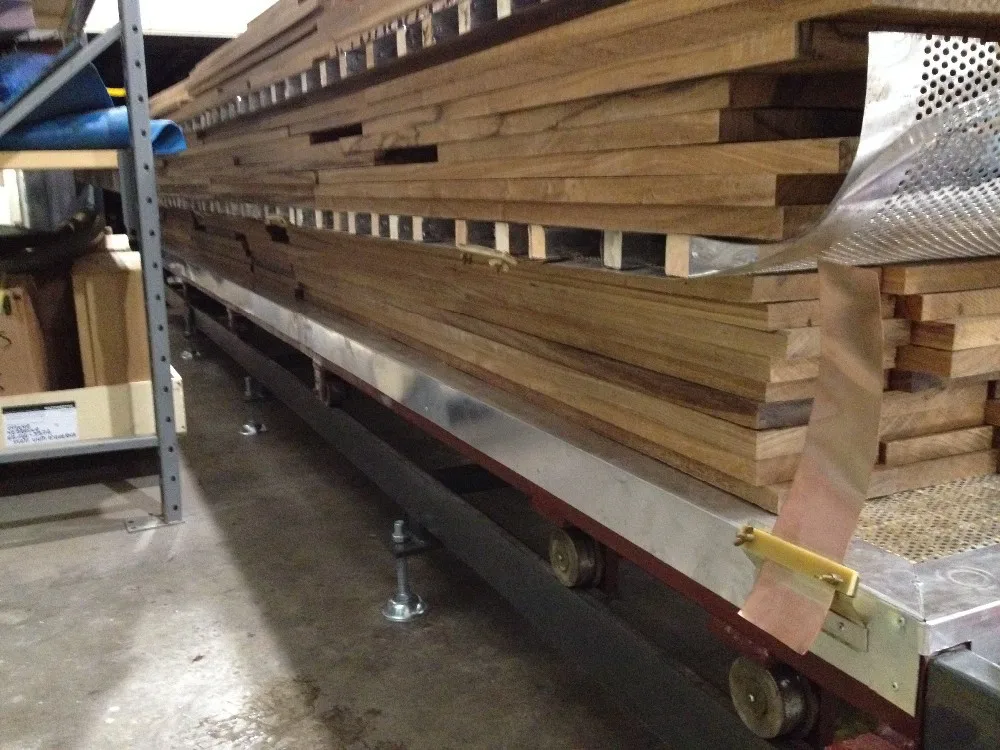

 Smaple pictures:

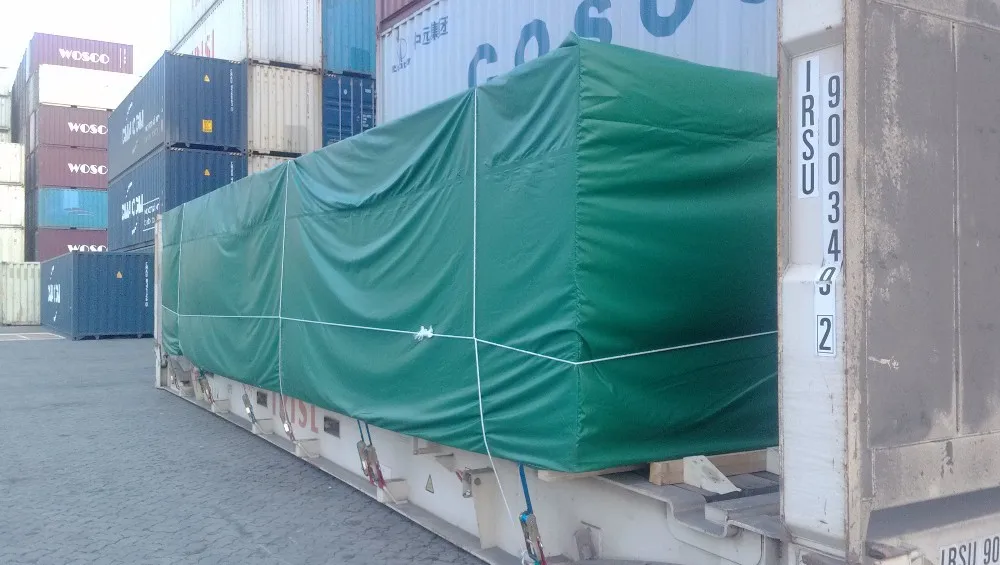

Packaging & Shipping
