Quick Details

  • Condition: New
  • Type: Vacuum Drying Equipment
  • Place of Origin: China (Mainland)
  • Brand Name: DAXIN
  • Model Number: DX-6.0III-DX
  • Power(W): 20KW
  • Dimension(L*W*H): 6500*1916*2006mm
  • Weight: 7000kg
  • Certification: CE ISO
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

Delivery Time 30 working days
Product Description

High frequency generator heating principle

HF generator is the core of dielectric heating equipment. It applies three phase alternating current to form frequency oscillation electric field. Under this high frequency electric field, the molecules like water .glue or PVC will be polarized and form two poles. The electric field will change pole rapidly meanwhile all the molecules will also move in very high speed. The friction and impact among molecules can make material get heated in short time. Then the water will be vaporized, glue becomes solid and PVC gets softened rapidly.

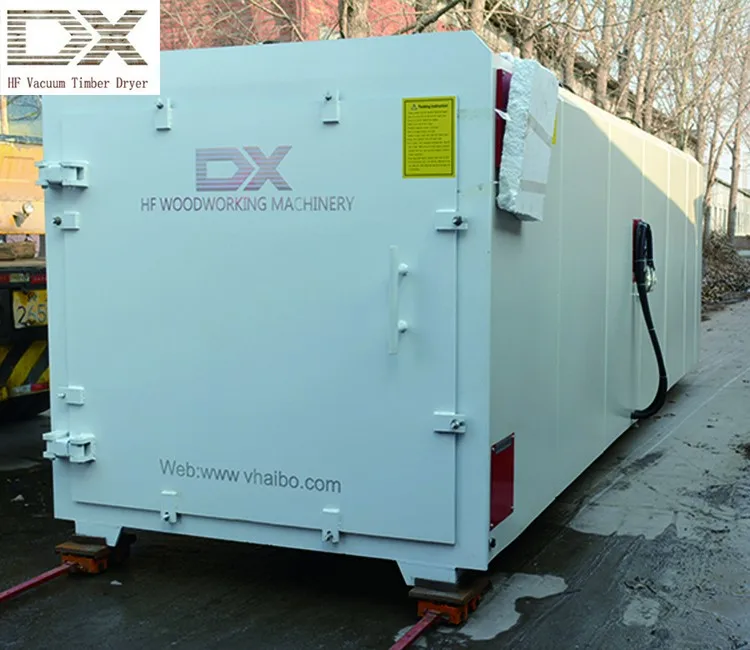

Specifications of DX-6.0III-DX HF Vacuum Dryer

Main Parts
Vacuum Drying Oven

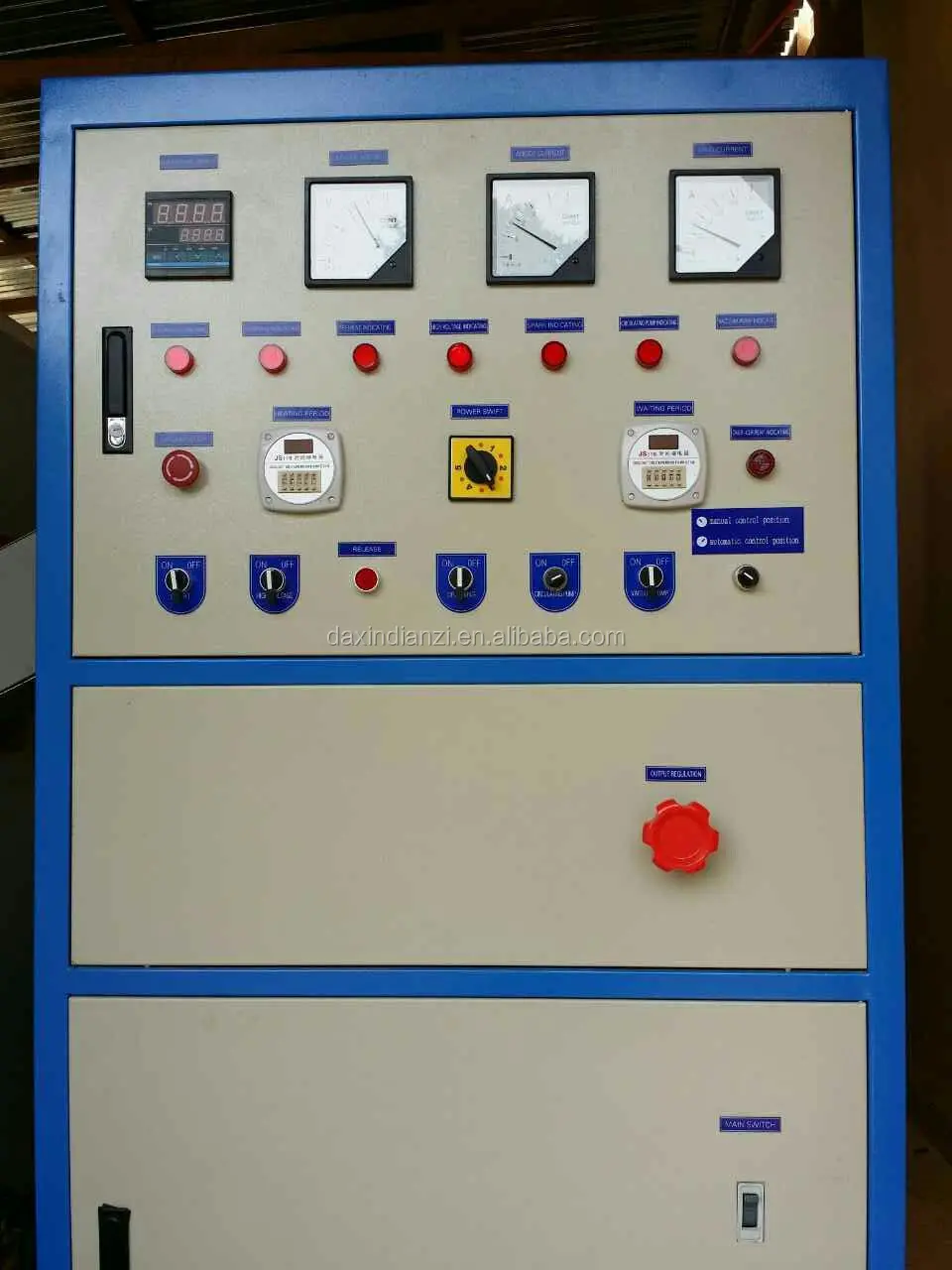

High Frequency Generator
Intelligent Cooling Tower
Capacity (CBM)
6.6
Out Dimension
6500*1916*2006mm
Inside Dimension
5700*1700*1700mm
Timber Cart
5000*1200*1100mm
Max Length of Wood
5m
High Frequency
6.78MHZ
Weight(kg)
7000

High frequency heating advantage:

1) Fast speed and high efficiency. High frequency heating is 3-5 times faster than hot steam. So it can save the power and improve the efficiency.

2) Uniform heating. High frequency heating is dielectric heating.it forms electric filed with positive and negative pole. HF power can penetrate material deeply. The water or glue molecules in the material will get heated themselves by friction among molecules. In this way, they get heated from the core material, much more uniformly.

3) Good applicability. High frequency heating can heating can heat kinds of thickness material, such as 2-3 mm veneer surface lamination.1000mm thick engineered wood gluing. And different frequency can meet different material requirement.

4) Strong controllability. High frequency heating is easy control and suitable for automatic production.

5) Environment friendly.HF heating does not need boiler;no dust,no fog,no pollution.
Certifications
Detailed Images

Machine Parts

Name: Timber Cart


We have both manual feeding model (3/4/5cbm) & full-auto feeding model (6/8/10/12/15/20cbm), because the smaller doesn’t need this, the loading quantity is enough to be push into the oven by workers. Easy to operate, save much labor cost, and improve working efficiency.


Name: Hydraulic Pressure System


Advanced and high strength press system to avoid any bend and break, and to ensure the drying quality.

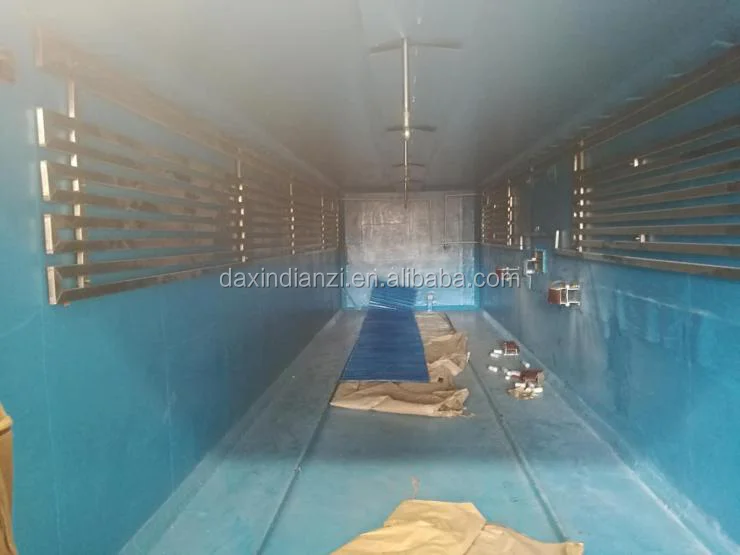

Name: Internal anti-corrosion materials-Glass fiber reinforced plastic

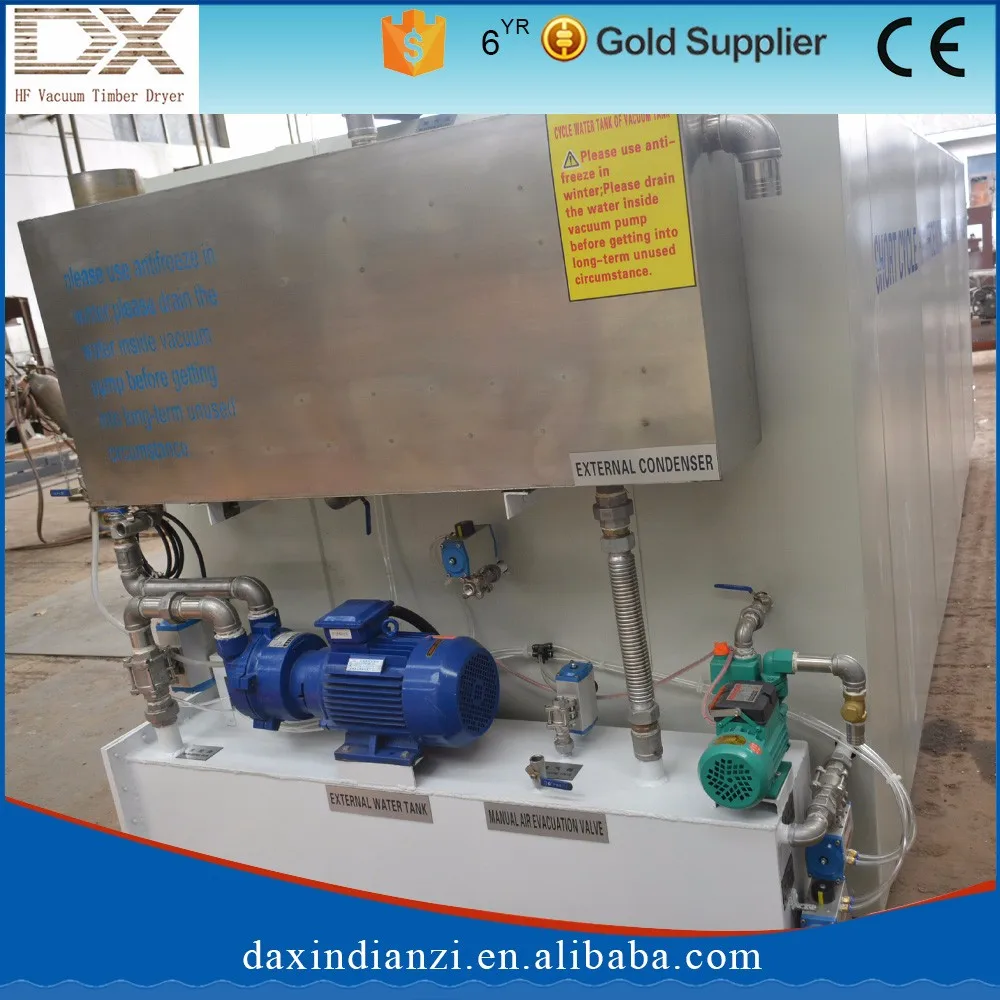

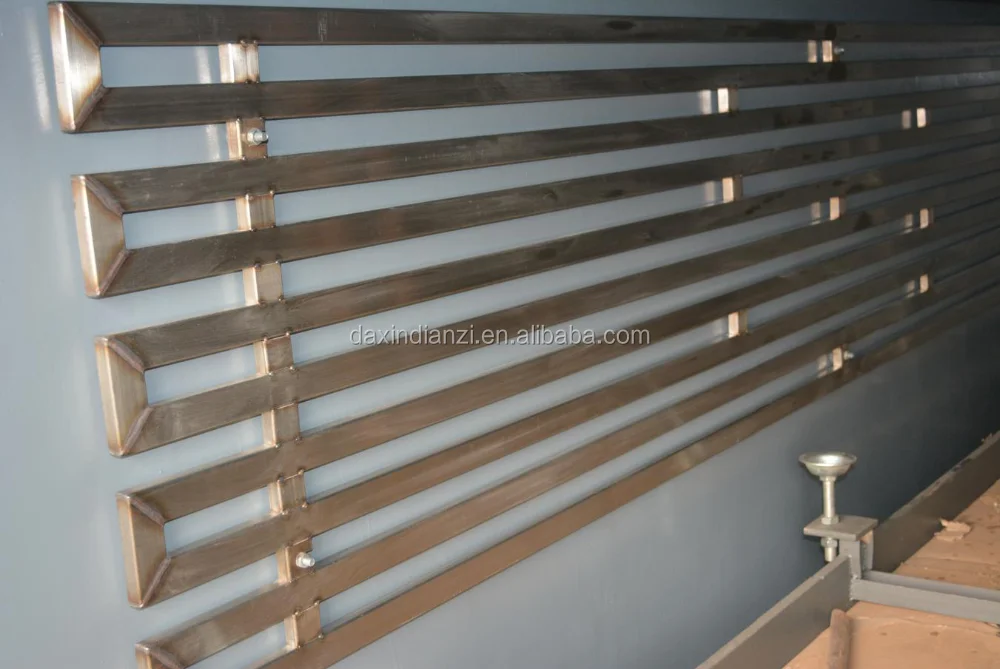

Name: This parts are also to reduce the internal temperature when drying, it will let the steam change into water droplet, to guarantee the drying speed and quality.

Our Service

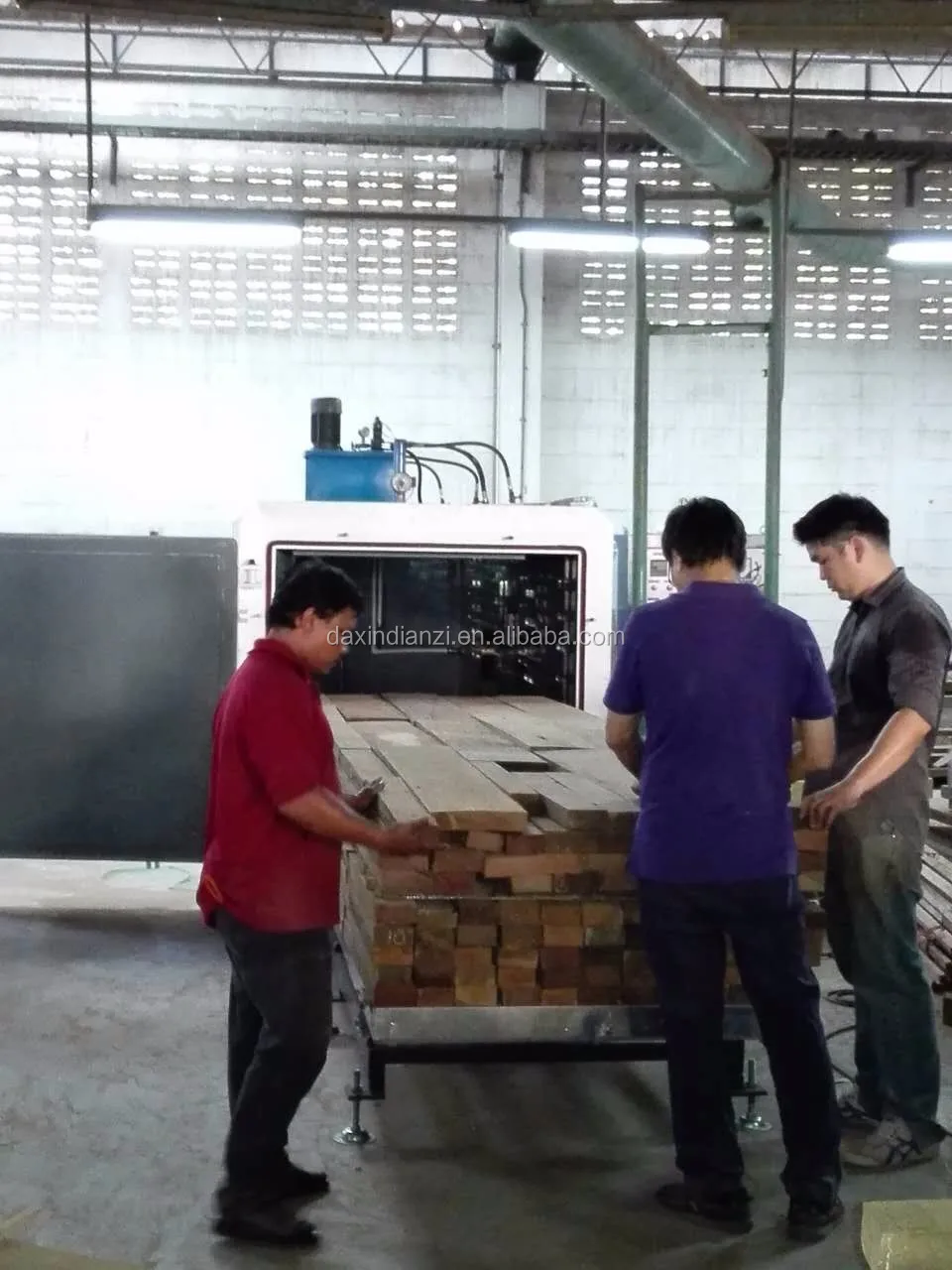

The case of Thailand customers.

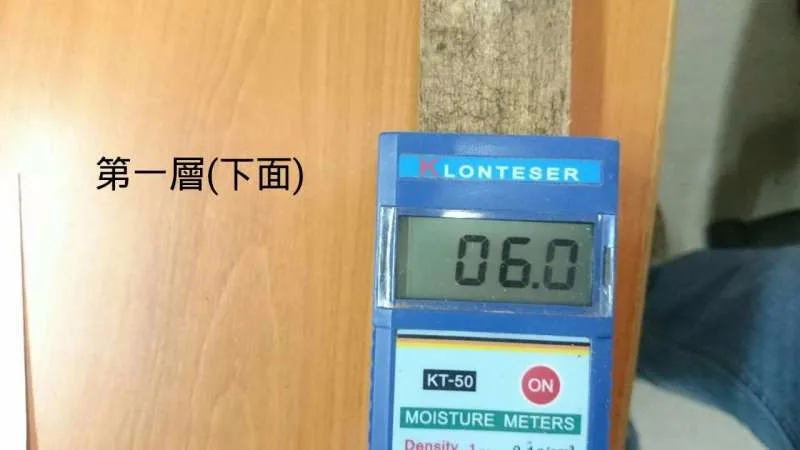

Test the water content

Packing & Delivery
