Quick Details

  • Condition: New
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: DX
  • Model Number: DX-6.0-DX
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: radio frequency vacuum timber dryer
  • effective volume: 6 cubic meter or customized
  • work industry: drying vegetable,fruit and wood
  • technology: high frequency heating tech
  • Weight: 7000KGS
  • Outside dimension: 6465*1916*2006mm
  • Inside dimension: 5600*1700*1700mm
  • work principle: high frequency heating and vacuum drying
  • Drying advantage: fast drying,cost saving,no bending,no cracking
  • heating method: high frequency uniform heating

Packaging & Delivery

Packaging Details plastic foam standard export packing
Delivery Time Shipped in 20 days after payment

radio frequency vacuum timber dryer

1: Uniform heating

2: Speedy drying without cracking

3. Square shape volume saving

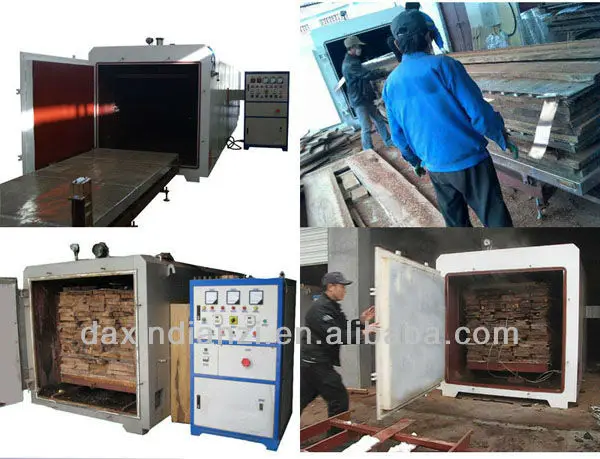

High Frequency Vacuum Wood Machine

High frequency vacuum timber dryer adopts high frequency drying, inside and outside of wood timber is heated at same time, uniform heating, high speed drying, short time and good quality, which may keep the timber nature color, meanwhile, the timber is aerated under the vacuum environment, non-cracking, especially applied for the thick and hard precious wood, wet wood.

Advantages:

Quick heating--- It does not require heat conduction, inside and outside of wood timber is heated at same time;
   Fast dehydration ---During the heating process, there is staged temperature difference between inside and outside of wood timber this will speed up the water movement from inside wood to outside wood; Drying time is 1/5 compare with traditional wood drying method.
   High quality--- there will be no cracklings, bending or color change by taking control of heating speed, relative vacuum degree & condensing rate.
   Strong adaptability---High frequency-Vacuum drying can realize not only cold drying but hot drying, help to eliminate stress, solidify resin. This applies to dry all kinds of wood
   High-usage--- Square designed drying box supplies more space utilization. It is suitable for different shaped wood
   Cost saving --- Fast temperature raise and higher space utilization takes lower cost than traditional ways.
   Eco-friendly --- This machine does not pollute the environment
   Full-automatic ---UA Unattended Automatic drying process, very easy to handle

Model

DX-3.0III-DX

DX-4.0III-DX

DX-6.0III-DX

DX-8.0III-DX

DX-10.0III-DX

Capacity(CBM)

3.3

4.4

6

8

10.8

Out Dimension

4330*1716

*1806mm

5330*1716

*1806mm

6465*1916

*2006mm

7605*2016

*2006mm

7500*2140

*2240mm

Inside dimension

3600*1500

*1500mm

4600*1500*1500mm

5600*1700

*1700mm

6600*1700

*1700mm

6600*1900

*1900mm

Timber cart (mm)

3000*1100

*1000

4000*1000*1000

5000*1200

*1000

6000*1300

*1100

6000*1500

*1100

Max Length of Wood

3m

4m

5m

6m

6m

High Frequency

6.78MHz

6.78MHz

6.78MHz

6.78MHz

6.78MHz

Input Power

11KW

11KW

30KW

40KW

50KW

output power

10KW

10KW

20KW

30KW

40KW

Vacuum pressure

- 0.092MPa

- 0.092MPa

- 0.092MPa

- 0.092MPa

- 0.092MPa

Weight(kg)

4000

5000

7000

8500

9500

Application

Apply for all wood species
