Quick Details

  • Condition: New
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: DX
  • Model Number: GZ-4.0III-DX
  • After-sales Service Provided: Engineers available to service machinery overseas
  • application: for hardwood softwood dry
  • Specification: 4.4 Cubic meter
  • power supply: electricity
  • high frequency power: 10 KW
  • chamble size: 5330*1716*1806 mm
  • weight: 5000 KGS
  • Vacuum pressure: 8-10 KPa
  • high frequency: 6.78 MPa
  • payment: L\C at sight and T\T
  • Delivery time: 10-20 days

Packaging & Delivery

Packaging Details standard export packing with plastic foam
Delivery Time 15-20 days


HF Vacuum Wood Lumber drying kiln
1.Fast drying with excellent quality,
2.Suitable for all wood.
3.3-20CBM Capacity kiln

Product Description

 High Frequency Vacuum Wood Lumber Drying Kiln,4 cubic meter capacity lumber drying kiln ( Model No.GZ-4.0III-DX)

1:Evenly heating
2:No cracking, no bending

High Frequency Vacuum Wood Dring kiln ( Model No.GZ-4.0III-DX)

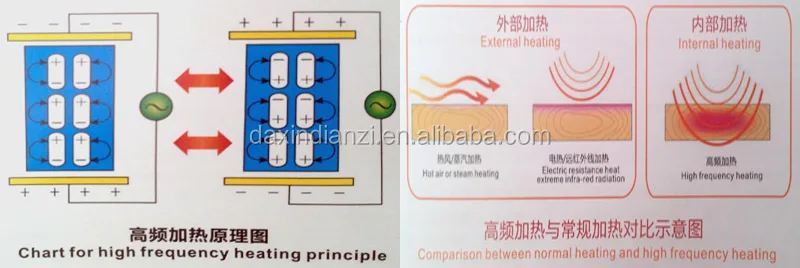

High Frequency Vacuum Wood lumber Drying Kiln is the result of design combining High frequency medium heating technology and Vacuum cryogenic dehydration technology. The working principle of HF medium heating: in the high frequency electrical filed, friction of medium molecule generates heat. Keeping the wood in the frequency electrical filed, thus the inside & outside of wood will be rapidly heating. Meanwhile, vaporizing temperature of water will be decreased under vacuum conditions.

DXHF vacuum timber dryer adopts high frequency drying, inside and outside of wood timber is heated at same time,uniform heating,high speed drying,short timeandgood quality, which may keep the timber nature color, meanwhile,the timber is aerated under the vacuum environment, non-cracking,especially applied for the thick and hard precious wood, wet wood.


Quick heating-It does not require heat conduction,  inside and outside of wood timber is heated at same time;
Fast dehydration-During the heating process, there is staged temprature difference between inside and outside of wood timber this will speed up the water movement from inside wood to outside wood; Drying time is 1/5 compare with tranditional wood drying method.
High quality-there will be no crackings ,bending and color change by taking control of heatiing speed,relative vacuum degree & condensing rate.
Strong adaptability-High frequency-Vacuum drying can realize not only cold drying but hot drying, help to eliminate stress,solidify resin. This applies to dry all kinds of wood
High-usage-Square designed drying box supplies more space utilization. it is suitbale for different shaped wood
Cost saving -Fast tempreture raise and higher sapce utilization takes lower cost than traditional ways.
Eco-friendly -This machine does not pollute the enviroment
Full-automatic -UA UnAttended Automatic drying process,very easy to handle

Working principle

Advantages to other competitors



Customer experience


Packaging & Shipping

  High Frequency Vacuum Wood Lumber Drying Kiln,4 cubic meter capacity lumber drying kiln





Company Information

Daxin Electronic Science And Technology Co., Ltd. is one of the leading manufacture factory of high frequency vacuum wood drying equipment and high frequency generator in Hebei Province,China.

It is the newest drying technology in woodworking machinery industry.

We can supply this machine with capacity from 3 to 20 cubic meter.

It sells well in Japan,Thailand,Vietnam,USA,Uganda,New Zealand,Bulgaria,Iran,Indonesia, etc.

CE,ISO,China patent certificate available.

Looking forward to cooperating with you.Contact me please.

Semele An


Daxin Electronic Science And Technology Co., Ltd

SKYPE semele.an QQ 2267157972 TM:daxindianzi

TEL:86-311-89836929 Email:haibo3(AT)vhaibo.com

ADDRESS:NO.313 Heping East Road,Shijiazhuang,Hebei,China
