high frequency vacuum wood drying kiln equipment

FOB Reference Price:Get Latest Price
US $70,000-75,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vacuum Drying Equipment
Place of Origin:
Hebei, China (Mainland)
Brand Name:
DX
Model Number:
DX-12.0=DX
Voltage:
380V
Power(W):
10-50KW
Dimension(L*W*H):
3-10CBM
Weight:
4000-9500KGS
Certification:
ISO9001
effective valume:
3-10 cubic meter
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1Year
Supply Ability
Supply Ability:
7 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea
Port
Xingang,China
Lead Time :
within 20 days



Product Description

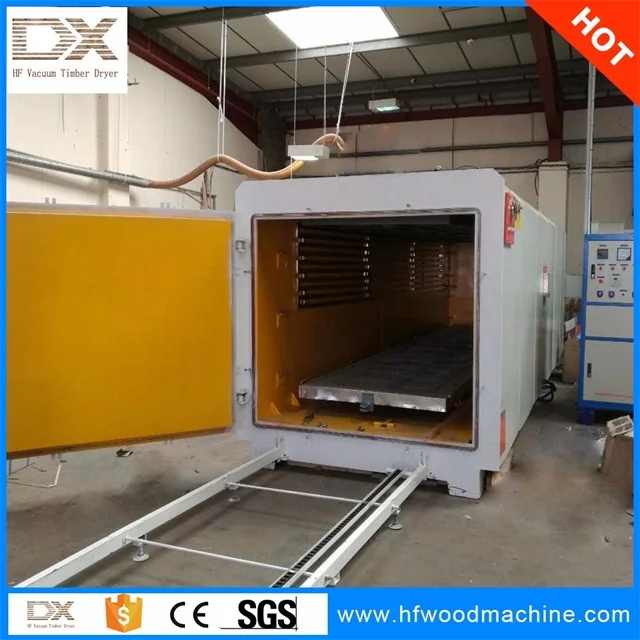

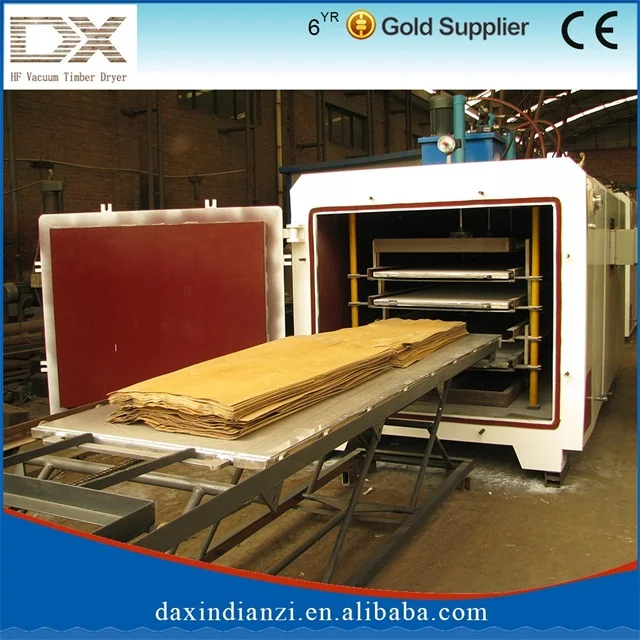

high frequency vacuum timber wood drying kiln equipment and wood dryer



High vacuum timber dryer adopts high frequency drying, inside and outside of wood timber is heated at same time, uniform heating, high speed drying, short time and good quality, which can keep the timber nature color, meanwhile, the timber is aerated under the vacuum environment, non-cracking, especially applied for the thick and hard precious wood, wet wood.

Manual type(square shape), Automatic type(round shape)

Automatic type function

Adopts optical fiber testing temperature, accuracy, it is effectively avoid High frequency interfering measuring instrument.

It adopts weight method and Kiln moisture meter, which can test moisture rate online

The container is handled by professional chemical anticorrosion, no rustiness, sot that save the container maintenance and pollute the timber

Save labor, Automatic feeding and discharging

Built-in cooling system, lower the drying cost

Advantages:

High outturn percentage: it needs not to insert wooden strips in the middle of the timber, there is no cracking, no distortion, no shrinkage in lower temperature drying process.

Environmental protection: no boiler, no dust, no smog, it avoids applying complex procedure and environmental pollution.. bug killed and sterilization.

High efficiency: it is special to dry the large section board and hard dried timber, and hard wood etc. The drying time will be shorten mostly.

Flexible and simple: it is suitable for small batch of production, various kinds of products, rapid turnover.

Model

GZ-3.0III-DX

GZ-4.0III-DX

GZ-6.0III-DX

GZ-8.0III-DX

GZ-10.0III-DX

GZ-12.0III-DX

Capacity

3.3 CBM

4.4 CBM

6.6 CBM

8.64 CBM

10.08 CBM

12.48 CBM

Out Dimension (mm)

L4400

W1716

H1806

L5400

W1716

H1806

L6500

W1916

H2006

L7600

W2000

H2090

L8600

W2000

H2090

L9600

W2000

H2090

Inside dimension (mm)

L3600

W1500

H1500

L4600

W1500

H1500

L5700

W1700

H1700

L6800

W1750

H1750

L7800

W1750

H1750

L8800

W1750

H1750

Timber cart (mm)

L3000

W1100

H1000

L4000

W1000

H1000

L5000

W1200

H1000

L6000

W1200

H1200

L7000

W1200

H1200

L8000

W1300

H1200

Max Length of Wood

3m

4m

5m

6m

7m

8m

High Frequency

6.78MHz

6.78MHz

6.78MHz

6.78MHz

6.78MHz

6.78MHz

Input Power

15KVA

15KVA

30KVA

40KVA

50KVA

50KVA

Oscillation power

10KW

10KW

20KW

30KW

40KW

40KW

Vacuum pressure

-0.093MPa

-0.093MPa

-0.093MPa

-0.093MPa

-0.093MPa

-0.093MPa

Weight(kg)

4000

5000

7000

9000

11000

13000

Packing

20GP

40GP

40HQ

40HQ

40HQ

40HQ

Kiln Temp

Vacuum kiln Drying temperature: ≤90°C

Moisture

From 90% to 6% ,could be setting as per-request

Drying time

2-7 days

Application

Apply for all hardwood species







Company Information



Daxin Electronic Science And Technology Co., Ltd. is one of the leading manufacture factory of high frequency vacuum wood drying equipment and high frequency generator in Hebei Province,China.

It is the newest drying technology in woodworking machinery industry.

We can supply this machine with capacity from 3 to 20 cubic meter.

It sells well in Japan,Thailand,Vietnam,USA,Uganda,New Zealand,Bulgaria etc.

CE,ISO,China patent certificate available.

Looking forward to cooperating with you.Contact me please.
