Quick Details

  • Condition: New
  • Type: Drying Machine
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: DX
  • Model Number: GZ-3.0II-DX
  • Voltage: 380v 50Hz
  • Power(W): 11kw
  • Dimension(L*W*H): 3560*1370*4240mm
  • Weight: 3500kg
  • Certification: ISO
  • Warranty: One Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Type:: electric wood drying kiln
  • Control:: Full-automatic,easy to handle
  • Shape of oven:: Square--Supply higher space utilization
  • Principle:: High frequency heating + Vacuum drying
  • Certificate:: ISO9001:2000
  • Color:: Could be tailor made as per request
  • Note:: Special models could be tailor made as per request
  • Power:: 10 KW, 20 KW, 30 KW, 40 KW
  • Transport:: Could be load by container

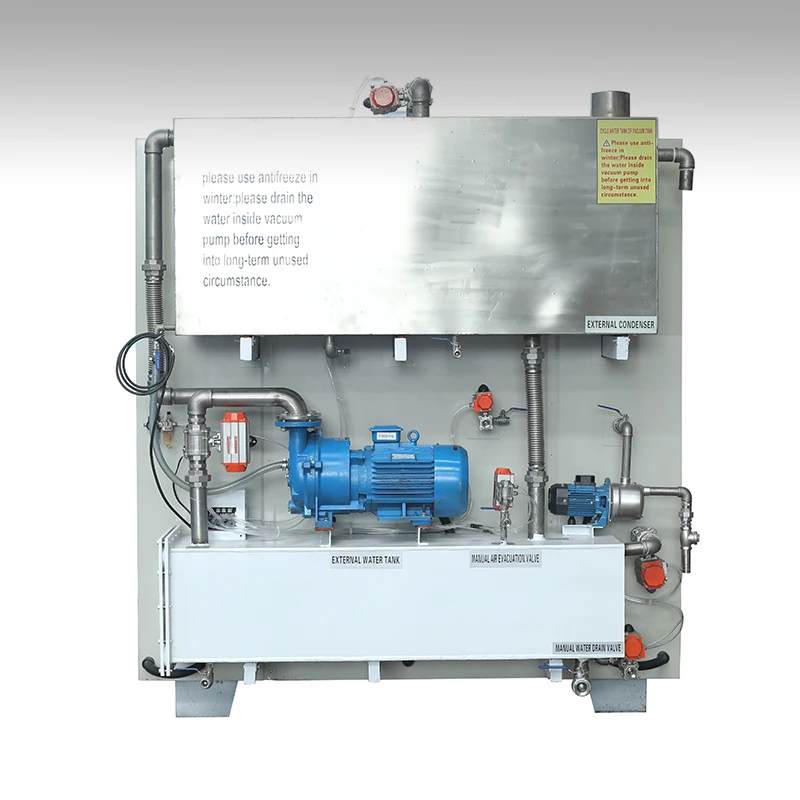

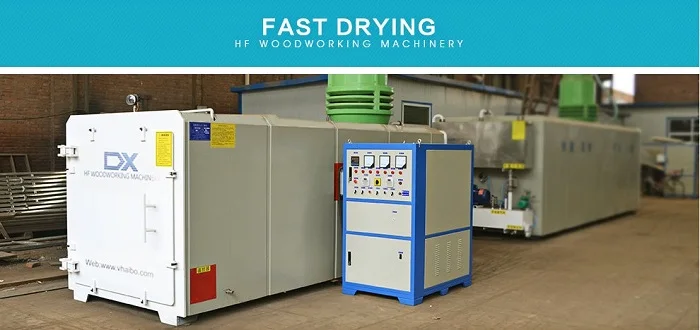

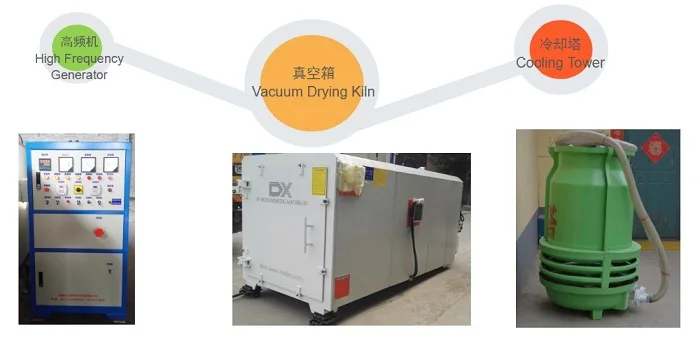

  • Component:: High frequency generator and vacuum drying oven

Packaging & Delivery

Packaging Details plastic and foam packing,fixed by wood pallet, shipped in container by sea
Delivery Time within 20 days

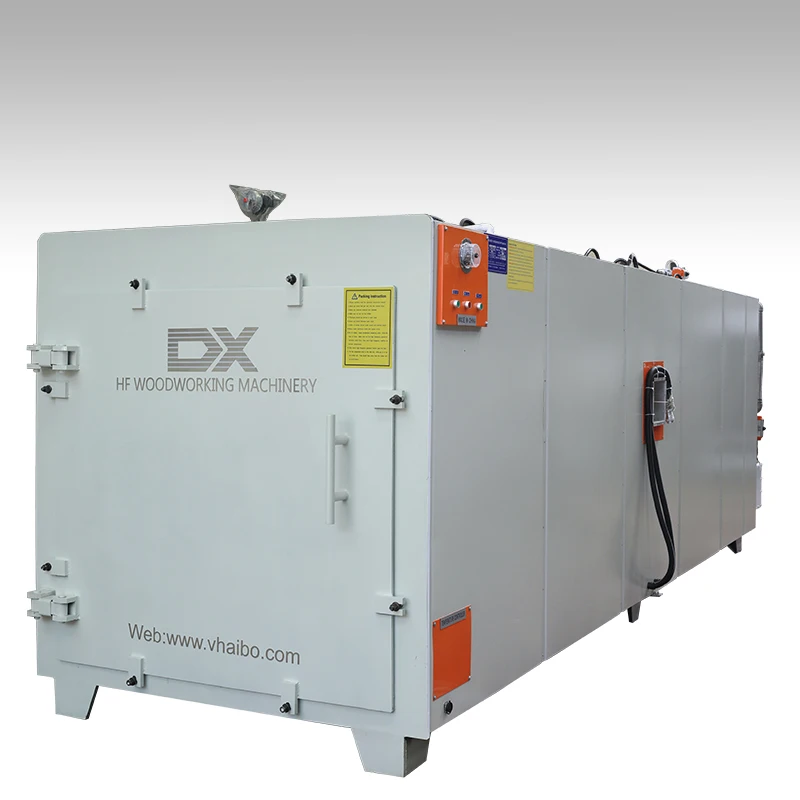

Wood Veneer Dryer  High Frequency Heating And Vacuum Drying

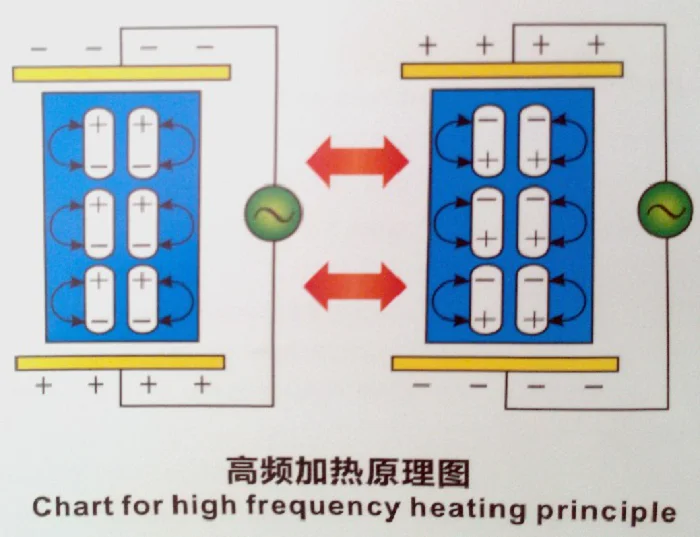

High Frequency Vacuum Wood Veneer Dryer is the result of design combining High frequency medium heating technology and Vacuum cryogenic dehydration technology. The working principle of HF medium heating: in the high frequency electrical filed, friction of medium molecule generates heat. Keeping the wood in the frequency electrical filed, thus the inside & outside of wood will be rapidly heating. Meanwhile, vaporizing temperature of water will be decreased under vacuum conditions. Such measures will save energy cost.



DXHF vacuum wood veneer dryer adopts high frequency drying, inside and outside of wood timber is heated at same time, uniform heating, high speed drying, short time and good quality, which may keep the timber nature color, meanwhile,the timber is aerated under the vacuum environment, non-cracking, especially applied for the thick and hard precious wood, wet wood.



Please Contact  With Us Today For Details!!!!



  • Quick heating--- It does not require heat conduction,  inside and outside of wood timber is heated at same time;
  • Fast dehydration ---During the heating process, there is staged temprature difference between inside and outside of wood timber this will speed up the water movement from inside wood to outside wood;
  • High quality--- there will be no crackings and color changeby taking control of heatiing speed,relative vacuum degree & condensing rate.
  • Strong adaptability---High frequency-Vacuum drying can realize not only cold drying but hot drying, help to eliminate stress,solidify resin. This applies to dry all kinds of wood
  • High-usage--- Square designed drying box supplies more space utilization. it is suitbale for different shaped wood
  • Cost saving --- Fast tempreture raise and higher sapce utilization takes lower cost than traditional ways.
  • Eco-friendly --- This machine does not pollute the enviroment
  • Full-automatic ---UA UnAttended Automatic drying process,very easy to handle



Specifications of high frequency vacuum wood veneer dryer:

  1. operating principle: HF medium heating plus vacuum dewatering
  2. Size: 4m*1.76m*1.76m
  3. Weight: 4,000 kgs
  4. Power input: 13 kw
  5. Drying medium: direct heating
  6. Heating mode: electrical medium
  7. Application: drying all kinds of wood
  8. Temperature range: subject to request
  9. Water evaporation: 90kg/24hours (according to follow conditions: high frequency power 10KW, vacuum degree -0.08,condensing temperature 25 °C)
  10. Types: manual, automatic
  11. Models: 3 m3, 4 m3, 6 m3, 8 m3, 10 m3

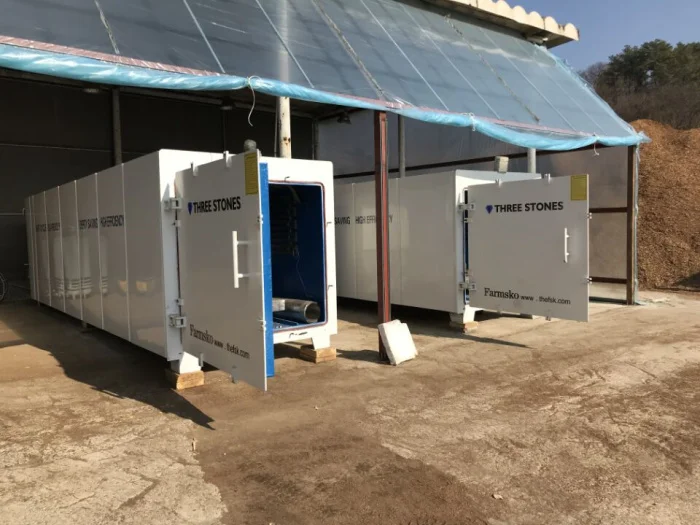

Drying Cases

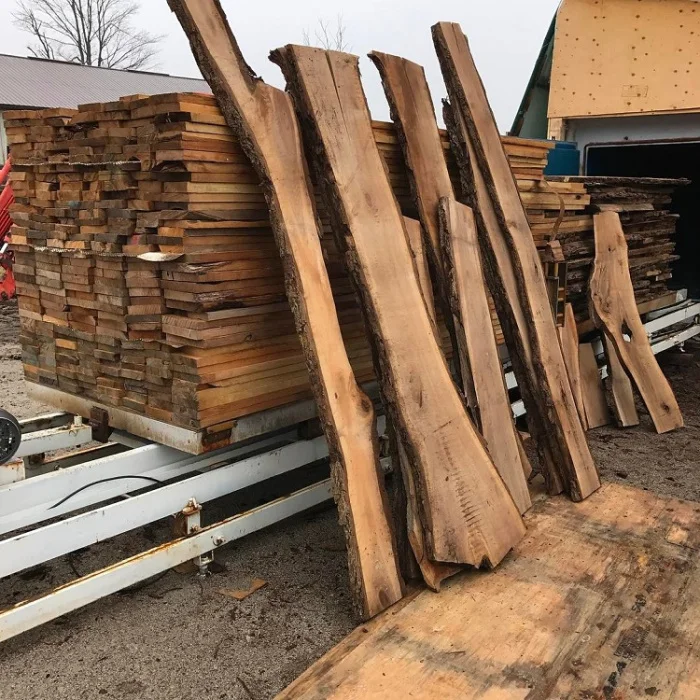

Customer: USA

Wood: Eastern Cottonwood

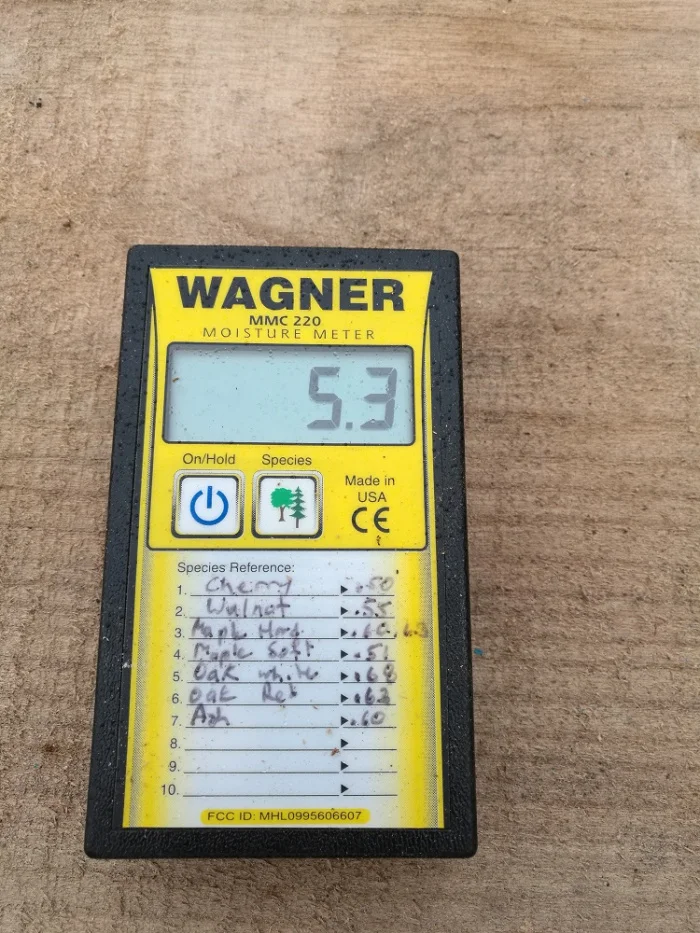

Moisture: 75% - 8% or lower
Thickness: 70mm
Drying time: 4 days

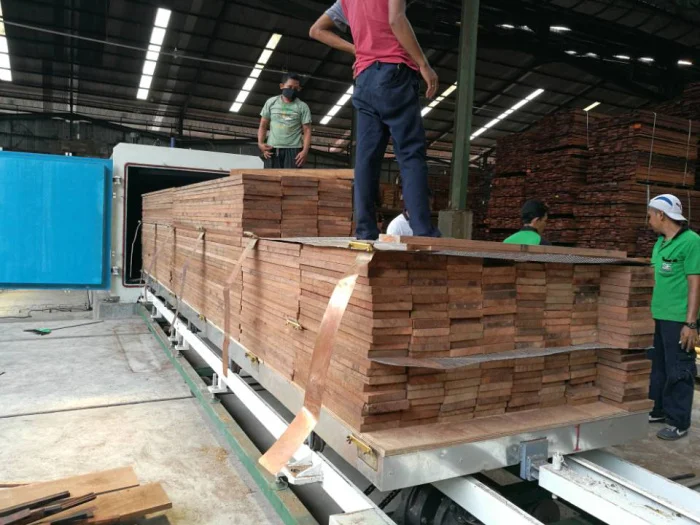

Customer: Indonesia

Wood: Mahogany
Moisture: 60% - 8% or lower
Thickness: 730mm
Drying time: 5 days

Customer: UK

Wood: oak
Moisture: 70% - 10% or lower
Thickness: 50mm
Drying time: 5 days



Customer: Thailand

Wood: Teak
Moisture: 60% - 10% or lower
Thickness: 50mm
Drying time: 4 days





Contact Us for order

Semele
China Haibo International Co.,Ltd
Email:haibo8 @ vhaibo.com

Mob:+86-15081195392 (whatsapp)
Skype:vhaibo8
Website: www.hfwoodmachine.com
