High Frequency Vacuum Wood Dryer

FOB Reference Price:Get Latest Price
US $35,000-40,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hebei, China (Mainland)
Brand Name:
DX
Model Number:
GZ-3.0III-DX
After-sales Service Provided:
Engineers available to service machinery overseas
Type:
wood drying machine
Working principle:
hf heating and vacuum dehydrating
Power:
10 KW
Control:
Full- automatic, PLC control system
Capacity:
3 m3. optional: 4,6,8,10 m3
Heating mode:
elelctrical medium
Applications:
used for drying all kind of wood
Features:
supply high space utilization.no cracking,no bending
Certificate:
ISO 9001:2000
Guarantee:
one year
SupplyAbility
SupplyAbility:
8 Set/Sets per Month
Packaging & Delivery
Packaging Details
plastic and foam packing,fixed by wood pallet, shipped in container by sea
Port
Tianjin,China
Lead Time :
within 20 days

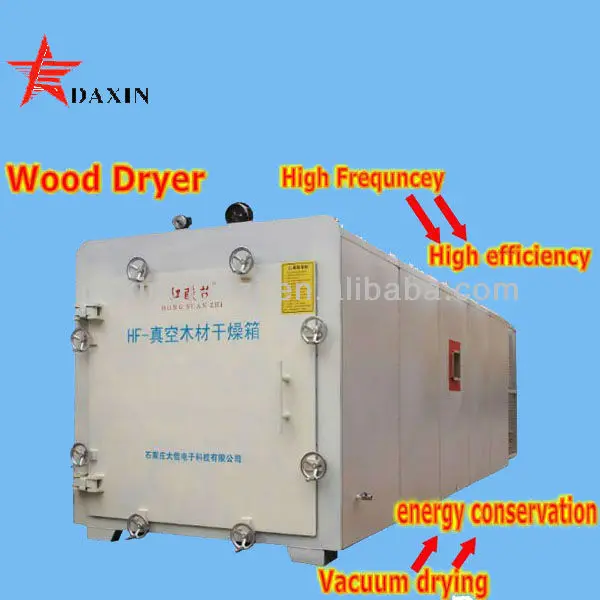

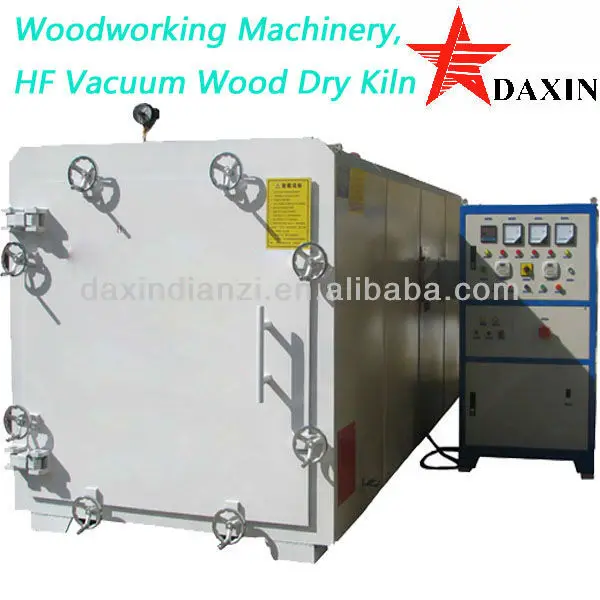

High Frequency Vacuum Wood Dryer, Patented Design ( Model No.GZ-3.0III-DX)





GZ-3.0-III-DX HIGH FREQUENCY-VACUUM WOOD DRYER is a new generation wood drying equipment. This machine is the result of design combining high frequency medium heating technology and vacuum cryogenic dehydration technology, greatly reduced drying time. This equipment adopts PLC programming control, drying chamber equipped with 80mm thick thermal insulating layer and inside & outside two sets stainless steel condensation system, it is more convenient to choose lumber drying procedure and applicable for drying all kinds of wood. The main control valve adopts pneumatic valve technology, this technology have advantages like steady, long serve life and low failure rate. The main advantage of our wood drying equipment: short drying cycle, super quality, cost effective and eco-friendly.

 Advantages of high frequency vacuum wood dryer:

Quick heating--- It does not require heat conduction,  inside and outside of wood timber is heated at same time;
Fast dehydration ---During the heating process, there is staged temprature difference between inside and outside of wood timber this will speed up the water movement from inside wood to outside wood

High quality--- there will be no crackings ,bending and color change by taking control of heatiing speed,relative vacuum degree & condensing rate.
Strong adaptability---High frequency-Vacuum drying can realize not only cold drying but hot drying, help to eliminate stress,solidify resin. This applies to dry all kinds of wood
High-usage--- Square designed drying box supplies more space utilization. it is suitbale for different shaped wood
Cost saving --- Fast tempreture raise and higher sapce utilization takes lower cost than traditional ways.
Eco-friendly --- This machine does not pollute the enviroment
Full-automatic ---UA Unattended Automatic drying process,very easy to handle



Specification of high frequency vacuum wood dryer:

operating principle: HF medium heating plus vacuum dewatering
Size: 4330*1716*1806mm

Power input: 10 kw
Drying medium: direct heating
Heating mode: electrical medium
Application: drying all kinds of wood
Temperature range: subject to request
Water evaporation: 90kg/24hours (according to follow conditions: high frequency power 10KW, vacuum degree -0.08,condensing temperature 25 °C)
Types: manual, automatic
Capacity: 3 m3,  (optional: 4 m3, 6 m3, 8 m3, 10 m)



ModelPowerEffective VolumeApplicationsMax Length of WoodOuter Size
GZ-3.0III-DX10KW3m3all kinds of wood3m4330*1716*1806mm
GZ-4.0III-DX10KW4m3all kinds of wood4m5330*1716*1806mm
GZ-6.0III-DX20KW6m3all kinds of wood5m6465*1916*2006mm
GZ-8.0III-DX30KW8m3all kinds of wood6m7605*2016*2006mm
GZ-10.0III-DX40KW10m3all kinds of wood6m7605*2116*2106mm

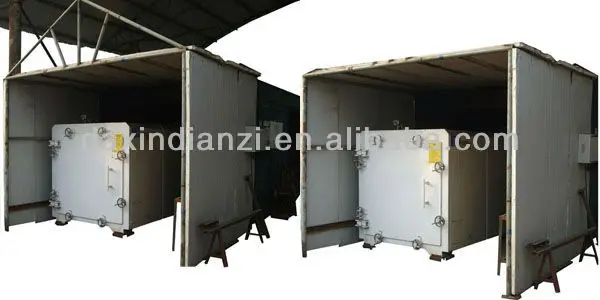

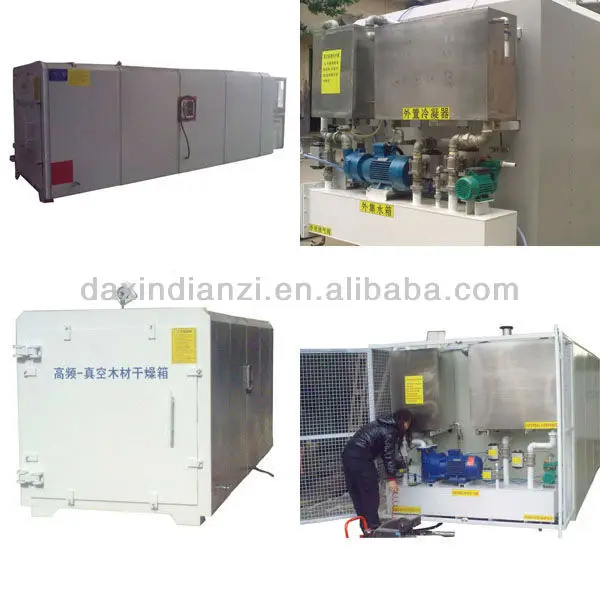

 1.Vacuum Drying Kiln

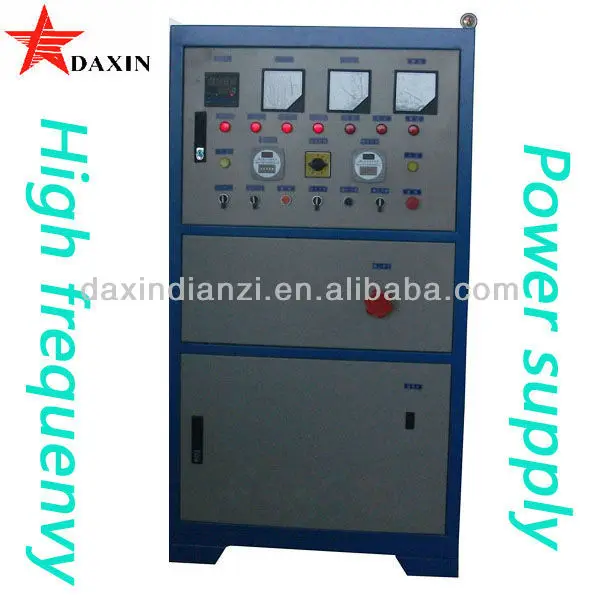

2.High frequency generator

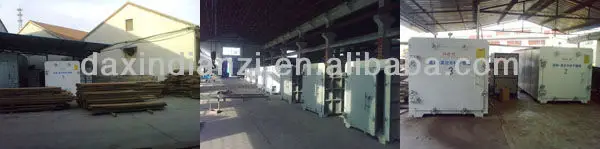

3.Workshop



4.Storage packed

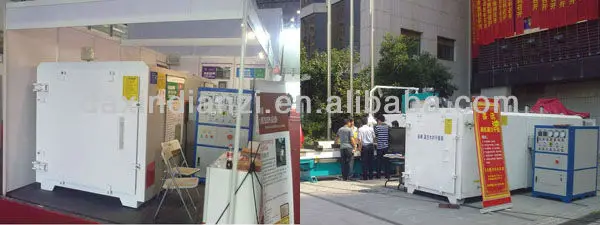

5.Exhibition
