Vacuum Wood Drying kiln with vacuum pumping

FOB Reference Price:Get Latest Price
US $70,000-75,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hebei, China (Mainland)
Brand Name:
DX
Model Number:
GZ-12-DX
After-sales Service Provided:
Engineers available to service machinery overseas
Efficiency power:
10-50kw
effective oven volume:
3-10 cubic meter
Supply Ability
Supply Ability:
7 Set/Sets per Month
Packaging & Delivery
Packaging Details
plastic foam
Port
Xingang,China
Lead Time :
15-20days
Video Description

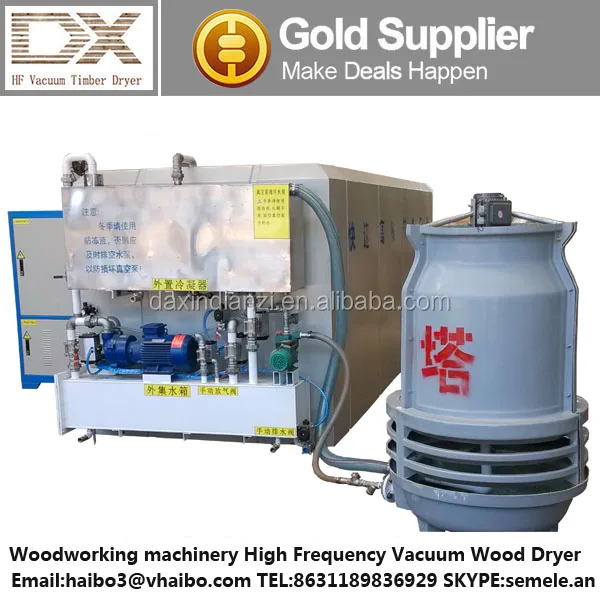

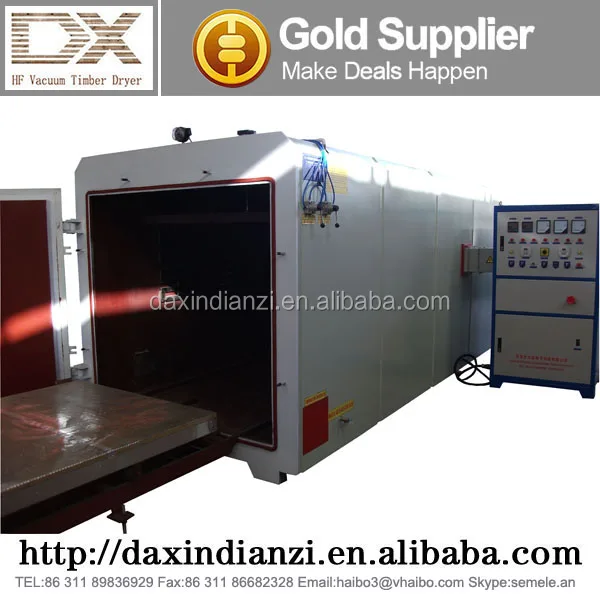

Vacuum Wood Drying kiln with vacuum pumping

1. Fast drying with excellent quality,

2. Suitable for all wood.

3. Effective capacity: 3-20cbm

4. No cracking, no bending

Specification

1. Equipment’s compose: high-frequency generator +vacuum oven +timber cart+ outer orbit

2. Effective capacity: 3-20M3   3. Vacuum: 0 ~ -0.093Mpa

4. Operation mode: continuous system

5. Heating method: dielectric type

6. Suit for using: all kind of wood

7. Power: 10-50kw

8. Drying medium: direct heating

9. Work type: high frequency

10. Application fields: drying of wood

11. Water evaporation capacity: 90KG/24h

12. Weight: 4000-10000kgs   13. Color: customer could chose

Advantages: The High frequency vacuum wood dryer is a fastest way for drying. It has two advantages

1) High frequency heating, more equal, dry faster; 17times faster than wood dust burnt dryer. The drying cycle is mainly 20-30hours.

2) Vacuum condition, dry faster in lower temperature to eliminate the problem of split. It is more suitable for the large square wood material as well as hard board leaved tree material as well as other rare wood material.

Packaging Detail: Standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea

Model

GZ-3.0III-DX

GZ-4.0III-DX

GZ-6.0III-DX

GZ-8.0III-DX

GZ-10.0III-DX

Capacity(CBM)

3.3

4.4

6

8

10.8

Out Dimension

4330*1716

*1806mm

5330*1716

*1806mm

6465*1916

*2006mm

7605*2016

*2006mm

7500*2140

*2240mm

Inside dimension

3600*1500

*1500mm

4600*1500*1500mm

5600*1700

*1700mm

6600*1700

*1700mm

6600*1900

*1900mm

Timber cart (mm)

3000*1100

*1000

4000*1000*1000

5000*1200

*1000

6000*1300

*1100

6000*1500

*1100

Max Length of Wood

3m

4m

5m

6m

6m

High Frequency

6.78MHz

6.78MHz

6.78MHz

6.78MHz

6.78MHz

Input Power

11KW

11KW

30KW

40KW

50KW

output power

10KW

10KW

20KW

30KW

40KW

Vacuum pressure

- 0.092MPa

- 0.092MPa

- 0.092MPa

- 0.092MPa

- 0.092MPa

Weight(kg)

4000

5000

7000

8500

9500
