High Frequency Wood Treatment Plant For Drying Wood

FOB Reference Price:Get Latest Price
$50,000.00 - $55,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Daxin
Model Number:
DX-6.0lll-DX
Item:
China product High Frequency vacuum Wood Drying Kilns For Sale
Type:
Wood Drying Kiln enquipment
Oscillation Power:
20KW
Capacity:
6.6CBM
out dimension:
6500*1916*2006mm
timber cart:
5000*1200*1100mm
Max length of wood:
5m
drying medium:
direct heating
Weight:
7000kg
Application:
All kind of wood drying
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
7 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export packing with plastic film
Port
Tianjin
Lead Time :
20 days after payment
Video Description
Product Description

Product Application

 DAXIN HF viacuum wood dryer,is specially for hardwood and thicker wood.HF can reach the inside of the wood ,drying wood from inside to outside,adding vacuum condition,the water will be sucked out fastly.So HF and vacuum is more better for fast and small capacity wood drying

Main Features

1.Save electricity :As the machine work principle is the machine arrived temperature's upper limit that will keep this state (that under the temperature's lower limit is don't need electricity ) , so don't need work 24 hours.
For simple example if drying process total need 4 days for wood .it will have 2 days is work, will have 2 days is keep equilibrium state (don't need electricity).
2.Save time: As the high frequency vacuum principle that fast drying and no wood bending no wood cracking .
3.Save cost: As the machine is automate control don't need worker so don't pay worker wage. If you long time used it will save electricity, save time and same wage i think it is big amount charge.

Certifications
Detaile Image

Machine Parts

Name:High frequency genertor

Brand:  DAXIN

Original: China

This is the core of this machine, all procedures and main technology are inside, Including PLC,electric valve etc..

Main Features

Name: Tower
Brand:   DAXIN
Original: China
This part is mainly used in hot weather, the main usage is to cool the internal temperature, guarantee the drying speed and quality.

Machine Parts

Name: Condensing tube
Brand: DAXIN
Original:  China
This parts are also to reduce the internal temperature when drying, it will let the steam change into water droplet, to guarantee the drying speed and quality.

Main Features

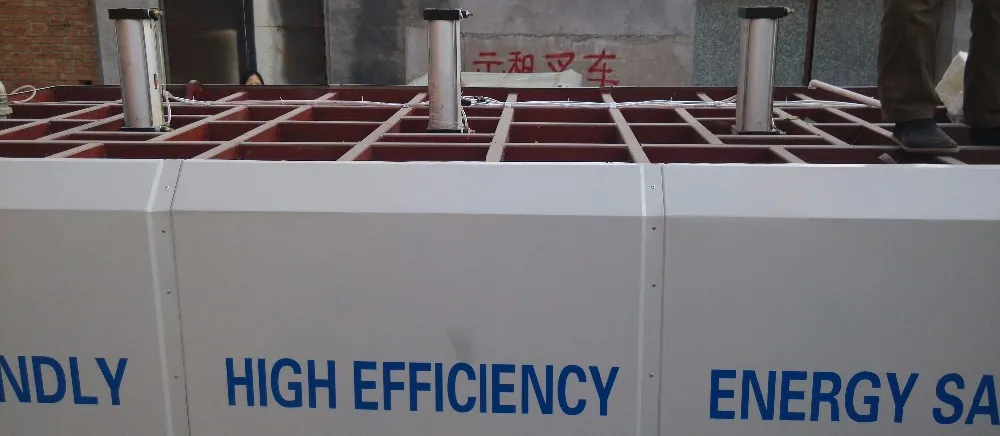

Name: Pressure system
Brand: DAXIN
Original:  China
We have both hydraulic and pneumatic, that means common oil pressure system and air pressure system, they are to prevent the wood becoming bend and crack.

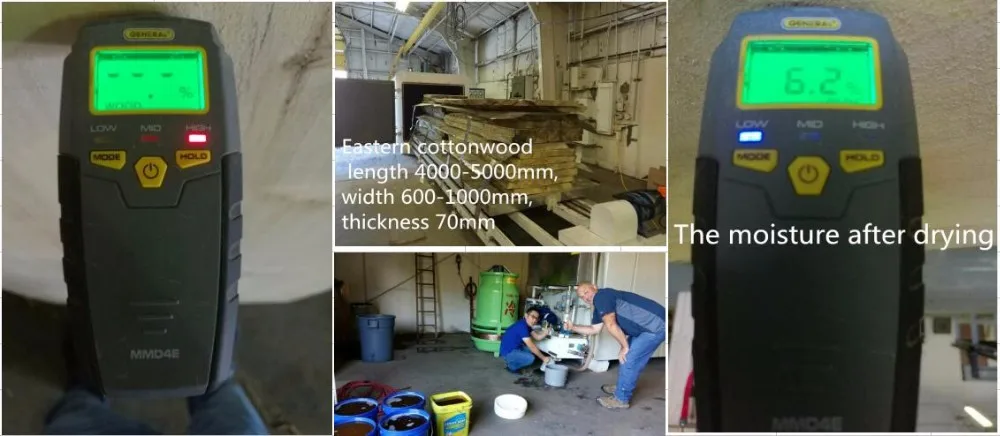

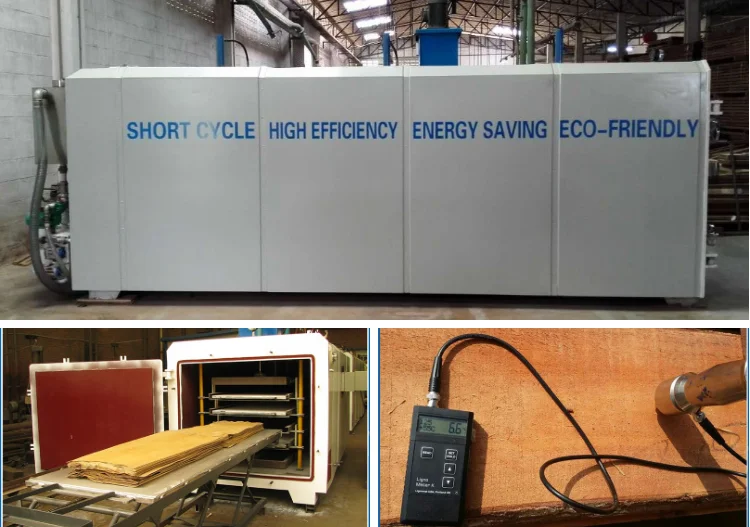

Wood Drying Result

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

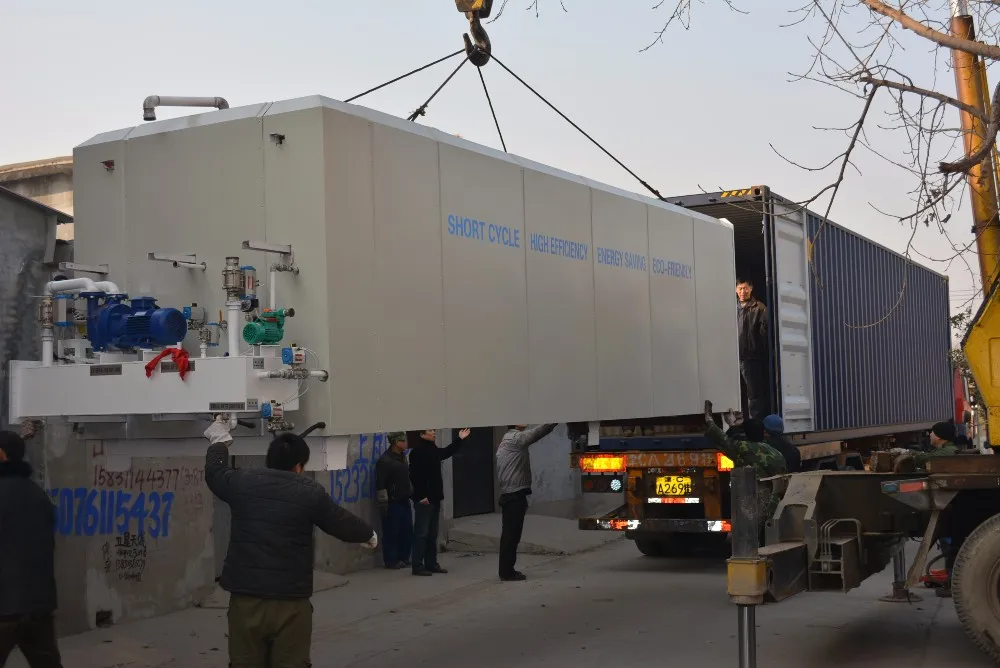

Packing & Delivery
Packaging
Size
40HQ
Weight
5T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
