Easy To Operate Advanced Technology Wood Drying Kiln For Sale

FOB Reference Price:Get Latest Price
$69,800.00 - $75,000.00 / Sets | 1 Set/Sets Wood Drying Kiln For Sale (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Hebei, China
Brand Name:
Model Number:
Easy To Operate Advanced Technology Wood Drying Kiln For Sale
Timber cart:
8000*1300*1200 mm
Max length of wood:
8 m
380V 50HZ 3phase can customize
Working principle:
HF heating and vacuum dehydrating
Used for drying all kinds wood
1 Year
CE /ISO /SGS /National Patent
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month Wood Drying Kiln For Sale
Packaging & Delivery
Packaging Details
Standard export packing, plastic and foam, fixed by wood pallet for wood drying kiln
Tianjin, China
Lead Time :
25-30 working days after the deposit for wood drying kiln
Product Description

Easy To Operate Advanced Technology Wood Drying Kiln For Sale

Advanced Technology High frequency vacuum wood drying kiln is a new generation wood drying equipment.
This machine is the result of design combining high frequency medium heating technology and vacuum cryogenic dehydration technology, greatly reduced drying time.

1. To dry all kinds of wood in board type, slab type, cant type, timber type etc..
2. To dry all kinds of wood in veneer type.
3. To dry all kinds of wood in bending type.

Main Features of Advanced Technology Wood Drying Kiln For Sale

1) Fast speed and high efficiency
When HF starts,the molecules in the dielectric material will be polarized in very short time and heated.HF power only heat polar molecules.It will not heat dielectric material.HF heating is 3-5 times faster than hot steam.So it can save the power and improve the efficiency.

2) Uniform heating
High frequency heating is dielectric heating.It forms electric filed with positive and negative pole.HF power can penetrate material deeply.The waster or glue molecules in the material will get heated themselves by friction among molecules.In this way,they get heated from the core material,much more uniformly.

3) Good applicability
High frequency heating can heat kinds of thickness material,such as 2-3mm venner surface lamination,1000mm thick engineered wood gluing.And different frquency can meet different material requirement.13.56MHZ is suitable for PVC heating and gluing 27.12MHZ is good for line production .

4) Strong controllability
High frequency heating is easy control and suitable for automatic production.Take HF edge gluer for example,HF can equip well with hydraulic system,electrical system can finish the whole process together.It can also well cooperate with last procedure.

5) No damage of wood
In the vacuum environment, moisture can evaporate at lower temperatures ,so vacuum cryogenic dehydration technology avoid high temperature to damage wood .

6)Envirnoment friendly
HF heating doesn't need boiler.There is no dust,no fog,no pollution. DAXIN's products accord with national standard of radiation.

Detailed Images

Main Features

Name: Square vacuum drying oven

High frequency vacuum drying oven, square type design, this is good to keep vacuum and make the best drying quality. And we have National Patent Approval, only us can produce this type in China.

Machine Parts

Name: HF Generator Touch Screen

This is the core of this machine, all procedures and main technology are inside,including PLC,electric valve etc.
Advanced component guarantees customer usage, easy to see and operate.

Main Features

Name: Hydraulic System

Advanced and high strength press system to avoid any bend and break, and to ensure the drying quality.

Machine Parts

Name: Timber Cart

We have both full-auto feeding mode 6/ 8/10/12/15/20 cbm models,and manual feeding model  3/4/5 cbm models, because the smaller loading quantity is enough to be push into the oven by workers. Easy to operate, save much labor cost, and improve working efficiency.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

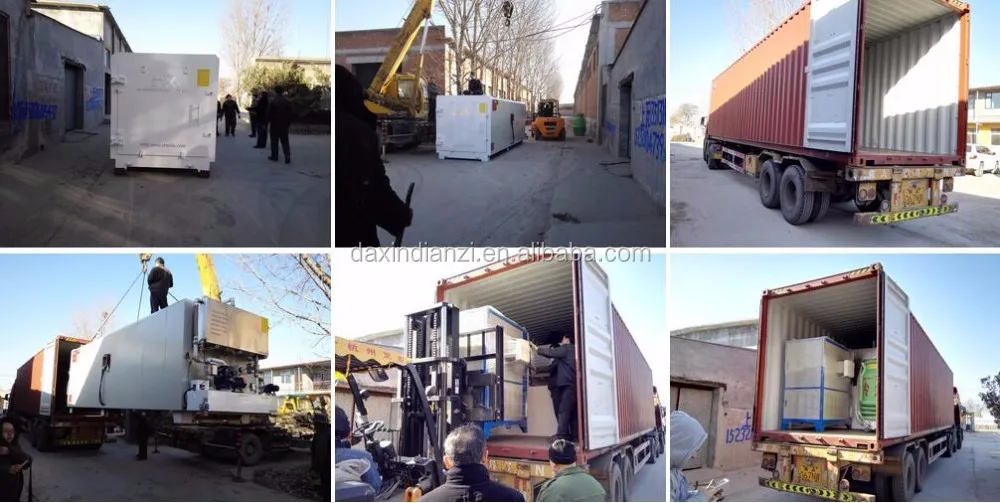

Packing & Delivery
