10CBM high frequency vacuum wood drying machine

FOB Reference Price:Get Latest Price
$65,000.00 - $70,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
DAXIN
Model Number:
DX-10.0III-DX
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month

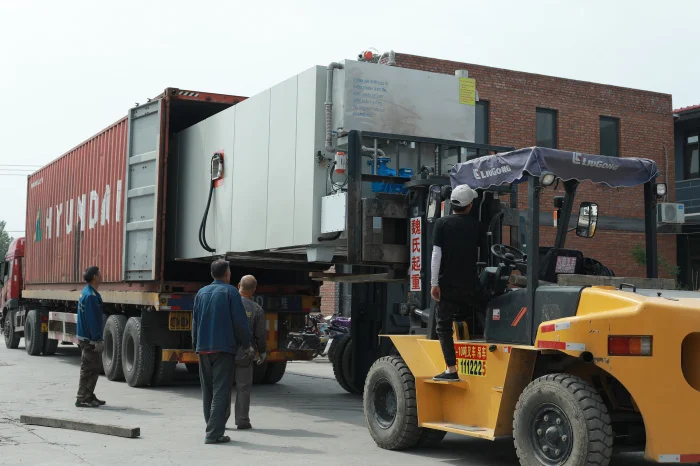

Packaging & Delivery
Packaging Details
Standard export packing, plastic and foam, fixed by wood pallet for wood drying kilns
Port
Tianjin
Lead Time :
30 working days after payment
Video Description
Product Description

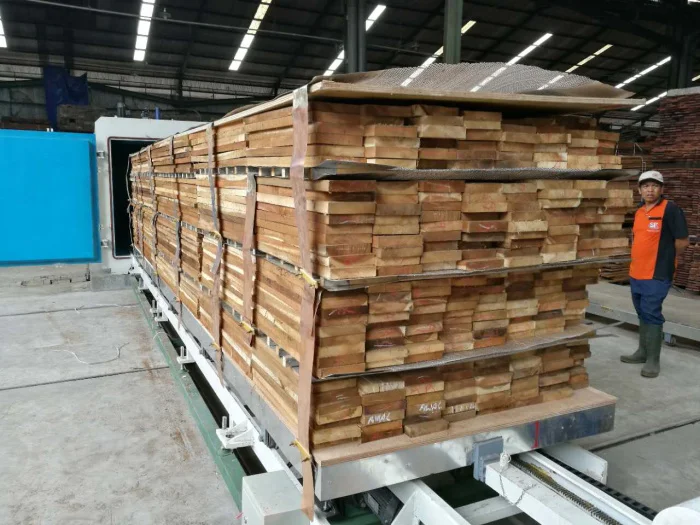

HF vacuum wood dryer

High Frequency Vacuum Wood Machine adopts high frequency drying, inside and outside of wood timber is heated at same time, uniform heating, high speed drying, short time and good quality, which may keep the timber nature color, meanwhile, the timber is aerated under the vacuum environment, non-cracking, especially applied for the thick and hard precious wood, wet wood.

Heating Principle

HF generator is the core of dielectric heating equipment.It applies three phase alternating current to form high frequency oscillation electric field(6.78MHz,13.56MHz,27.12Mhz).Under this high frequency electric field,the molecules like water,glue or PVC will be polarized and form two poles(negative pole and positive pole).The electric field will change pole rapidly meanwhile all the molecules will also move in very high speed.The friction and impact among molecules can make material get heated in short time.Then the water will be vaporized,glue becomes solid and PVC gets softened rapidly.

The Biggest Advantage

1、Penetration heating on the plate is the biggest advantage of High frequency dry,to dry wood inside and outside at the same time.
This high-frequency characteristics will be doomed its mahogany and hardwood lumber drying class has unique advantages.
2、The drying speed several times or ten times that of conventional steam kiln.
3、And because of the precise wood temperature control,it can make the wood not cracking,there would be no buckling deformation,greatly improve the timber material yield,especially for larger than 5 cm thick wood.In total,high-frequency vacuum drying method is the best solution.

Detailed
The machine size
HF vacuum wood dryer
Model No.
HF Generator Power
Effective Capacity
Max Length of Wood
Outer Dimension
DX-3.0III-DX
10 KW
3.30 M³
3M
4400*1716*1806mm
DX-4.0III-DX
10 KW
4.40 M³
4M
5400*1716*1806mm
DX-5.0III-DX
10 KW
5.60 M³
4.6M
5600*1716*1806mm
DX-6.0III-DX
20 KW
6.60 M³
5M
6500*1916*2006mm
DX-8.0III-DX
30 KW
8.64 M³
6M
7600*2000*2090mm
DX-10.0III-DX
40 KW
10.08 M³
7M
8600*2000*2090mm
DX-12.0III-DX
40 KW
12.48 M³
8M
9600*2000*2090mm
DX-13.0III-DX
40KW
13.44 M³
8M
9600*2100*2090mm
Our Survice Team
